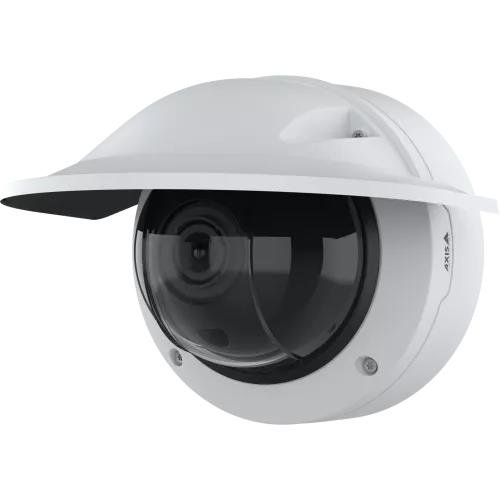

NET CAMERA Q3548-LVE 8MP DOME/02973-001 AXIS

Technical Specifications

• Summary: Axis Q3548-LVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.04 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 104°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Optical zoom: 2x, Focal length range: 6.3 - 13 mm, Detect distance (wide): 88 m
• Vendor Homepage: https://www.axis.com/products/axis-q3548-lve
• Name: NET CAMERA Q3548-LVE 8MP DOME/02973-001 AXIS
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling/wall
• Product colour: Black/White
• LED indicators: Yes
• Housing material: Aluminium/Plastic
• Protection features: Impact resistant/Vandal proof
• International Protection (IP) code: IP66, IP6K9K
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor & outdoor
• PTZ control: Yes
• Auto-tracking: Yes
• Tour recording: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Certification: UL, FCC, ICES, CE, KC, VCCI, RCM, WEEE
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.04
• Angle of rotation: 360
• Lens viewing angle, horizontal: 104
• Lens viewing angle, vertical: 56.7
• Tilt angle range: -42 - 80
• Pan range: -180 - 180
• Camera pixel size: 2.9
• Camera shutter speed: 1/67500- 2
• Number of sensors: 1
• Optical sensor size: 1/1.2
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 2
• Number of lenses: 1
• Focal length range: 6.3 - 13
• Auto focus: Yes
• Maximum aperture number: 2.9
• Minimum aperture number: 1.6
• Closest focusing distance: 0.5
• Detect distance (tele): 178
• Detect distance (wide): 88
• Identify distance (tele): 18
• Identify distance (wide): 9
• Observe distance (tele): 71
• Observe distance (wide): 35
• Recognize distance (tele): 36
• Recognize distance (wide): 18
• Night vision: Yes
• Night vision distance: 60
• LED type: IR
• Infra-red wavelength: 850
• Maximum resolution: 3840 x 2160
• Total megapixels: 8
• Video formats supported: AV1/AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
• Supported graphics resolutions: 1280 x 800 (WXGA)/2688 x 1512/3840 x 2160
• Frame rate: 60
• Video streaming: Yes
• Noise reduction: Yes
• Noise reduction technology: 2D noise reduction,3D noise reduction
• Gain control type: Auto
• Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
• Flip & mirror: Yes
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
• Image stabilizer: Yes
• Text caption overlay: Yes
• Audio system: 2-way
• Audio system full duplex: Yes
• Audio formats supported: AAC-LC/G.711/G.726/LPCM/OPUS/PCM
• Signal-to-Noise Ratio (SNR): 55
• Audio detection: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet/Gigabit Ethernet
• Networking standards: IEEE 802.1AE/IEEE 802.1x/IEEE 802.3at
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6,
• Streaming method: Multicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 8000
• RAM capacity: 4000
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Terminal block port: Yes
• Active tampering alarm: Yes
• Alert notification type: E-mail
• Human and vehicle targets classification: Yes
• Intelligent Video Surveillance (IVS) system features: Line crossing detection/Moving object
• Privacy protection: Yes
• Security algorithms: 256-bit AES-XTS/EAP-TLS/HTTPS/MSCHAPv2/PEAP/TLS
• Power source type: PoE
• Power consumption (typical): 6.3
• Power consumption (max): 25.5
• Operating temperature (T-T): -50 - 55
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Width: 239
• Depth: 211
• Height: 183
• Weight: 2310
• Compliance certificates: REACH/RoHS/Trade Agreements Act (TAA)
• Number of cameras: 1
• Sun shield included: Yes
• Manual: Yes
• Doesnt contain: CFR/PVC/BFR
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01161
• Unit Calculated Weight: 3
