NET CAMERA Q6086-E NM/PTZ DOME 03188-301 AXIS

NET CAMERA Q6086-E NM/PTZ DOME 03188-301 AXIS
NET CAMERA Q6086-E NM/PTZ DOME 03188-301 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
214,225ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 460680
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis Q6086-E PTZ. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Form factor: Dome. Minimum illumination: 0.009 lx, Lens viewing angle, horizontal: 61.5°, Lens viewing angle, vertical: 37.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 32x, Digital zoom: 12x, Focal length range: 6.64 - 225.5 mm
  • Vendor Homepage: https://www.axis.com/products/axis-q6086-e
  • Name: NET CAMERA Q6086-E NM/PTZ DOME 03188-301 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Aluminium/Polycarbonate (PC)
  • Protection features: Wear resistant
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • PTZ modes: Preset point
  • Auto-tracking: Yes
  • Tour recording: Yes
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Certification: CE, FCC, ICES, KC, VCCI
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.009
  • Lens viewing angle, horizontal: 61.5
  • Lens viewing angle, vertical: 37.3
  • Tilt angle range: -90 - 0
  • Tilt speed: 500
  • Pan range: 0 - 360
  • Pan speed: 500
  • Camera pixel size: 2.9
  • Camera shutter speed: 1/49500 - 2
  • Number of sensors: 1
  • Optical sensor size: 1/2
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 32
  • Digital zoom: 12
  • Number of lenses: 1
  • Focal length range: 6.64 - 225.5
  • Auto focus: Yes
  • Maximum aperture number: 5.1
  • Minimum aperture number: 1.7
  • Closest focusing distance: 3
  • Detect distance (tele): 3118.4
  • Detect distance (wide): 92.6
  • Identify distance (tele): 311.8
  • Identify distance (wide): 9.3
  • Observe distance (tele): 1237.5
  • Observe distance (wide): 36.7
  • Recognize distance (tele): 623.6
  • Recognize distance (wide): 18.5
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Video compression formats: H.262/H.264/H.265/M-JPEG/MPEG4
  • Supported graphics resolutions: 2688 x 1512/640 x 360
  • Frame rate: 60
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Text caption overlay: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet/Gigabit Ethernet
  • Networking standards: IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3bt
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4
  • Streaming method: Multicast
  • Card reader integrated: Yes
  • Compatible memory cards: SD/SDHC/SDXC
  • Flash memory: 8192
  • RAM capacity: 4096
  • Ethernet LAN (RJ-45) ports: 1
  • Password protection: Yes
  • Alert notification type: E-mail
  • HTTPS encryption: Yes
  • Human and vehicle targets classification: Yes
  • Intelligent Video Surveillance (IVS) system features: Abandoned object/Crossing line
  • Pixel counter: Yes
  • Security algorithms: HTTPS/TLS
  • Power source type: PoE
  • Power consumption (typical): 10
  • Power consumption (max): 51
  • Operating temperature (T-T): -50 - 55
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 264
  • Depth: 264
  • Height: 279
  • Weight: 4100
  • Compliance certificates: REACH/RoHS/Trade Agreements Act (TAA)
  • Number of cameras: 1
  • Doesnt contain: CFR/PVC/BFR
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.03115
  • Unit Calculated Weight: 5.3
Specifications
Alert notification typeE-mail
Auto focusYes
Auto-trackingYes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Camera pan controlYes
Camera pixel size2.9
Camera shutter speed1/49500 - 2
Camera tilt controlYes
Card reader integratedYes
CertificationCE, FCC, ICES, KC, VCCI
Closest focusing distance3
Compatible memory cardsSD/SDHC/SDXC
Compliance certificatesREACH/RoHS/Trade Agreements Act (TAA)
Connectivity technologyWired
Day/night modeYes
Depth264
Detect distance (tele)3118.4
Detect distance (wide)92.6
Digital zoom12
Doesn\'t containCFR/PVC/BFR
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8192
Focal length range6.64 - 225.5
Fog proofYes
Form factorDome
Frame rate60
Height279
Housing materialAluminium/Polycarbonate (PC)
HTTPS encryptionYes
Human and vehicle targets classificationYes
Identify distance (tele)311.8
Identify distance (wide)9.3
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Infrared (IR) cut-off filterYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object/Crossing line
International Protection (IP) codeIP66
Lens viewing angle, horizontal61.5
Lens viewing angle, vertical37.3
Maximum aperture number5.1
Maximum resolution2688 x 1512
Minimum aperture number1.7
Minimum illumination0.009
Mounting typeCeiling
Networking standardsIEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3bt
Noise reductionYes
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras1
Number of lenses1
Number of sensors1
Observe distance (tele)1237.5
Observe distance (wide)36.7
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-50 - 55
Optical sensor size1/2
Optical zoom32
Pan range0 - 360
Pan speed500
Password protectionYes
Pixel counterYes
Placement supportedOutdoor
Power consumption (max)51
Power consumption (typical)10
Power source typePoE
Preset pointsYes
Product colourBlack/White
Progressive scanYes
Protection featuresWear resistant
PTZ controlYes
PTZ modesPreset point
RAM capacity4096
Recognize distance (tele)623.6
Recognize distance (wide)18.5
Security algorithmsHTTPS/TLS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis Q6086-E PTZ. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Form factor: Dome. Minimum illumination: 0.009 lx, Lens viewing angle, horizontal: 61.5°, Lens viewing angle, vertical: 37.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 32x, Digital zoom: 12x, Focal length range: 6.64 - 225.5 mm
Supported graphics resolutions2688 x 1512/640 x 360
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4
Text caption overlayYes
Tilt angle range-90 - 0
Tilt speed500
Total megapixels4
Tour recordingYes
TypeIP security camera
Video compression formatsH.262/H.264/H.265/M-JPEG/MPEG4
Video streamingYes
Weight4100
Wide Dynamic Range (WDR)Yes
Width264
Zoom capabilityYes
Specs
Category CodeFNC
Description

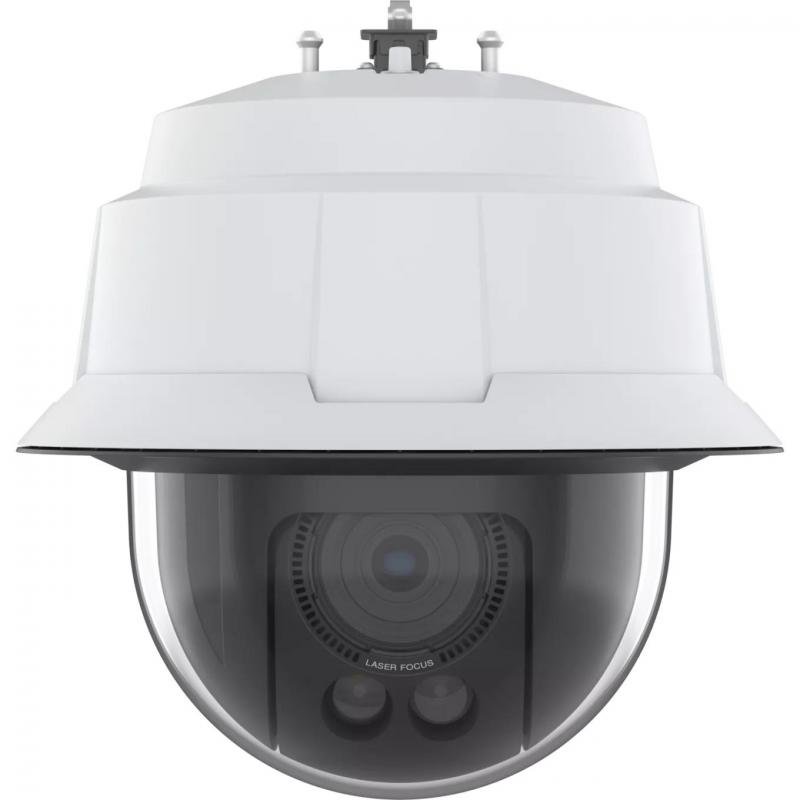

AXIS Q6086-E PTZ Camera

This extremely light-sensitive, AI-powered camera offers excellent image quality and laser focus for precise focus every time. It supports AV1 codec and provides accelerated performance to run impressive analytics applications on the edge.

Superior details and light sensitivity

Built on ARTPEC-9, this next-generation outdoor camera offers outstanding video quality in 4 MP at 60 fps. It features an extremely light-sensitive ½” sensor to deliver clear, bright images and better handling of shadows. With 34x optical zoom, you can easily follow fast-moving objects. Plus, laser focus ensures precise focus every time. Lightfinder 2.0 and Forensic WDR deliver true colors and great detail in challenging light or near darkness. Furthermore, Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements.

Powerful, next-generation analytics

Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It also delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. AXIS Object Analytics comes preinstalled to detect, classify, track, and count humans, vehicles, and different types of vehicles. It also comes with AXIS Image Health Analytics. Autotracking 2 with click-and-track functionality enables active object tracking, and an orientation aid enables dynamic text overlays. What’s more, chameleon masking safeguards privacy.

Robust with strong cybersecurity

Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. With IP66-, IK10-, NEMA 4x, and NEMA TS2-ratings, it’s both impact and weather-resistant. The camera’s operating temperature is -50 to 50 °C (-58 to 122 °F), while Arctic Temperature Control allows it to power up at as low as -40 °C (-40 °F). With shock detection, you'll be informed if the camera has been hit. And defog functionality ensures clear images despite fog or smog. Furthermore, it offers support for fiber connection, PoE, audio, four I/O ports, and smart restart with the included midspan.




NameNET CAMERA Q6086-E NM/PTZ DOME 03188-301 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/b9405e30-dfc2-45dc-9bc6-1f517014bcfa.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/b9405e30-dfc2-45dc-9bc6-1f517014bcfa.Jpeg
Unit Calculated Volume0.03115
Unit Calculated Weight5.3
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q6086-e
