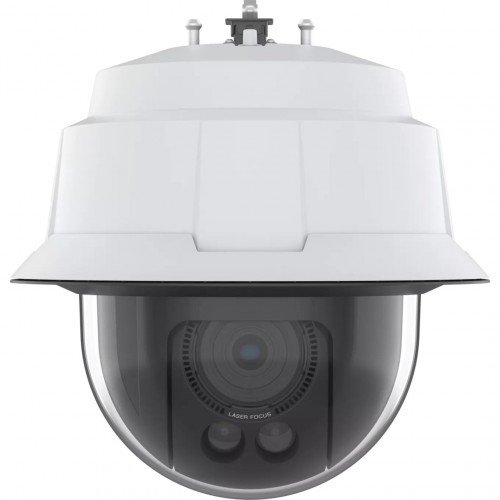

NET CAMERA Q6088-E PTZ/DOME 03190-002 AXIS

Technical Specifications

• Summary: Axis Q6088-E PTZ. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Form factor: Dome. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 60.8°, Lens viewing angle, vertical: 36.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 32x, Digital zoom: 12x, Focal length range: 6.64 - 225.5 mm
• Vendor Homepage: https://www.axis.com/products/axis-q6088-e
• Name: NET CAMERA Q6088-E PTZ/DOME 03190-002 AXIS
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: Black/White
• Housing material: Aluminium/Polycarbonate (PC)
• Protection features: Wear resistant
• International Protection (IP) code: IP66
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• PTZ modes: Preset point
• Auto-tracking: Yes
• Tour recording: Yes
• Preset points: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Certification: CE, FCC, ICES, KC, VCCI
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.01
• Lens viewing angle, horizontal: 60.8
• Lens viewing angle, vertical: 36.5
• Tilt angle range: -90 - 0
• Tilt speed: 500
• Pan range: 0 - 360
• Pan speed: 500
• Camera pixel size: 2.9
• Camera shutter speed: 1/59000 - 2
• Number of sensors: 1
• Optical sensor size: 1/2
• Progressive scan: Yes
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 32
• Digital zoom: 12
• Number of lenses: 1
• Focal length range: 6.64 - 225.5
• Auto focus: Yes
• Maximum aperture number: 5.1
• Minimum aperture number: 1.7
• Closest focusing distance: 3
• Detect distance (tele): 3118.4
• Detect distance (wide): 92.6
• Identify distance (tele): 311.8
• Identify distance (wide): 9.3
• Observe distance (tele): 1237.5
• Observe distance (wide): 36.7
• Recognize distance (tele): 623.6
• Recognize distance (wide): 18.5
• Maximum resolution: 3840 x 2160
• Video compression formats: H.262/H.264/H.265/M-JPEG/MPEG4
• Supported graphics resolutions: 3840 x 2160/640 x 360
• Frame rate: 60
• Video streaming: Yes
• Noise reduction: Yes
• Noise reduction technology: 2D noise reduction,3D noise reduction
• Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
• Text caption overlay: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet/Gigabit Ethernet
• Networking standards: IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3bt
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4
• Streaming method: Multicast
• Card reader integrated: Yes
• Compatible memory cards: SD/SDHC/SDXC
• Flash memory: 8192
• RAM capacity: 4096
• Ethernet LAN (RJ-45) ports: 1
• Password protection: Yes
• Alert notification type: E-mail
• HTTPS encryption: Yes
• Human and vehicle targets classification: Yes
• Intelligent Video Surveillance (IVS) system features: Abandoned object/Crossing line
• Pixel counter: Yes
• Security algorithms: HTTPS/TLS
• Power source type: PoE
• Power consumption (typical): 11.7
• Power consumption (max): 51
• Operating temperature (T-T): -50 - 55
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Width: 264
• Depth: 264
• Height: 279
• Weight: 4100
• Compliance certificates: REACH/RoHS/Trade Agreements Act (TAA)
• Number of cameras: 1
• Doesnt contain: CFR/PVC/BFR
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.03348
• Unit Calculated Weight: 6
