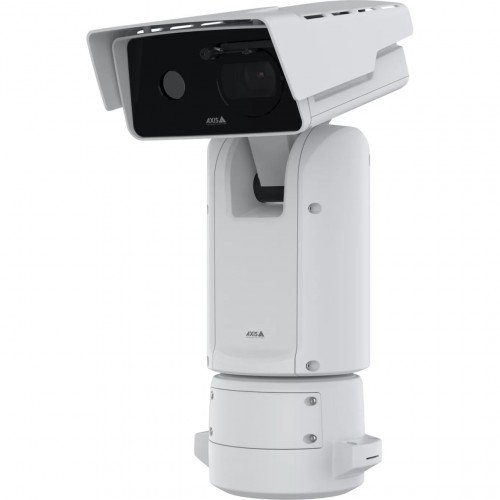

NET CAMERA Q8752-E MK II 35MM/30FPS 03053-001 AXIS

Technical Specifications

• Summary: Axis Q8752-E Mk II 35 mm 30 fps. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Product colour: Black, White, Form factor: Box, Housing material: Aluminium, Glass, Thermoplastic. Minimum illumination: 0.01 lx, Vertical field of view (thermal module): 12.8°, Horizontal field of view (thermal module): 17°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Effective sensor resolution (thermal module): 640 x 480 pixels. Optical zoom: 32x, Digital zoom: 12x, Focal length range: 4.3 - 137.6 mm
• Vendor Homepage: https://www.axis.com/products/axis-q8752-e-mk-ii
• Name: NET CAMERA Q8752-E MK II 35MM/30FPS 03053-001 AXIS
• Category Code: FNC
• Model: 03053-001
• Form factor: Box
• Product colour: Black/White
• Housing material: Aluminium/Glass/Thermoplastic
• International Protection (IP) code: IP66
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor & outdoor
• PTZ control: Yes
• Auto-tracking: Yes
• Tour recording: Yes
• Preset points: Yes
• Thermal module: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Thermal sensitivity (NETD): 50
• Certification: UL/cUL, CE, KC, VCCI, RCM
• Minimum illumination: 0.01
• Horizontal field of view (thermal module): 17
• Vertical field of view (thermal module): 12.8
• Lens viewing angle, horizontal: 58.5
• Lens viewing angle, vertical: 35
• Tilt angle range: -90 - 45
• Tilt speed: 65
• Pan range: 0 - 360
• Pan speed: 120
• Camera shutter speed: 1/66500 - 2
• Number of Privacy masking areas: 32
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Effective sensor resolution (thermal module): 640 x 480
• Progressive scan: Yes
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 32
• Digital zoom: 12
• Number of lenses: 1
• Focal length range: 4.3 - 137.6
• Auto focus: Yes
• Maximum aperture number: 4
• Minimum aperture number: 1.4
• Aperture number (thermal module): 1.2
• Closest focusing distance: 31
• Fixed focal length: 35
• Maximum resolution: 1920 x 1080
• Video formats supported: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
• Frame rate: 60
• Video streaming: Yes
• Bit rate control: Variable Bit Rate (VBR)
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
• Image stabilizer: Yes
• Text caption overlay: Yes
• Audio system: 1-way
• Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
• Audio detection: Yes
• Sample rates: 8 - 48
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet/Gigabit Ethernet
• Networking standards: IEEE 802.1AE/IEEE 802.1x
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/ DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6,
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 512
• Internal memory: 2000
• Microphone in: Yes
• Terminal block port: Yes
• Pixel counter: Yes
• Privacy protection: Yes
• Video motion detection: Yes
• Power source type: DC
• Power consumption (typical): 25
• Power consumption (max): 185
• Operating temperature (T-T): -40 - 60
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Width: 229
• Depth: 360
• Height: 581
• Weight: 14900
• Compliance certificates: REACH/RoHS/Trade Agreements Act (TAA)
• Number of cameras: 1
• Manual: Yes
• Wiper included: Yes
• Doesnt contain: PVC
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.07605
• Unit Calculated Weight: 16.8
