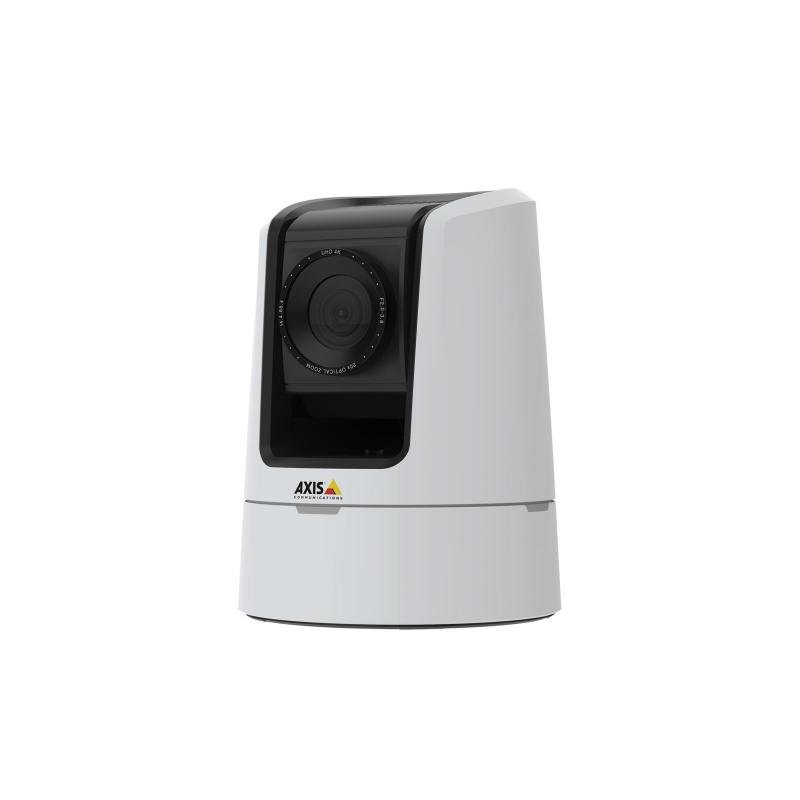

NET CAMERA V5938 50HZ IP/2160P 02022-002 AXIS

NET CAMERA V5938 50HZ IP/2160P 02022-002 AXIS
NET CAMERA V5938 50HZ IP/2160P 02022-002 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3840 x 2160
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
214,225ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 360431
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02022-002. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Housing material: Plastic. Minimum illumination: 0.1 lx, Lens viewing angle, horizontal: 70.2°, Lens viewing angle, vertical: 39.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.5 mm (1 / 2.5"). Optical zoom: 20x, Digital zoom: 12x, Focal length range: 4.4 - 88 mm
  • Vendor Homepage: https://www.axis.com/products/axis-v5938
  • Name: NET CAMERA V5938 50HZ IP/2160P 02022-002 AXIS
  • Category Code: FNC
  • Mounting type: Ceiling/wall
  • Product colour: Black/White
  • Housing material: Plastic
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • PTZ control: Yes
  • Preset points: Yes
  • Day/night mode: Yes
  • Certification: EN 55032 Class A, EN 55024, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 24, CISPR 35, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, CA
  • Minimum illumination: 0.1
  • Lens viewing angle, horizontal: 70.2
  • Lens viewing angle, vertical: 39.5
  • Tilt angle range: -20 - 90
  • Tilt speed: 90
  • Pan range: -170 - 170
  • Pan speed: 100
  • Camera shutter speed: 1/10000 - 1
  • Number of sensors: 1
  • Optical sensor size: 1/2.5
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 20
  • Digital zoom: 12
  • Number of lenses: 1
  • Focal length range: 4.4 - 88
  • Auto focus: Yes
  • Maximum aperture number: 3.8
  • Minimum aperture number: 2
  • Maximum resolution: 3840 x 2160
  • Video formats supported: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Supported video modes: 2160p
  • Frame rate: 60
  • Video streaming: Yes
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Image quality adjustment: Brightness/Sharpness
  • Image stabilizer: Yes
  • Audio system: 2-way
  • Audio formats supported: ADPCM/G.711/G.726/LPCM/PCM
  • Sample rate: 48
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet/Gigabit Ethernet
  • Networking standards: IEEE 802.1x
  • Supported network protocols: IPv4/v6, HTTP, HTTP/2, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, MQTT, Syslog
  • Quality of Service (QoS) support: Yes
  • Streaming method: Multicast
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 512
  • Ethernet LAN (RJ-45) ports: 1
  • RS-232 ports: 1
  • Microphone in: Yes
  • HDMI ports quantity: 1
  • Terminal block port: Yes
  • DC-in jack: Yes
  • Password protection: Yes
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Pixel counter: Yes
  • Power source type: DC
  • Power consumption (typical): 17.5
  • Power consumption (max): 20
  • Operating temperature (T-T): 0 - 40
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 85
  • Storage relative humidity (H-H): 5 - 95
  • Width: 136
  • Depth: 136
  • Height: 180
  • Weight: 1500
  • Number of cameras: 1
  • Mounting kit: Yes
  • Manual: Yes
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0165
  • Unit Calculated Weight: 2.49
Specifications
Audio detectionYes
Audio formats supportedADPCM/G.711/G.726/LPCM/PCM
Audio system2-way
Auto focusYes
Back Light Compensation (BLC)Yes
Camera shutter speed1/10000 - 1
CertificationEN 55032 Class A, EN 55024, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 24, CISPR 35, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, CA
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
DC-in jackYes
Depth136
Digest authenticationYes
Digital zoom12
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory512
Focal length range4.4 - 88
Fog proofYes
Frame rate60
Harmonized System (HS) code85258900
HDMI ports quantity1
Height180
Housing materialPlastic
HTTPS encryptionYes
Image quality adjustmentBrightness/Sharpness
Image stabilizerYes
IP address filteringYes
Lens viewing angle, horizontal70.2
Lens viewing angle, vertical39.5
ManualYes
Maximum aperture number3.8
Maximum resolution3840 x 2160
Microphone inYes
Minimum aperture number2
Minimum illumination0.1
Mounting kitYes
Mounting typeCeiling/wall
Networking standardsIEEE 802.1x
Noise reductionYes
Number of cameras1
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 85
Operating temperature (T-T)0 - 40
Optical sensor size1/2.5
Optical zoom20
Pan range-170 - 170
Pan speed100
Password protectionYes
Pixel counterYes
Placement supportedIndoor
Power consumption (max)20
Power consumption (typical)17.5
Power source typeDC
Preset pointsYes
Product colourBlack/White
Progressive scanYes
PTZ controlYes
Quality of Service (QoS) supportYes
RS-232 ports1
Sample rate48
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis 02022-002. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Housing material: Plastic. Minimum illumination: 0.1 lx, Lens viewing angle, horizontal: 70.2°, Lens viewing angle, vertical: 39.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.5 mm (1 / 2.5"). Optical zoom: 20x, Digital zoom: 12x, Focal length range: 4.4 - 88 mm
Supported network protocolsIPv4/v6, HTTP, HTTP/2, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, MQTT, Syslog
Supported video modes2160p
Terminal block portYes
Tilt angle range-20 - 90
Tilt speed90
TypeIP security camera
Video formats supportedAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video streamingYes
Weight1500
Width136
Zoom capabilityYes
Specs
Category CodeFNC
Description

AXIS V5938 combines excellent image quality with smooth PTZ control and broadcast-quality audio for professional webcasting. It’s compatible with VISCA joysticks and VISCA over IP, making it easy to integrate with your existing AV installations. Offering enhanced security features such as signed firmware and secure boot, it ensures the integrity and authenticity of the firmware. Furthermore, Axis Zipstream with H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. NDI® compliant (license to be bought separately).

  • 3G-SDI and HDMI outputs; Broadcast-quality audio with XLR inputs; Camstreamer 3-month trial included; UHD 4K at 30 fps and 20x zoom; VISCA and VISCA over IP support

NameNET CAMERA V5938 50HZ IP/2160P 02022-002 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/0258721c-832e-4193-bca2-1ef59c5cb811.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/0258721c-832e-4193-bca2-1ef59c5cb811.Jpeg
Unit Calculated Volume0.0165
Unit Calculated Weight2.49
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-v5938
