Desktop/pole router

Desktop/pole router
Desktop/pole router
  • Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
  • Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
  • WLAN data transfer rate (max): 1200
  • Ethernet LAN data rates: 10/100/1000
  • Ethernet LAN (RJ-45) ports: 5
  • USB port: Yes
Врз основа на 0 коментари. - Напиши коментар
37,887ден.
  • Достапност:
  • Бренд: MIKROTIK
  • Шифра: 444022
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Mikrotik Chateau 5G R17 ax. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1200 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Mobile network generation: 5G, 4G standard: LTE-TDD & LTE-FDD, 5G standard: Sub6 NSA, Sub6 SA. Product type: Desktop/pole router, Product colour: Black, Grey, International Protection (IP) code: IP20. Certification: CE, EAC, ROHS
  • Vendor Homepage: https://mikrotik.com/product/chateau_5g_r17_ax#fndtn-specifications
  • Name: WRL ACCESS POINT CHATEAU 5G AX/5HAXD2HAXDTC&RG650EEU MIKROTIK
  • Category Code: WRO
  • Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
  • Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
  • WLAN data transfer rate (max): 1200
  • Wi-Fi standards: 802.11a/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
  • WLAN data transfer rate (first band): 574
  • WLAN data transfer rate (second band): 1200
  • SIM card slot: Yes
  • Ethernet LAN: Yes
  • Ethernet LAN interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 10/100/1000
  • Mobile network generation: 5G
  • 4G standard: LTE-TDD & LTE-FDD
  • 5G bands supported: 1500/1800/2100/2300/2500/2600/3500/3700/700/800/850/900
  • 5G standard: Sub6 NSA/Sub6 SA
  • 3G bands supported: 2100/850/900
  • 4G bands supported: 1500/1800/2100/2300/2500/2600/3500/3700/700/800/850/900
  • SIM card type: MicroSIM
  • Ethernet LAN (RJ-45) ports: 5
  • USB port: Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
  • DC-in jack: Yes
  • Product colour: Black/Grey
  • International Protection (IP) code: IP20
  • Indication light: Yes
  • Product type: Desktop/pole router
  • Cables included: Power/UTP
  • Certification: CE, EAC, ROHS
  • Antenna design: Internal
  • Built-in processor: Yes
  • Processor cores: 4
  • Internal memory: 1000
  • Flash memory: 128
  • Power source type: DC
  • Power consumption (typical): 27
  • Operating temperature (T-T): -40 - 70
  • Quantity per pack: 1
  • Units per Pallet: 0
  • Units per Shipping Box: 5
  • Unit Calculated Volume: 0.00825
  • Unit Calculated Weight: 1.25
Specifications
3G bands supported2100/850/900
4G bands supported1500/1800/2100/2300/2500/2600/3500/3700/700/800/850/900
4G standardLTE-TDD & LTE-FDD
5G bands supported1500/1800/2100/2300/2500/2600/3500/3700/700/800/850/900
5G standardSub6 NSA/Sub6 SA
Antenna designInternal
Built-in processorYes
Cables includedPower/UTP
CertificationCE, EAC, ROHS
DC-in jackYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports5
Ethernet LAN data rates10/100/1000
Ethernet LAN interface typeGigabit Ethernet
Flash memory128
Indication lightYes
Internal memory1000
International Protection (IP) codeIP20
Mobile network generation5G
Operating temperature (T-T)-40 - 70
Power consumption (typical)27
Power source typeDC
Processor cores4
Product colourBlack/Grey
Quantity per pack1
SIM card slotYes
SIM card typeMicroSIM
SummaryMikrotik Chateau 5G R17 ax. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1200 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Mobile network generation: 5G, 4G standard: LTE-TDD & LTE-FDD, 5G standard: Sub6 NSA, Sub6 SA. Product type: Desktop/pole router, Product colour: Black, Grey, International Protection (IP) code: IP20. Certification: CE, EAC, ROHS
Top Wi-Fi standardWi-Fi 6 (802.11ax)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB portYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11a/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)574
WLAN data transfer rate (max)1200
WLAN data transfer rate (second band)1200
Specs
Category CodeWRO
Description

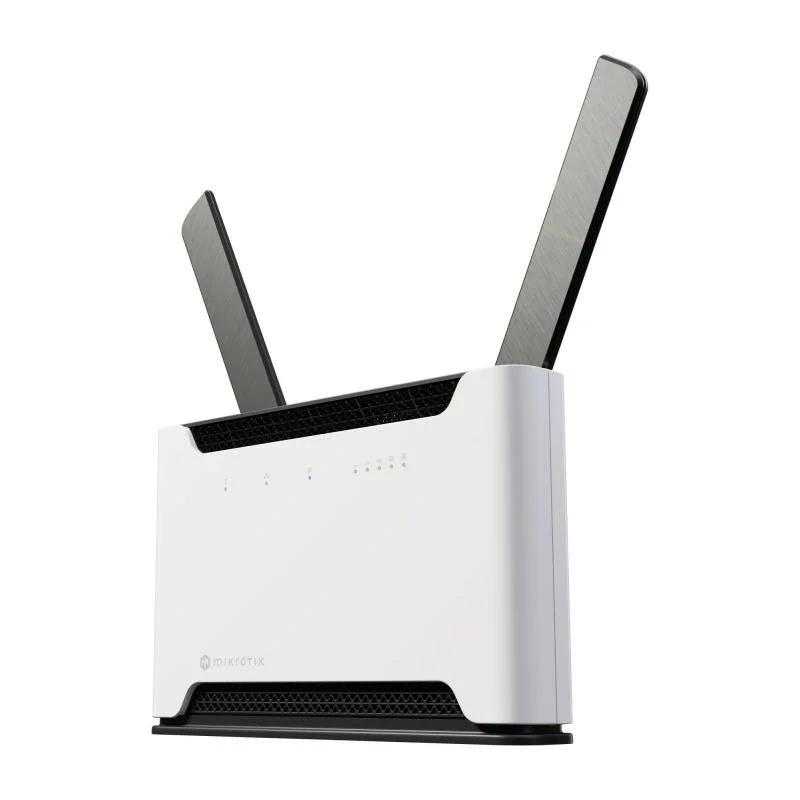

Chateau 5G ax R17 may look familiar – the sleek design, the mighty dual-band Wi-Fi 6 coverage, and all the impressive RouterOS v7 features. But under the hood, everything’s been pushed further.

Now powered by 5G Release 17 cutting-edge modem, Chateau takes full advantage of the latest mobile technologies, including advanced carrier aggregation combinations. That means faster downlink speeds, increased signal stability and responsiveness, even in regions where the mobile tower is far away. Wherever you are, Chateau finds the signal sweet spot.

Your network, your rules: eSIM or microSIM

Chateau has a true embedded SIM (eSIM) built right in, fully compatible with:
- MikroTik Connectivity (pre-activated data plans)
- Third-party eSIMs (Mobile operator eSIM profiles)
- Multiple eSIM profiles (easily added, switched, or stored)

With four powerful built-in LTE/5G antennas and two external dual-chain Wi-Fi 6 antennas, Chateau gives you great performance for download and upload even in a busy, crowded environment:

- Smart aggregation with wide regional FDD + TDD band support;
- Extra strong signal pickup thanks to 4x4 MIMO;
- Wi-Fi coverage designed for homes of all sizes, including multi-floor setups.

Chateau runs RouterOS v7, MikroTik’s industrial-grade operating system used by ISPs and sysadmins around the world – but with a simple user-friendly interface that anyone can learn to use. And if you’re not sure about diving deep into the world of networking – no worries, we also have iOS/Android app for even easier installation!

Set up a secure VPN. Optimize streaming. Limit bandwidth. Create VLANs. Block sites. Send SMS alerts when usage peaks. All without subscriptions or paywalls.
