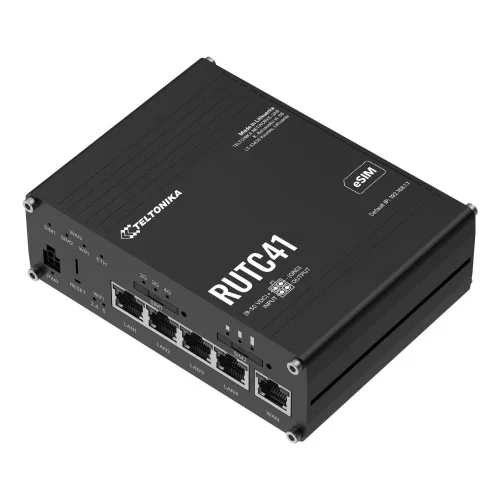

RUTC41 Industrial router

Technical Specifications

• Summary: Teltonika RUTC41. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 2402 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 5G, 4G standard: LTE, 5G standard: Sub6 SA/NSA. Authentication method: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts..., Firewall security: Port forward, traffic rules, custom rules. Routing protocols: BGP, EIGRP, NHRP, OSPFv2, RIP-1, RIP-2, VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE,...
• Vendor Homepage: https://wiki.teltonika-networks.com/view/RUTC41
• Name: WRL ROUTER 4G/RUTC41 TELTONIKA
• Category Code: WRO
• Model name: RUTC41
• Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
• Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
• WLAN data transfer rate (max): 2402
• Wi-Fi standards: 802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
• Ethernet WAN: Yes
• SIM card slot: Yes
• Ethernet LAN: Yes
• Ethernet LAN interface type: Gigabit Ethernet
• Ethernet LAN data rates: 10/100/1000
• Cabling technology: 10/100/1000Base-T(X)
• Networking standards: IEEE 802.3/IEEE 802.3az/IEEE 802.3u
• Auto MDI/MDI-X: Yes
• Port forwarding: Yes
• Dynamic DNS (DDNS): Yes
• Static route: Yes
• Mobile network generation: 5G
• Dual SIM support: Yes
• 4G standard: LTE
• 4G LTE category: 20
• 5G bands supported: 1700/2600/600/900
• 5G standard: Sub6 SA/NSA
• Short Message Service (SMS): Yes
• Ethernet LAN (RJ-45) ports: 5
• USB port: Yes
• USB 2.0 ports quantity: 1
• Quality of Service (QoS) support: Yes
• Wake-on-LAN ready: Yes
• Reset button: Yes
• MIMO: Yes
• MU-MIMO technology: Yes
• Authentication method: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
• Firewall: Yes
• Firewall security: Port forward, traffic rules, custom rules
• DDoS protection: Yes
• MAC address filtering: Yes
• IP address filtering: Yes
• DMZ support: Yes
• Network address translation (NAT): Yes
• DHCP client: Yes
• DHCP server: Yes
• Universal Plug and Play (UPnP): Yes
• Routing protocols: BGP/EIGRP/NHRP/OSPFv2/RIP-1/RIP-2
• VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
• Product colour: Black
• Product type: Industrial router
• Compliance certificates: CE/UKCA
• Antenna design: External
• Antenna type: 4x4
• Antenna connector type: SMA
• Built-in processor: Yes
• Operating system installed: RutOS
• Power source type: AC
• AC input voltage: 100 - 240
• Output voltage: 12
• Output current: 2
• Power plug type: Type E
• Operating relative humidity (H-H): 10 - 90
• Operating temperature (T-T): -40 - 75
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.003888
• Unit Calculated Weight: 2
