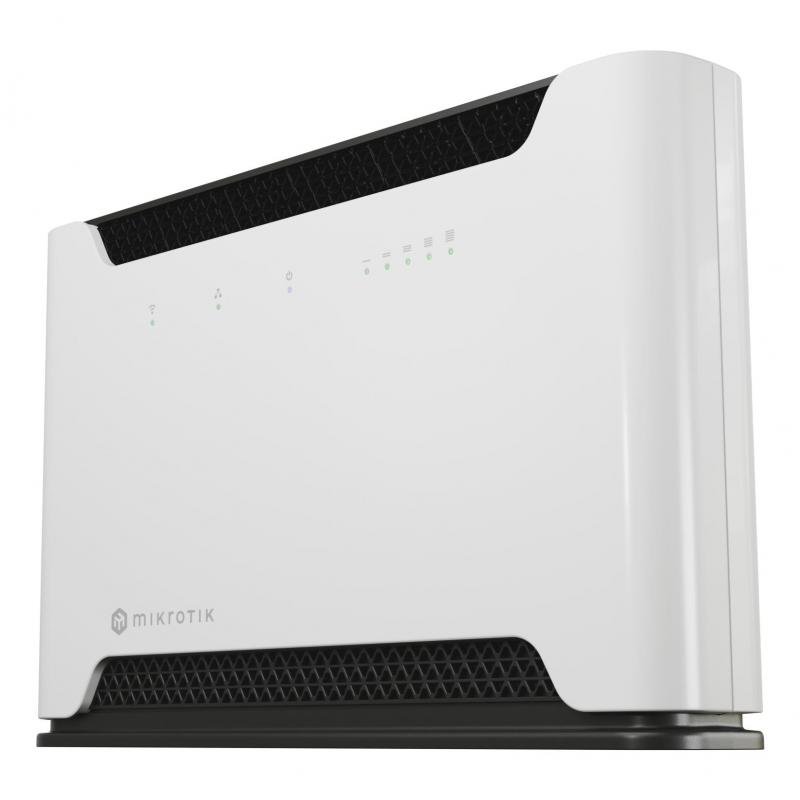

CHATEAU LTE12 Tabletop router

CHATEAU LTE12 Tabletop router
CHATEAU LTE12 Tabletop router
  • Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
  • Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • WLAN data transfer rate (max): 866
  • Ethernet LAN data rates: 10/100/1000
  • Ethernet LAN (RJ-45) ports: 5
  • USB port: Yes
Врз основа на 0 коментари. - Напиши коментар
19,282ден.
  • Достапност:
  • Бренд: MIKROTIK
  • Шифра: 435625
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Mikrotik Chateau LTE12. WAN connection type: RJ-45, USB. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 866 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 4G, SIM card type: MicroSIM. Number of data streams: 4x4
  • Vendor Homepage: https://mikrotik.com/product/chateau_lte12_2025#fndtn-downloads
  • Name: WRL ROUTER CHATEAU LTE12/5HACD2HND-TC&EG120KEA MIKROTIK
  • Category Code: WRO
  • Model: D53G-5HacD2HnD-TC&EG120K-EA
  • Model name: CHATEAU LTE12
  • Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
  • Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • WLAN data transfer rate (max): 866
  • Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
  • WLAN data transfer rate (first band): 300
  • WLAN data transfer rate (second band): 866
  • SIM card slot: Yes
  • 3G/4G USB modem compatibility: Yes
  • WAN connection type: RJ-45,USB
  • Ethernet LAN: Yes
  • Ethernet LAN interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 10/100/1000
  • Cabling technology: 10/100/1000Base-T(X)
  • Networking standards: IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
  • Mobile network generation: 4G
  • 3G: Yes
  • 4G: Yes
  • SIM card type: MicroSIM
  • Ethernet LAN (RJ-45) ports: 5
  • USB port: Yes
  • USB 2.0 ports quantity: 1
  • DC-in jack: Yes
  • Web-based management: Yes
  • Reset button: Yes
  • WPS push button: Yes
  • MIMO: Yes
  • MU-MIMO technology: Yes
  • Number of data streams: 4x4
  • Product colour: Black/White
  • Product type: Tabletop router
  • Antenna design: Internal & external
  • Antenna connector type: SMA
  • Built-in processor: Yes
  • Processor manufacturer: Qualcomm
  • Processor model: Qualcomm Atheros IPQ4019
  • Processor frequency: 448
  • Processor cores: 4
  • Internal memory: 256
  • Flash memory: 32
  • Operating system installed: RouterOS
  • Power source type: DC
  • Output voltage: 12 - 28
  • Power consumption (typical): 18
  • External power adapter: Yes
  • Operating temperature (T-T): -20 - 70
  • Depth: 44
  • Height: 156
  • Width: 240
  • Units per Pallet: 0
  • Units per Shipping Box: 20
  • Unit Calculated Volume: 0.003672
  • Unit Calculated Weight: 0.95
Specifications
3G/4G USB modem compatibilityYes
Antenna connector typeSMA
Antenna designInternal & external
Built-in processorYes
Cabling technology10/100/1000Base-T(X)
DC-in jackYes
Depth44
Ethernet LANYes
Ethernet LAN (RJ-45) ports5
Ethernet LAN data rates10/100/1000
Ethernet LAN interface typeGigabit Ethernet
External power adapterYes
Flash memory32
Height156
Internal memory256
MIMOYes
Mobile network generation4G
MU-MIMO technologyYes
Networking standardsIEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
Number of data streams4x4
Operating system installedRouterOS
Operating temperature (T-T)-20 - 70
Output voltage12 - 28
Power consumption (typical)18
Power source typeDC
Processor cores4
Processor frequency448
Processor manufacturerQualcomm
Processor modelQualcomm Atheros IPQ4019
Product colourBlack/White
Reset buttonYes
SIM card slotYes
SIM card typeMicroSIM
SummaryMikrotik Chateau LTE12. WAN connection type: RJ-45, USB. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 866 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 4G, SIM card type: MicroSIM. Number of data streams: 4x4
Top Wi-Fi standardWi-Fi 5 (802.11ac)
USB 2.0 ports quantity1
USB portYes
WAN connection typeRJ-45,USB
Web-based managementYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
Width240
WLAN data transfer rate (first band)300
WLAN data transfer rate (max)866
WLAN data transfer rate (second band)866
WPS push buttonYes
Specs
3GYes
4GYes
Category CodeWRO
Description

Remove the bottleneck in your mobile internet setup
Are you tired of ISP or operator-issued routers that limit your speed and coverage? Chateau LTE12 is the solution, delivering faster, more reliable mobile internet, whether you are in the city or the countryside. With carrier aggregation and expanded 4x4 MIMO support, you’ll experience:

- Faster speeds in crowded areas
- More stable connections in remote locations
- Wider coverage across multiple LTE bands

New and improved LTE connectivity
- Upgraded LTE12 modem for stronger, reliable connections.
Expanded 4x4 MIMO support on more bands: 1 / 3 / 7 / 38 / 40 / 41
- Dual-band Wi-Fi for seamless performance across all devices
- Now with B32 support for improved LTE performance in supported regions!

Built for homes and businesses
- 5x Gigabit Ethernet ports to connect media servers, PC towers, TVs, or smart home systems.
- Dual-band Wi-Fi (2.4 GHz & 5 GHz) ensures stable connections for all your devices.
- External LTE antenna support (SMA female ports) to boost signal strength in tricky signal areas.
- RouterOS for advanced security, VPNs, and full network control.

ModelD53G-5HacD2HnD-TC&EG120K-EA
Model nameCHATEAU LTE12
NameWRL ROUTER CHATEAU LTE12/5HACD2HND-TC&EG120KEA MIKROTIK
PictureUrlhttps://static.elko.cloud/ProductImages/abe78dee-5dbd-474f-a119-9efb29ed1668.Jpeg
Product TypeTabletop router
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/abe78dee-5dbd-474f-a119-9efb29ed1668.Jpeg
Unit Calculated Volume0.003672
Unit Calculated Weight0.95
Units per Pallet0
Units per Shipping Box20
Vendor Homepagehttps://mikrotik.com/product/chateau_lte12_2025#fndtn-downloads
