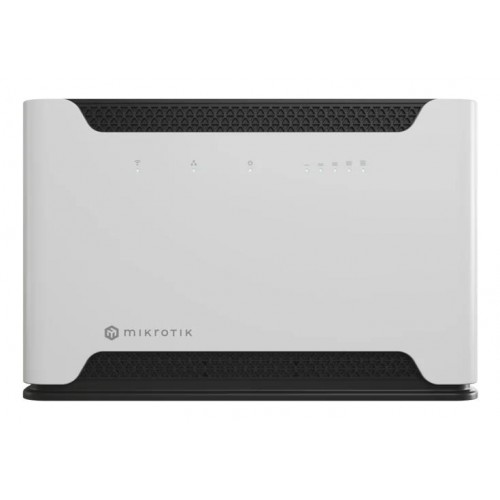

Mikrotik Chateau LTE7 (5HACD2HNDTC&R11E-LTE7)

Technical Specifications

• Summary: Mikrotik Chateau LTE7. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1167 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet. Mobile network generation: 4G, 4G standard: LTE-TDD & LTE-FDD, 4G bands supported: 700,800,850,900,1800,2100,2300,2500,2600 MHz. Product colour: Black, White. Certification: CE, EAC, ROHS
• Vendor Homepage: https://mikrotik.com/product/chateau_lte7
• Name: WRL ROUTER CHATEAU LTE7/5HACD2HNDTC&R11E-LTE7 MIKROTIK
• Category Code: WRO
• Model: D53G-5HacD2HnD-TC&R11e-LTE7
• Model name: Mikrotik Chateau LTE7 (5HACD2HNDTC&R11E-LTE7)
• Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
• Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
• WLAN data transfer rate (max): 1167
• Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
• WLAN data transfer rate (first band): 300
• WLAN data transfer rate (second band): 867
• Ethernet WAN: Yes
• SIM card slot: Yes
• 3G/4G USB modem compatibility: Yes
• Ethernet LAN: Yes
• Ethernet LAN interface type: Gigabit Ethernet
• Mobile network generation: 4G
• 4G standard: LTE-TDD & LTE-FDD
• 3G bands supported: 1800/2100/850/900
• 4G bands supported: 1800/2100/2300/2500/2600/700/800/850/900
• Ethernet LAN (RJ-45) ports: 1
• USB port: Yes
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• USB charging port: Yes
• Product colour: Black/White
• Certification: CE, EAC, ROHS
• Antenna design: Internal
• Built-in processor: Yes
• Processor frequency: 896
• Processor cores: 4
• Internal memory: 256
• Flash memory: 16
• Mean time between failures (MTBF): 200000
• Power source type: DC
• Output voltage: 18 - 28
• Power consumption (typical): 20
• Operating temperature (T-T): -40 - 70
• Depth: 44
• Height: 156
• Width: 240
• Units per Pallet: 0
• Units per Shipping Box: 20
• Unit Calculated Volume: 0.003672
• Unit Calculated Weight: 0.945
