WRL ROUTER LTE 4G/OTD140 TELTONIKA

Technical Specifications

• Description:

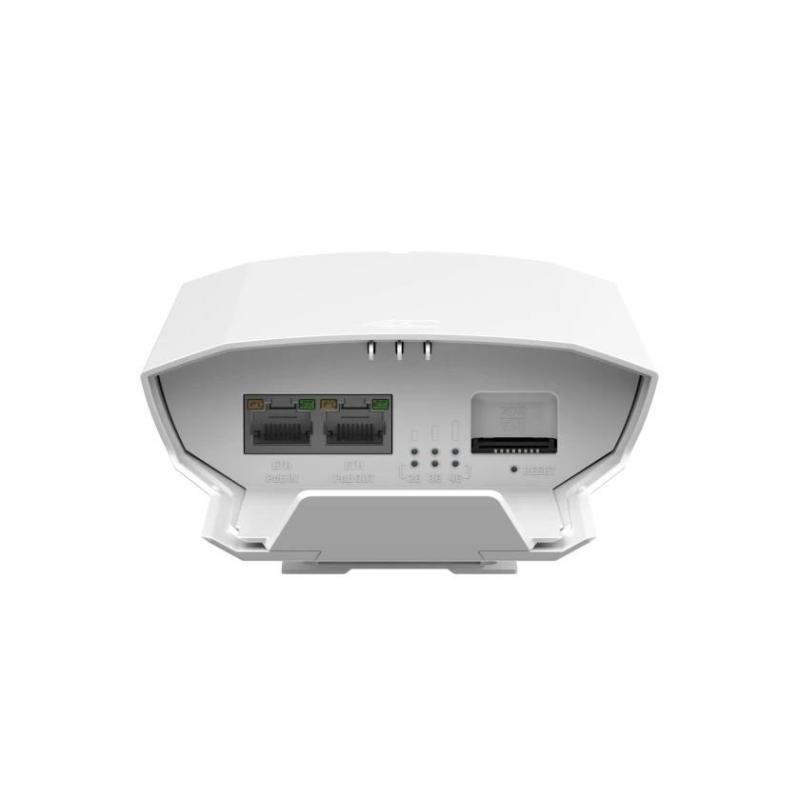

  The OTD140 outdoor router features a dedicated and durable IP55 plastic housing and an integrated mounting bracket, making this outdoor 4G router easy to deploy and capable of withstanding outdoor environmental conditions. Beyond that, this outdoor router is equipped with LTE Cat 4 connectivity, compatibility with RMS for remote management capabilities, and two PoE-in/out Ethernet ports.



  • IP55 durability for outdoor deployment
  • 4G LTE (Cat 4), 3G, 2G
  • Dual SIM with auto failover and other switching scenarios
  • 1 x PoE-in and 1 x PoE-out port

• Summary: Teltonika OTD140. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 4G standard: LTE. Management protocols: FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, RMS, VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP,.... Security algorithms: HTTPS. Processor frequency: 580 MHz, Flash memory: 16 MB, Internal memory: 128 MB
• Vendor Homepage: https://teltonika-networks.com/products/routers/otd140
• Name: WRL ROUTER LTE 4G/OTD140 TELTONIKA
• Category Code: ROU
• Ethernet WAN: Yes
• DSL WAN: No
• SIM card slot: Yes
• 3G/4G USB modem compatibility: No
• SFP WAN: No
• Networking standards: IEEE 802.3/IEEE 802.3az/IEEE 802.3u
• Ethernet interface type: Gigabit Ethernet
• Cabling technology: 10/100Base-T(X)
• Static route: Yes
• VLAN support: Yes
• Traffic control: Yes
• Port forwarding: Yes
• Auto MDI/MDI-X: Yes
• Policy-based routing: Yes
• Mobile network generation: 4G
• 4G standard: LTE
• Short Message Service (SMS): Yes
• Web-based management: Yes
• Quality of Service (QoS) support: Yes
• Universal Plug and Play (UPnP): Yes
• Wake-on-LAN ready: Yes
• Reset button: Yes
• WPS push button: No
• Firmware upgradeable: Yes
• Ethernet LAN (RJ-45) ports: 2
• Fast Ethernet (copper) ports quantity: 2
• Power over Ethernet (PoE) ports quantity: 2
• DMZ support: Yes
• Management protocols: FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, RMS
• VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• DHCP client: Yes
• DHCP server: Yes
• Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
• Security algorithms: HTTPS
• Firewall: Yes
• DoS attack prevention: Yes
• ARP attack prevention: Yes
• ICMP attack prevention: Yes
• Access Control List (ACL): Yes
• Manual: Yes
• Built-in processor: Yes
• Processor frequency: 580
• Flash memory: 16
• Internal memory: 128
• Operating system installed: RutOS
• Certification: CE, UKCA, EAC, UCRF, RCM
• Product colour: White
• Housing material: Plastic
• Rack mounting: Yes
• LED indicators: Status
• Antenna type: Internal
• Antennas quantity: 2
• Power consumption (typical): 2.5
• Power consumption (max): 6
• Power source type: DC,PoE
• Power over Ethernet (PoE): Yes
• Operating temperature (T-T): -40 - 75
• Operating relative humidity (H-H): 10 - 90
• Width: 100
• Depth: 235
• Height: 49.3
• Weight: 855
• Input voltage: 42.5 - 57
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0015
• Unit Calculated Weight: 2
