RUTM09

RUTM09
RUTM09
  • Ethernet LAN data rates: 10/100/1000
  • Ethernet LAN (RJ-45) ports: 4
  • Internal memory: 256
Врз основа на 0 коментари. - Напиши коментар
17,516ден.
  • Достапност:
  • Бренд: TELTONIKA
  • Шифра: 423885
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Teltonika RUTM09. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 4G, 4G standard: LTE. Routing protocols: BGP, EIGRP, NHRP, OSPFv2, RIP-1, RIP-2, VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE,.... Security algorithms: 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, Firewall security: Port forward, traffic rules, custom rules, Authentication method: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts.... Processor manufacturer: MediaTek, Processor model: MIPS 1004Kc, Processor frequency: 880 MHz
  • Vendor Homepage: https://teltonika-networks.com/products/routers/rutm09
  • Name: WRL ROUTER LTE/RUTM09 TELTONIKA
  • Category Code: ROU
  • Model: RUTM09
  • Ethernet WAN: Yes
  • SIM card slot: Yes
  • Networking standards: IEEE 802.3/IEEE 802.3az/IEEE 802.3u
  • Ethernet interface type: Gigabit Ethernet
  • Cabling technology: 10/100/1000Base-T(X)
  • Ethernet LAN data rates: 10/100/1000
  • Static route: Yes
  • VLAN support: Yes
  • Traffic control: Yes
  • Port forwarding: Yes
  • Auto MDI/MDI-X: Yes
  • Mobile network generation: 4G
  • 4G standard: LTE
  • Short Message Service (SMS): Yes
  • Web-based management: Yes
  • Quality of Service (QoS) support: Yes
  • Universal Plug and Play (UPnP): Yes
  • Wake-on-LAN ready: Yes
  • Reset button: Yes
  • Firmware upgradeable: Yes
  • Ethernet LAN (RJ-45) ports: 4
  • Gigabit Ethernet (copper) ports quantity: 4
  • WAN/Ethernet LAN ports quantity: 3
  • WAN ports quantity: 1
  • USB ports quantity: 1
  • USB version: 2.0
  • DMZ support: Yes
  • Routing protocols: BGP/EIGRP/NHRP/OSPFv2/RIP-1/RIP-2
  • VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
  • DHCP client: Yes
  • DHCP server: Yes
  • Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
  • Security algorithms: 128-bit AES/192-bit AES/256-bit AES/AES/DES
  • Firewall: Yes
  • Firewall security: Port forward, traffic rules, custom rules
  • Authentication method: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
  • MAC address filtering: Yes
  • IP address filtering: Yes
  • ARP attack prevention: Yes
  • ICMP attack prevention: Yes
  • Network address translation (NAT): Yes
  • Built-in processor: Yes
  • Processor manufacturer: MediaTek
  • Processor model: MIPS 1004Kc
  • Processor frequency: 880
  • Storage media: Flash
  • Flash memory: 256
  • Internal memory: 256
  • Internal memory type: DDR3
  • Operating system installed: RutOS
  • Product colour: Black
  • LED indicators: Yes
  • Power consumption (typical): 3.9
  • Power consumption (max): 12.3
  • Power source type: DC
  • Power plug type: Type E
  • Operating temperature (T-T): -40 - 75
  • Operating relative humidity (H-H): 10 - 90
  • Width: 115
  • Depth: 95.1
  • Height: 44.2
  • Weight: 457
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00432
  • Unit Calculated Weight: 1
Specifications
4G standardLTE
ARP attack preventionYes
Authentication methodPre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
Auto MDI/MDI-XYes
Built-in processorYes
Cabling technology10/100/1000Base-T(X)
Depth95.1
DHCP clientYes
DHCP serverYes
DMZ supportYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN (RJ-45) ports4
Ethernet LAN data rates10/100/1000
Ethernet WANYes
FirewallYes
Firewall securityPort forward, traffic rules, custom rules
Firmware upgradeableYes
Flash memory256
Gigabit Ethernet (copper) ports quantity4
Height44.2
ICMP attack preventionYes
Internal memory256
Internal memory typeDDR3
IP address filteringYes
LED indicatorsYes
MAC address filteringYes
Mobile network generation4G
Network address translation (NAT)Yes
Networking standardsIEEE 802.3/IEEE 802.3az/IEEE 802.3u
Operating relative humidity (H-H)10 - 90
Operating system installedRutOS
Operating temperature (T-T)-40 - 75
Port forwardingYes
Power consumption (max)12.3
Power consumption (typical)3.9
Power plug typeType E
Power source typeDC
Processor frequency880
Processor manufacturerMediaTek
Processor modelMIPS 1004Kc
Product colourBlack
Quality of Service (QoS) supportYes
Reset buttonYes
Routing protocolsBGP/EIGRP/NHRP/OSPFv2/RIP-1/RIP-2
Security algorithms128-bit AES/192-bit AES/256-bit AES/AES/DES
Short Message Service (SMS)Yes
SIM card slotYes
Static routeYes
Storage mediaFlash
SummaryTeltonika RUTM09. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 4G, 4G standard: LTE. Routing protocols: BGP, EIGRP, NHRP, OSPFv2, RIP-1, RIP-2, VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE,.... Security algorithms: 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, Firewall security: Port forward, traffic rules, custom rules, Authentication method: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts.... Processor manufacturer: MediaTek, Processor model: MIPS 1004Kc, Processor frequency: 880 MHz
Supported network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
Traffic controlYes
Universal Plug and Play (UPnP)Yes
USB ports quantity1
USB version2.0
VLAN supportYes
VoIP protocolsH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Wake-on-LAN readyYes
WAN ports quantity1
WAN/Ethernet LAN ports quantity3
Web-based managementYes
Weight457
Width115
Specs
Category CodeROU
Description

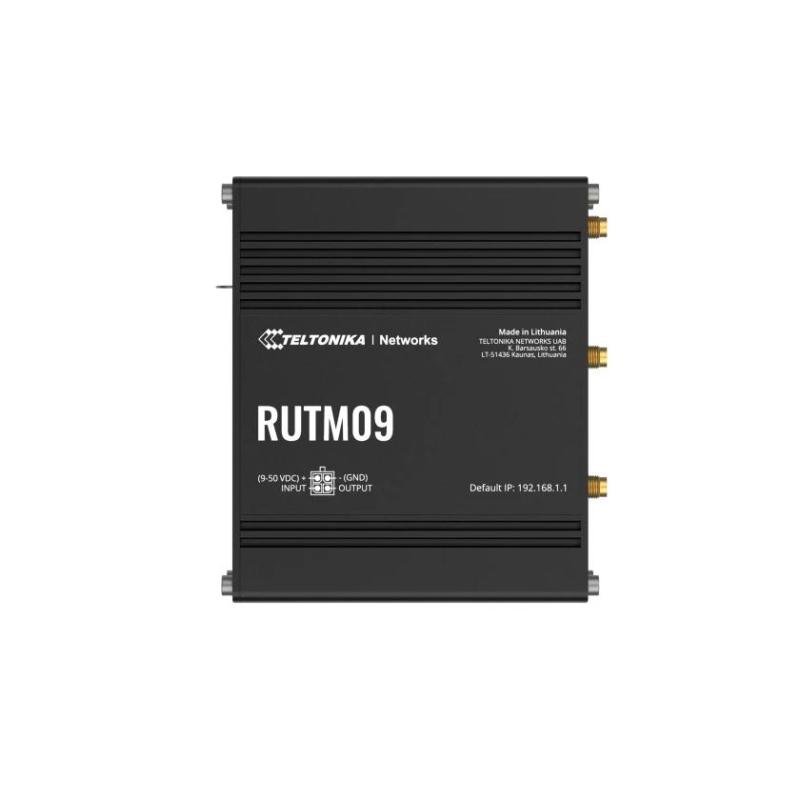

RUTM09
4G LTE ROUTER
The RUTM09 is a wireless 4G LTE router developed for high-cellular-speed applications. It comes with Cat 6 and dual SIM capabilities, enabling the device to support speeds of up to 300 Mbps and functions like carrier aggregation and failover. Additionally, the RUTM09 comes with four Gigabit RJ45 ports and includes GNSS, enabling GPS tracking for precise location detection. These features make the RUTM09 an exceptional choice for ensuring non-interruptible network connectivity for mobile applications or those requiring tracking.

- CONNECTIVITY
Dual SIM, 4G LTE (Cat 6) with speeds of up to 300Mbps
- PERFORMANCE-DRIVEN
Equipped with failover and carrier aggregation for uninterrupted, high-data throughput
- INTERFACES
4 x Gigabit RJ45 ports, USB, and up to 128 tag/port-based VLANs
- GNSS
Location services and time synchronisation for precise data reading

  • Dual SIM, 4G LTE (Cat 6) with speeds of up to 300Mbps
  • Equipped with failover and carrier aggregation for uninterrupted, high-data throughput
  • 4 x Gigabit RJ45 ports, USB, and up to 128 tag/port-based VLANs
  • Location services and time synchronisation for precise data reading

ModelRUTM09
NameWRL ROUTER LTE/RUTM09 TELTONIKA
PictureUrlhttps://static.elko.cloud/ProductImages/a5705621-1a80-4cb7-b8db-b4865ef1d086.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/a5705621-1a80-4cb7-b8db-b4865ef1d086.Jpeg
Unit Calculated Volume0.00432
Unit Calculated Weight1
Units per Shipping Box1
Vendor Homepagehttps://teltonika-networks.com/products/routers/rutm09
