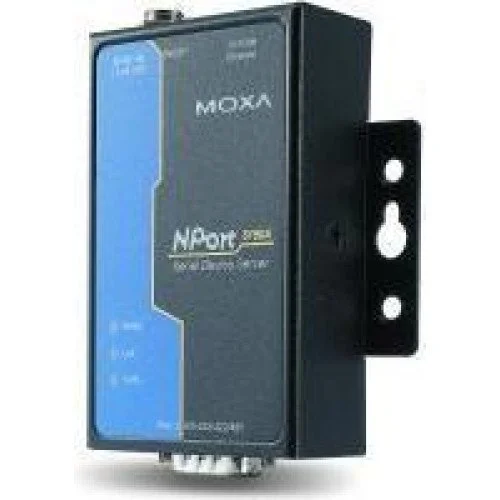

I/O DEVICE SERVER SERIAL 1P/10/100M NPORT 5150A MOXA

Technical Specifications

• Description:

  Only 1 W power consumption
  Speedy 3-step web-based configuration
  Surge protection for serial, Ethernet, and power lines
  COM port grouping and UDP multicast applications
  Screw connectors for secure installation
  Real COM/TTY drivers for Windows and Linux
  Standard TCP/IP interface and versatile TCP and UDP operation modes
  Connect up to 8 TCP hosts

• Vendor Homepage: http://www.moxa.com/product/NPort_5100A.htm
• Name: I/O DEVICE SERVER SERIAL 1P/10/100M NPORT 5150A MOXA
• Category Code: IIO
• Number of ports: 1
• RJ45: 1
• Power supply requirements: 92.4 mA @ 12 V, 52.8 mA @ 24 V
• Dimensions: 52 x 80 x 22 mm
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0016
• Product Net Weight: 0.34
• Unit Calculated Weight: 0.5
