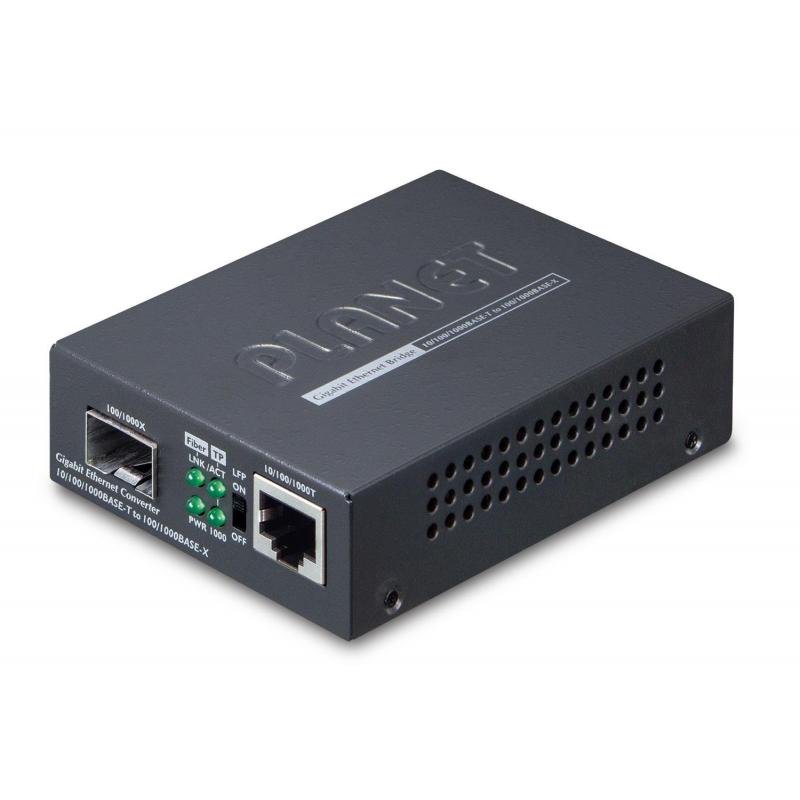

NET MEDIA CONVERTER 1000M/GT-805A PLANET

NET MEDIA CONVERTER 1000M/GT-805A PLANET
NET MEDIA CONVERTER 1000M/GT-805A PLANET
Врз основа на 0 коментари. - Напиши коментар
3,015ден.
  • Достапност: Има залиха
  • Бренд: PLANET
  • Шифра: 455692
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: PLANET GT805A. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-T, 1000Base-T, Converter output interface: 1000Base-LX, 1000Base-SX. Maximum transfer distance: 100 m, Fiber mode structure: Multi-mode, Fiber cable diameters supported (core/cladding): 9/125,50/125,62.5/125 µm. Product colour: Black. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 5 V, Input current: 2 A, Power consumption (typical): 5.6 W
  • Vendor Homepage: https://www.planet.com.tw/en/product/gt-80x-series-v6
  • Name: NET MEDIA CONVERTER 1000M/GT-805A PLANET
  • Category Code: MCO
  • Maximum data transfer rate: 1000
  • Converter input interface: 1000Base-T/100Base-T/10Base-T
  • Converter output interface: 1000Base-LX/1000Base-SX
  • Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  • Ethernet interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 10/100/1000
  • Auto MDI/MDI-X: Yes
  • Duplex system: Full/Half
  • Maximum transfer distance: 100
  • Wavelength: 0
  • Fiber mode structure: Multi-mode
  • Fiber cable diameters supported (core/cladding): 50/125/62.5/125/9/125
  • DIN rail mounting: Yes
  • LED indicators: Yes
  • Product colour: Black
  • Connectivity technology: Wired
  • Ethernet LAN (RJ-45) ports: 2
  • Fiber optic connector: SFP
  • Input voltage: 5
  • Input current: 2
  • Power consumption (typical): 5.6
  • Width: 94
  • Depth: 70
  • Height: 26
  • Weight: 200
  • Operating temperature (T-T): 0 - 50
  • Storage temperature (T-T): -10 - 70
  • Operating relative humidity (H-H): 5 - 95
  • Storage relative humidity (H-H): 5 - 95
  • Certification: FCC Class A, CE Class A
  • Harmonized System (HS) code: 85176990
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.002058
  • Unit Calculated Weight: 0.3
Specifications
Auto MDI/MDI-XYes
CertificationFCC Class A, CE Class A
Connectivity technologyWired
Converter input interface1000Base-T/100Base-T/10Base-T
Converter output interface1000Base-LX/1000Base-SX
Depth70
DIN rail mountingYes
Duplex systemFull/Half
Ethernet interface typeGigabit Ethernet
Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10/100/1000
Fiber cable diameters supported (core/cladding)50/125/62.5/125/9/125
Fiber mode structureMulti-mode
Fiber optic connectorSFP
Harmonized System (HS) code85176990
Height26
Input current2
Input voltage5
LED indicatorsYes
Maximum data transfer rate1000
Maximum transfer distance100
Networking standardsIEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Operating relative humidity (H-H)5 - 95
Operating temperature (T-T)0 - 50
Power consumption (typical)5.6
Product colourBlack
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-10 - 70
SummaryPLANET GT805A. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-T, 1000Base-T, Converter output interface: 1000Base-LX, 1000Base-SX. Maximum transfer distance: 100 m, Fiber mode structure: Multi-mode, Fiber cable diameters supported (core/cladding): 9/125,50/125,62.5/125 µm. Product colour: Black. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 5 V, Input current: 2 A, Power consumption (typical): 5.6 W
Wavelength0
Weight200
Width94
Specs
Category CodeMCO
Description

Providing the flexibility of 10/100/1000Mbps Ethernet Media via RJ45 port and highly stable Gigabit fiber performance, PLANET GT-802, GT-802S, GT-802S40, GT-806S60, GT-805A and GT-806A/B media converters support conversion between 10/100/1000BASE-T and 1000BASE-SX/LX networks. There are SC/SFP/WDM connectors with single-mode or multi-mode media as required. The Ethernet signal allows three types of segments to connect easily, efficiently and inexpensively.


Distance Extension with High Performance and Steady Network Communications

PLANET GT-80x gigabit media converter series extends communication distance with highly Gigabit performance via fiber optic cable. The GT-80x series provides media conversion between 10/100/1000BASE-T and 1000BASE-SX/LX interfaces for various fiber optic applications. The available fiber interfaces are shown below:


Enhanced Smart Management Features

The GT-80x series provides auto MDI/MDI-X on its TP port and the DIP switch to configure the Link Fault Passthrough function (LFP). The LFP function includes the Link Loss Carry Forward (LLCF)/Link Loss Return (LLR). LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the network. The DIP switch can disable or enable the LFP function.

- LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber will disconnect the link of transmission.
- LLR (Link Loss Return) means when a device connected to the converter and the fiber line loses the link, the converter’s fiber will disconnect the link of transmission.

Both can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the network.


Easy Installation

The GT-80x series allows two types of the segment to connect easily. The GT-80x series can be used as a standalone unit when powered by its DC adapter or used as a slide-in module to PLANET 19-inch 7-/15-slot media converter chassis (MC-700/MC-1500/ MC-1500R/MC-1500R48). These media chassis can assist in producing the power for the GT-80x to maintain the fiber-optic network at one location. As the Gigabit Media Converter fully complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T and IEEE 802.3z 1000BASE-LX/SX, the Gigabit media conversion installation is quite quick and easy with its Plug and Play feature. The GT-80x also supports flow control and back pressure in half-duplex mode to eliminate packet loss.

  • Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-SX/LX
  • TP port supports 10/100/1000BASE-T auto-negotiation and auto-MDI/MDI-X
  • 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m (GT-802)
  • 1000BASE-LX: 9/125μm single-mode cable provides a distance of 10km (GT-802S)
  • 1000BASE-LX: 9/125μm single-mode cable provides a distance of 40km (GT-802S40)
  • 1000BASE-LX: 9/125μm single-mode cable provides a distance of 60km (GT-802S60)
  • 1000BASE-SX/LX: 50/125μm/62.5/125μm multi-mode fiber cable or 9/125μm single-mode cable provides a distance depending on SFP module (GT-805A)
  • 1000BASE-LX WDM interface is for up to 15km (single-mode fiber 9μm/125μm) on GT-806A15/GT-806B15
  • 1000BASE-LX WDM interface is for up to 40km (single-mode fiber 9μm/125μm) on GT-806A40/GT-806B40
  • 1000BASE-LX WDM interface is for up to 60km (single-mode fiber 9μm/125μm) on GT-806A60/GT-806B60
  • 1000BASE-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters
  • Layer 2 key features
  • IEEE 802.3x flow control for full duplex and back pressure for half duplex eliminate the loss of packets
  • Supports auto MDI/MDI-X function
  • Store-and-Forward mechanism
  • Non-blocking full wire-speed forwarding rate
  • Media conversion between 10/100/1000BASE-T and 1000BASE-SX/LX
  • Fiber media allows
  • Multi-mode fiber using SC/LC/WDM connector
  • Single-mode fiber using SC/LC/WDM connector
  • Compact size for working with PLANET MC family media chassis (MC-700/MC-1500/MC-1500R/MC-1500R48)
  • Wall-mountable design
  • LED indicators for easy network diagnostics
  • Provides DIP switch for LFP function (Disable/Enable) setting
  • 9K jumbo frame supported
  • Choice of fiber connectors from SC, LC and WDM; multi-mode/single-mode fiber for 1000BASE SFP interface
  • Compact in size, easy installation
