NET CAMERA ACC CONTROL BOARD/T8310 5020-001 AXIS

Technical Specifications

• Description:

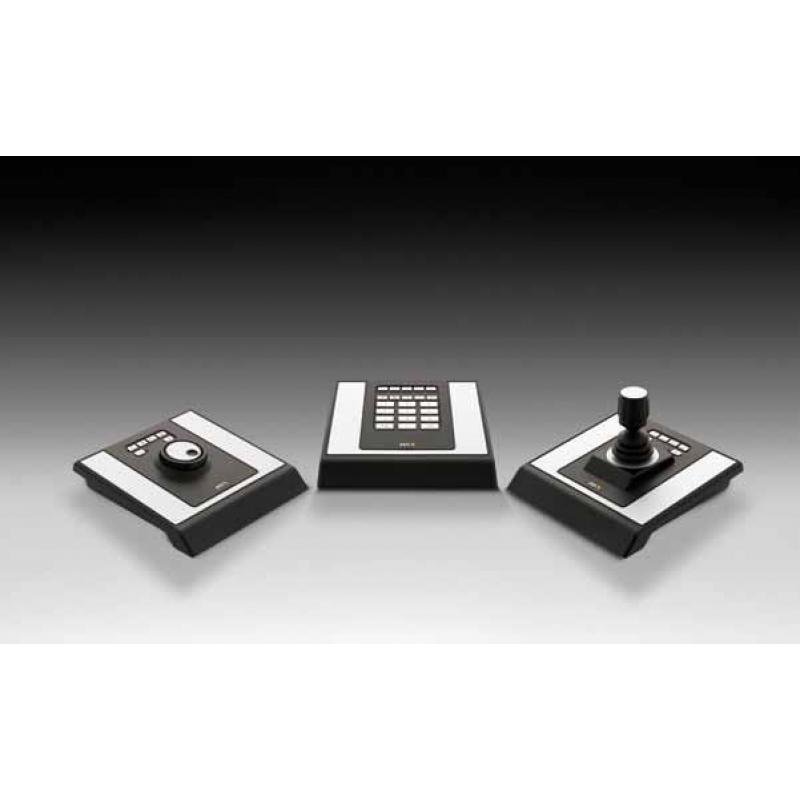

  AXIS T8310 Video Surveillance Control Board is a modular system with three separate joystick, keypad and jog dial units. The modular system allows the user to choose a simple solution such as only the joystick, or a complete solution with all three modules for both camera and video management.

  AXIS T8311 Video Surveillance Joystick gives responsive and accurate control of all Axis PTZ and PTZ dome network cameras. With AXIS T8312 Video Surveillance Keypad the user quickly navigates between workspaces, cameras, views and PTZ presets. AXIS T8313 Video Surveillance Jog Dial is used for navigating through recorded video.

  All three units are constructed in durable materials and have a professional look and finish that adapt to a surveillance room design. The units are designed for both left hand and right hand use. AXIS T8311 Joystick is a 3-axis joystick with a turn knob and six application defined hotkeys. AXIS T8312 Keypad has ten application defined hotkeys and 12 preset keys. AXIS T8313 Jog Dial also has six application defined hotkeys as well as a navigation dial.

  The units are easy to install with USB interface. When using the complete AXIS T8310 Control Board the modules are interconnected with the AXIS T8312 Keypad serving as a USB hub. AXIS T8310 Control Board is supported by Axis Camera Station.

  Compatible products: Axis network video cameras, Axis network video servers





• Vendor Homepage: http://www.axis.com/files/datasheet/ds_t8310_38845_en_1003_lo.pdf
• Name: NET CAMERA ACC CONTROL BOARD/T8310 5020-001 AXIS
• Category Code: NCC
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.03465
• Product Net Weight: 1.99
• Unit Calculated Weight: 3.82
