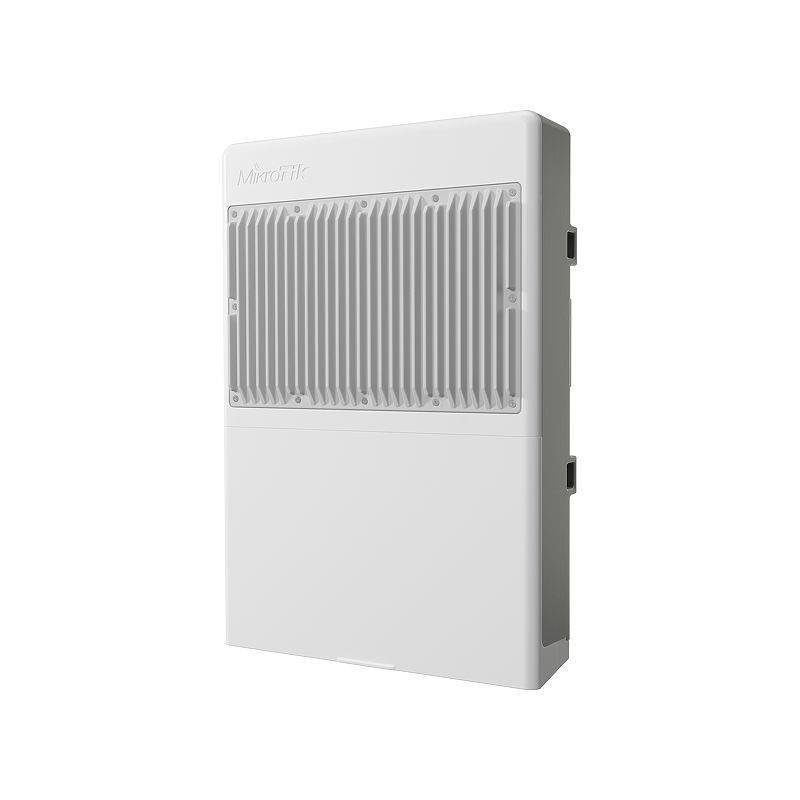

CRS318-16P-2S+OUT

CRS318-16P-2S+OUT
достава за 24h
CRS318-16P-2S+OUT
  • Switch layer: L2/L3
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Switching capacity: 72
Врз основа на 0 коментари. - Напиши коментар
18,116ден.
  • Достапност: Има залиха
  • Бренд: MIKROTIK
  • Шифра: 302885
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Mikrotik netPower 16P. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Switching capacity: 72 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 18 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE)
  • Vendor Homepage: https://mikrotik.com/product/netpower_16p#fndtn-specifications
  • Name: NET ROUTER/SWITCH 18PORT/CRS318-16P-2S+OUT MIKROTIK
  • Category Code: SWI
  • Model: CRS318-16P-2S+OUT
  • Switch layer: L2/L3
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP+ module slots quantity: 2
  • Power connector: DC-in jack
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Switching capacity: 72
  • Forwarding rate: 53.6
  • Product colour: White
  • Temperature sensor: Yes
  • Built-in processor: Yes
  • Processor model: 98DX226S
  • Processor frequency: 800
  • Internal memory: 256
  • Flash memory: 16
  • Power supply included: Yes
  • DC input voltage: 18 - 57
  • Power consumption (max): 316
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 16
  • Operating temperature (T-T): -40 - 70
  • Width: 212
  • Depth: 78
  • Height: 303
  • Certification: CE/RED, EAC, RoHS
  • Units per Pallet: 0
  • Units per Shipping Box: 5
  • Unit Calculated Volume: 0.01219
  • Unit Calculated Weight: 3.03
Specifications
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Built-in processorYes
CertificationCE/RED, EAC, RoHS
DC input voltage18 - 57
Depth78
Flash memory16
Height303
Internal memory256
Networking standardsIEEE 802.3af/IEEE 802.3at
Operating temperature (T-T)-40 - 70
Power connectorDC-in jack
Power consumption (max)316
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity16
Power supply includedYes
Processor frequency800
Processor model98DX226S
Product colourWhite
SFP+ module slots quantity2
SummaryMikrotik netPower 16P. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Switching capacity: 72 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 18 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE)
Switch layerL2/L3
Temperature sensorYes
Width212
Specs
Category CodeSWI
Description

Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.

Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps.

netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.

Device itself does not have onboard voltage converter. You need 24V PSU to have 24V PoE out and/or 48V PSU to have 48V PoE out (IEEE 802.3 at/af).

* Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, 48POW and 48V2A96W

Forwarding rate53.6
ModelCRS318-16P-2S+OUT
NameNET ROUTER/SWITCH 18PORT/CRS318-16P-2S+OUT MIKROTIK
PictureUrlhttps://static.elko.cloud/ProductImages/cd9544e4-7a1c-4dfb-9578-dbdd6329514d.Jpeg
Switching capacity72
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/cd9544e4-7a1c-4dfb-9578-dbdd6329514d.Jpeg
Unit Calculated Volume0.01219
Unit Calculated Weight3.03
Units per Pallet0
Units per Shipping Box5
Vendor Homepagehttps://mikrotik.com/product/netpower_16p#fndtn-specifications
