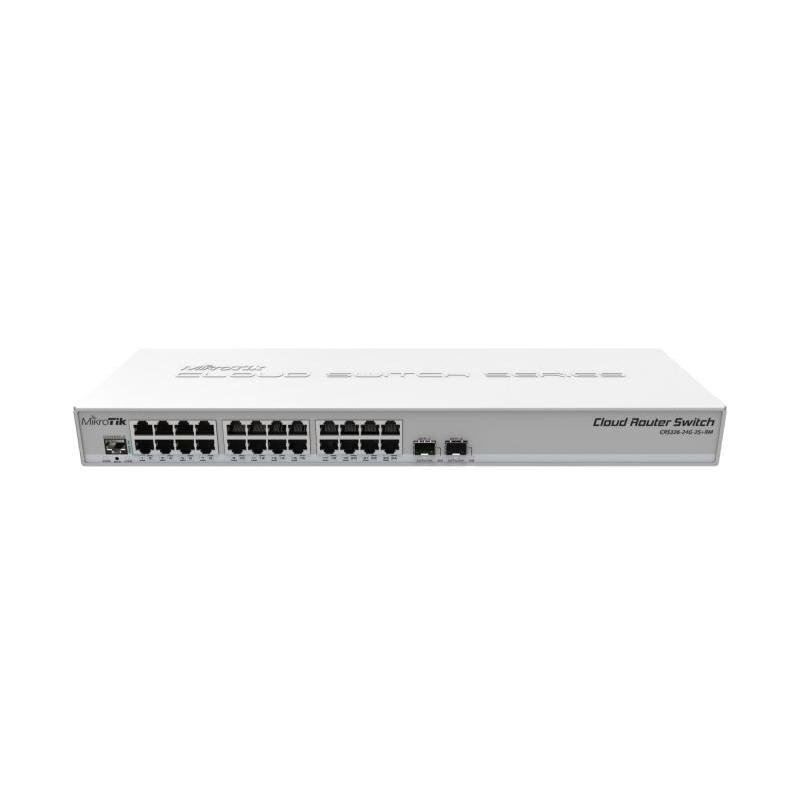

NET ROUTER/SWITCH 24PORT 1000M/CRS326-24G-2S+RM MIKROTIK

NET ROUTER/SWITCH 24PORT 1000M/CRS326-24G-2S+RM MIKROTIK
NET ROUTER/SWITCH 24PORT 1000M/CRS326-24G-2S+RM MIKROTIK
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 24
Врз основа на 0 коментари. - Напиши коментар
13,930ден.
  • Достапност:
  • Бренд: MIKROTIK
  • Шифра: 221193
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Mikrotik CRS326-24G-2S+RM. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Networking standards: IEEE 802.1Q
  • Vendor Homepage: https://mikrotik.com/product/CRS326-24G-2SplusRM
  • Name: NET ROUTER/SWITCH 24PORT 1000M/CRS326-24G-2S+RM MIKROTIK
  • Category Code: SWI
  • Switch type: Managed
  • Switch layer: L2
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP+ module slots quantity: 2
  • Console port: RJ-45
  • Networking standards: IEEE 802.1Q
  • 10G support: Yes
  • Port mirroring: Yes
  • Broadcast storm control: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Number of VLANs: 4000
  • Access Control List (ACL): Yes
  • Security algorithms: SNMP
  • Product colour: Grey
  • Built-in processor: Yes
  • Processor frequency: 800
  • Internal memory: 512
  • Flash memory: 16
  • Compatible operating systems: RouterOS, SwitchOS
  • Power supply included: Yes
  • Power consumption (max): 24
  • Operating temperature (T-T): -40 - 60
  • Width: 440
  • Depth: 144
  • Height: 44
  • Rack mount kit: Yes
  • AC adapter included: Yes
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 10
  • Unit Calculated Volume: 0.0088
  • Unit Calculated Weight: 1.7
Specifications
10G supportYes
AC adapter includedYes
Access Control List (ACL)Yes
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlYes
Built-in processorYes
Compatible operating systemsRouterOS, SwitchOS
Console portRJ-45
Depth144
Flash memory16
Harmonized System (HS) code85176990
Height44
Internal memory512
Networking standardsIEEE 802.1Q
Number of VLANs4000
Operating temperature (T-T)-40 - 60
Port mirroringYes
Power consumption (max)24
Power supply includedYes
Processor frequency800
Product colourGrey
Rack mount kitYes
Security algorithmsSNMP
SFP+ module slots quantity2
Spanning tree protocolYes
SummaryMikrotik CRS326-24G-2S+RM. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Networking standards: IEEE 802.1Q
Switch layerL2
VLAN supportYes
Web-based managementYes
Width440
Specs
Category CodeSWI
Description

SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!

It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.

It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.

NameNET ROUTER/SWITCH 24PORT 1000M/CRS326-24G-2S+RM MIKROTIK
PictureUrlhttps://static.elko.cloud/ProductImages/a0455a64-0231-4071-8a36-ac40284dd4a9.Jpeg
Switch typeManaged
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/a0455a64-0231-4071-8a36-ac40284dd4a9.Jpeg
Unit Calculated Volume0.0088
Unit Calculated Weight1.7
Units per Shipping Box10
Vendor Homepagehttps://mikrotik.com/product/CRS326-24G-2SplusRM
