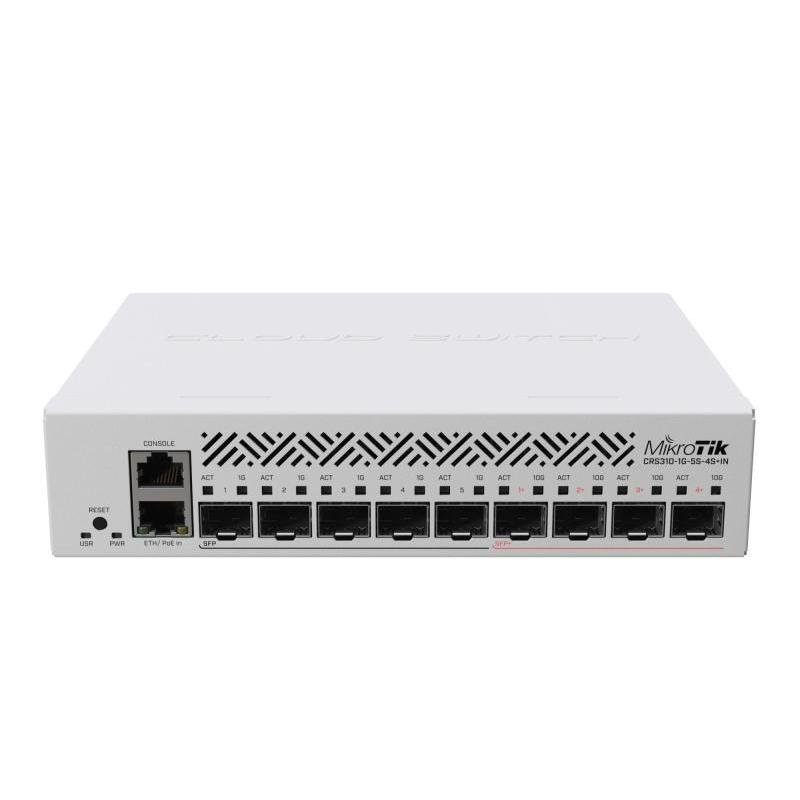

NET ROUTER/SWITCH 9PORT/CRS310-1G-5S-4S+IN MIKROTIK

NET ROUTER/SWITCH 9PORT/CRS310-1G-5S-4S+IN MIKROTIK
достава за 24h
NET ROUTER/SWITCH 9PORT/CRS310-1G-5S-4S+IN MIKROTIK
  • Switch type: Managed
  • Switch layer: L3
  • SFP module slots quantity: 5
Врз основа на 0 коментари. - Напиши коментар
13,013ден.
  • Достапност: Има залиха
  • Бренд: MIKROTIK
  • Шифра: 378368
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Mikrotik CRS310-1G-5S-4S+IN. Switch type: Managed, Switch layer: L3. Console port: RJ-45. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 18 - 57 V. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • Vendor Homepage: https://mikrotik.com/product/crs310_1g_5s_4s_in
  • Name: NET ROUTER/SWITCH 9PORT/CRS310-1G-5S-4S+IN MIKROTIK
  • Category Code: SWI
  • Model name: CRS310-1G-5S-4S+IN
  • Switch type: Managed
  • Switch layer: L3
  • SFP module slots quantity: 5
  • SFP+ module slots quantity: 4
  • Console port: RJ-45
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • 10G support: Yes
  • Rack mounting: Yes
  • Form factor: 1U
  • Reset button: Yes
  • Built-in processor: Yes
  • Processor model: 98DX226S
  • Processor frequency: 800
  • Internal memory: 256
  • Flash memory: 16
  • Mean time between failures (MTBF): 200000
  • Power source: DC/PoE
  • Power supply included: Yes
  • DC input voltage: 18 - 57
  • Power consumption (max): 20
  • Power over Ethernet (PoE): Yes
  • Operating temperature (T-T): -40 - 70
  • Width: 200
  • Depth: 166
  • Height: 45
  • Certification: CE, EAC, ROHS
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00372
  • Unit Calculated Weight: 1.04
Specifications
10G supportYes
Built-in processorYes
CertificationCE, EAC, ROHS
Console portRJ-45
DC input voltage18 - 57
Depth166
Flash memory16
Form factor1U
Harmonized System (HS) code85176990
Height45
Internal memory256
Mean time between failures (MTBF)200000
Networking standardsIEEE 802.3af/IEEE 802.3at
Operating temperature (T-T)-40 - 70
Power consumption (max)20
Power over Ethernet (PoE)Yes
Power supply includedYes
Processor frequency800
Processor model98DX226S
Rack mountingYes
Reset buttonYes
SFP module slots quantity5
SFP+ module slots quantity4
SummaryMikrotik CRS310-1G-5S-4S+IN. Switch type: Managed, Switch layer: L3. Console port: RJ-45. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 18 - 57 V. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Switch layerL3
Width200
Specs
Category CodeSWI
Description

10 Gigabit fibre connectivity way over a 100 meters – for small offices or ISPs. Hardware offloaded VLAN-filtering and even some L3 routing on a budget!

This switch is an indoor variation of the prominent netFiber 9 switch – used by many small and medium ISPs for reliable 10 Gigabit fibre connections stretching over a 100 meters. With five 1G SFP ports, four 10G SFP+ ports, and an additional Gigabit Ethernet port, this is the perfect upgrade for existing CRS212 setups. You’re getting the modern ARM v7 CPU, 256 MB of RAM, and better cooling. The new Marvell switch-chips bring phenomenal performance to the table!

The Gigabit Ethernet port has a direct connection to the switch chip – so you can enjoy full gigabit speed there. And it supports PoE-in, giving you an additional powering option in tricky spots.

You can mount this switch in a standard 1U rack to keep everything organized. And it has all the power you would expect from a rackmount device: CRS310 supports hardware offloaded VLAN- filtering. And even some hardware offloaded Layer-3 routing.

CRS310-1G-5S-4S+IN is a fantastic tool for anyone working with indoor connections over 100 meters while keeping data loss and ping low. Optical fiber can be a great alternative to copper if you are worried about electromagnetic interference, tampering or eavesdropping.

Model nameCRS310-1G-5S-4S+IN
NameNET ROUTER/SWITCH 9PORT/CRS310-1G-5S-4S+IN MIKROTIK
PictureUrlhttps://static.elko.cloud/ProductImages/f079a72a-bd12-48a9-94e1-f3c94715e5be.Jpeg
Power sourceDC/PoE
Switch typeManaged
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/f079a72a-bd12-48a9-94e1-f3c94715e5be.Jpeg
Unit Calculated Volume0.00372
Unit Calculated Weight1.04
Units per Shipping Box1
Vendor Homepagehttps://mikrotik.com/product/crs310_1g_5s_4s_in
