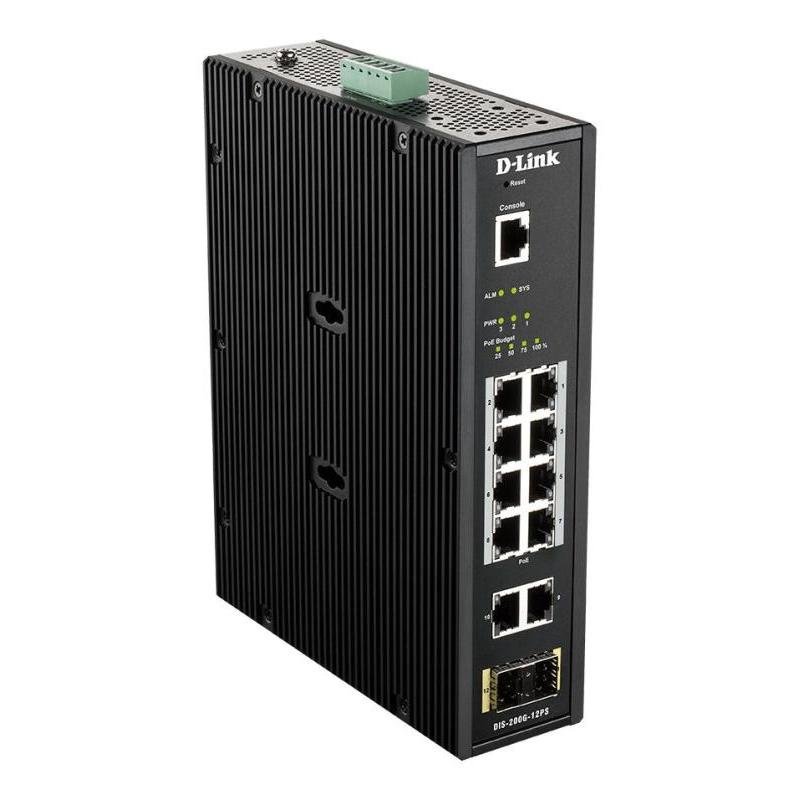

DIS-200G-12PS

DIS-200G-12PS
DIS-200G-12PS
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 10
  • SFP module slots quantity: 2
  • Switching capacity: 24
Врз основа на 0 коментари. - Напиши коментар
60,987ден.
  • Достапност:
  • Бренд: D-LINK
  • Шифра: 371649
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: D-Link 12-Port L2 Industrial Smart Managed Switch with 10 x 1GBaseT(X) (8 PoE 240W) & 2 x SFP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... DC input voltage: 46 - 54 V. Power over Ethernet (PoE). Wall mountable, Rack mounting
  • Vendor Homepage: https://www.dlink.com/uk/en/products/dis-200g-12ps
  • Name: NET SWITCH 12PORT 100/1000/DIS-200G-12PS D-LINK
  • Category Code: SWI
  • Model: DIS-200G-12PS
  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Configuring Location Settings (CLI): Yes
  • System event log: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 10
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 10
  • SFP module slots quantity: 2
  • Console port: RJ-45
  • Networking standards: IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Active link detection: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Broadcast storm control: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Virtual LAN features: Port-based VLAN/Tagged VLAN/Voice VLAN
  • Number of VLANs: 4094
  • Fiber ethernet cabling technology: 1000BASE-X
  • Switching capacity: 24
  • Forwarding rate: 17.85
  • MAC address table: 8000
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
  • DHCP features: DHCP client
  • IGMP snooping: Yes
  • Authentication: Port-based authentication
  • Authentication type: RADIUS
  • Queue scheduling algorithms: SPQ/Weighted Round Robin (WRR)
  • Security algorithms: 802.1x RADIUS/SSL/TLS
  • Multicast support: Yes
  • Management protocols: SNMP v1/v2c/v3, SNTP, Telnet
  • Rack mounting: Yes
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • DIN rail mounting: Yes
  • International Protection (IP) code: IP30
  • Number of fans: 0
  • Wall mountable: Yes
  • Electromagnetic compatibility: CISPR 22, FCC Part 15B Class A
  • Mean time between failures (MTBF): 205689
  • DC input voltage: 46 - 54
  • Power consumption (max): 260
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 8
  • Power over Ethernet (PoE) power per port: 30
  • Total Power over Ethernet (PoE) budget: 240
  • Operating temperature (T-T): -40 - 65
  • Storage temperature (T-T): -40 - 85
  • Operating relative humidity (H-H): 0 - 95
  • Storage relative humidity (H-H): 0 - 95
  • Heat dissipation: 887.16
  • Width: 171.2
  • Depth: 53
  • Height: 210
  • Weight: 1760
  • Certification: CE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00602
  • Unit Calculated Weight: 2.2
Specifications
Active link detectionYes
AuthenticationPort-based authentication
Authentication typeRADIUS
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity10
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlYes
CertificationCE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
Configuring Location Settings (CLI)Yes
Console portRJ-45
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
DC input voltage46 - 54
Depth53
DHCP featuresDHCP client
DIN rail mountingYes
Electromagnetic compatibilityCISPR 22, FCC Part 15B Class A
Fiber ethernet cabling technology1000BASE-X
Flow control supportYes
Full duplexYes
Gigabit Ethernet (copper) ports quantity10
Harmonized System (HS) code85176990
Heat dissipation887.16
Height210
Housing materialMetal
IGMP snoopingYes
International Protection (IP) codeIP30
Jumbo frames9216
Jumbo frames supportYes
LED indicatorsYes
Link aggregationYes
MAC address table8000
Management protocolsSNMP v1/v2c/v3, SNTP, Telnet
Mean time between failures (MTBF)205689
Multicast supportYes
Networking standardsIEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Number of fans0
Number of VLANs4094
Operating relative humidity (H-H)0 - 95
Operating temperature (T-T)-40 - 65
Port mirroringYes
Power consumption (max)260
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity8
Power over Ethernet (PoE) power per port30
Product colourBlack
Quality of Service (QoS) supportYes
Queue scheduling algorithmsSPQ/Weighted Round Robin (WRR)
Rack mountingYes
Security algorithms802.1x RADIUS/SSL/TLS
SFP module slots quantity2
Spanning tree protocolYes
Storage relative humidity (H-H)0 - 95
Storage temperature (T-T)-40 - 85
Store-and-forwardYes
SummaryD-Link 12-Port L2 Industrial Smart Managed Switch with 10 x 1GBaseT(X) (8 PoE 240W) & 2 x SFP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... DC input voltage: 46 - 54 V. Power over Ethernet (PoE). Wall mountable, Rack mounting
Switch layerL2
System event logYes
Total Power over Ethernet (PoE) budget240
Virtual LAN featuresPort-based VLAN/Tagged VLAN/Voice VLAN
VLAN supportYes
Wall mountableYes
Web-based managementYes
Weight1760
Width171.2
Specs
Auto-negotiationYes
Category CodeSWI
Description

Smart Management
Featuring management interfaces, including an industry-standard CLI, and Web-based UI, the DIS-200G Serie is easy to manage and provides the controls to help protect and shape your network.

Gigabit Connectivity with PoE and SFP ports
Designed with 8 x 10/100/1000Base-T PoE ports, 2 x 10/100/1000Base-T ports, and 2 x SFP ports to suit a range of devices and network layouts.

Officially Certified
Certifications for vibration, shock, free-fall, electromagnetic, and high-capacity 6 kV surge protection on all copper ports to maximise network uptime in harsh deployment environments.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +65°C.

PoE Support
With its 240 W PoE+ power budget1, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.

High Redundancy and Reliability
ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged.

Enhanced IP Surveillance
Supports Auto-Surveillance VLAN (ASV), automatically detecting surveillance devices and putting them into a dedicated surveillance VLAN, increasing security of surveillance data, and giving the traffic a higher priority.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 48 x 210 x 171.2 mm.

  • 8 x 10/100/1000Base-T PoE+ ports, 2x 10/100/1000Base-T ports, 2 x SFP ports
  • RJ-45 Console port
  • Easy-to-control management interfaces and security
  • Withstands severe temperatures
  • Compliant with vibration, shock, free-fall testing

Forwarding rate17.85
ModelDIS-200G-12PS
NameNET SWITCH 12PORT 100/1000/DIS-200G-12PS D-LINK
PictureUrlhttps://static.elko.cloud/ProductImages/d3b6a003-8c96-4c9c-be34-ceeba5b4bcee.Jpeg
Switch typeManaged
Switching capacity24
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/d3b6a003-8c96-4c9c-be34-ceeba5b4bcee.Jpeg
Unit Calculated Volume0.00602
Unit Calculated Weight2.2
Units per Shipping Box1
Vendor Homepagehttps://www.dlink.com/uk/en/products/dis-200g-12ps
