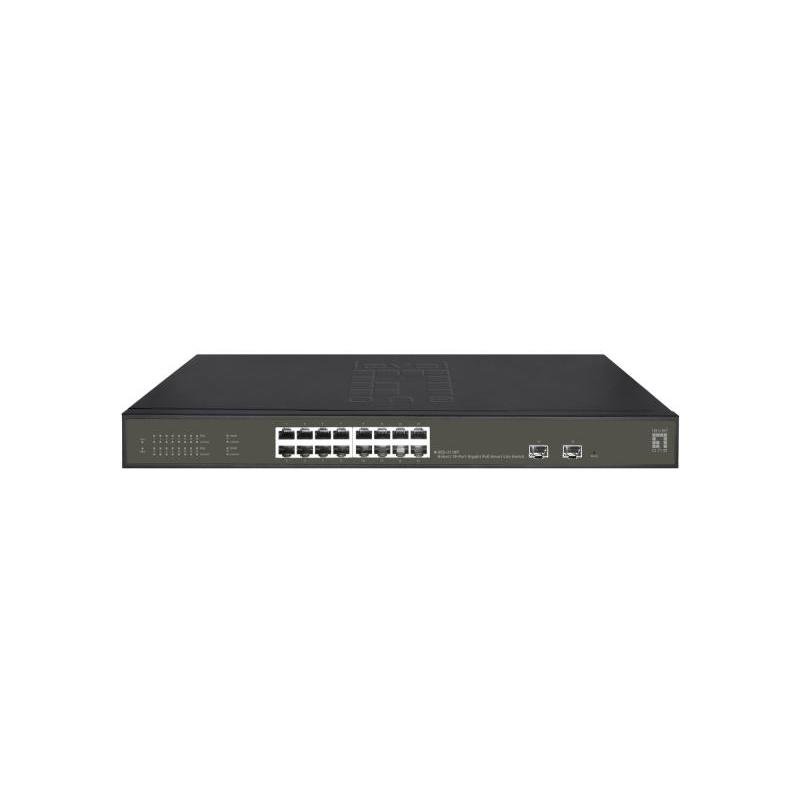

GES-2118P

GES-2118P
достава за 24h
GES-2118P
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • SFP module slots quantity: 2
  • Switching capacity: 36
Врз основа на 0 коментари. - Напиши коментар
35,058ден.
  • Достапност: Има залиха
  • Бренд: LEVELONE
  • Шифра: 430886
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: LevelOne Hilbert 18-Port Gigabit PoE Smart Lite Switch, 16 PoE Outputs, 2 x Gigabit SFP, 802.3at/af PoE, 230W PoE Power Budget. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az. Power over Ethernet (PoE). Rack mounting
  • Vendor Homepage: https://www.level1.com/level1_en/ges-2118p-hilbert-18-port-gigabit-poe-smart-lite-switch-16-poe-outputs-2-x-gigabit-sfp-802-3at-af-poe-230w-poe-power-budget-52091003101
  • Name: NET SWITCH 18PORT 16POE 1000M/GES-2118P LEVELONE
  • Category Code: SWI
  • Model: GES-2118P
  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 16
  • SFP module slots quantity: 2
  • Networking standards: IEEE 802.1p/IEEE 802.1Q/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Broadcast storm control: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • MAC address auto-aging supported: Yes
  • MAC address auto-learning supported: Yes
  • Rate limiting: Yes
  • VLAN support: Yes
  • Virtual LAN features: Tagged VLAN
  • Number of VLANs: 32
  • Switching capacity: 36
  • MAC address table: 8000
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 4.1
  • IGMP snooping: Yes
  • Multicast support: Yes
  • Rack mounting: Yes
  • Product colour: Black
  • LED indicators: Activity/Link/PoE/Power/System
  • Flash memory: 2
  • Noise level: 30
  • Mean time between failures (MTBF): 43800
  • Power source: AC/PoE
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Power consumption (max): 250
  • Surge protection: Yes
  • Surge protection voltage: 8
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 16
  • Power over Ethernet (PoE) power per port: 30
  • Total Power over Ethernet (PoE) budget: 230
  • Operating temperature (T-T): 0 - 45
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 10 - 90
  • Storage relative humidity (H-H): 5 - 95
  • Heat dissipation: 81.89
  • Width: 440
  • Depth: 190
  • Height: 44.5
  • Weight: 2400
  • Cables included: AC
  • Quick start guide: Yes
  • Rack mount kit: Yes
  • Package type: Box
  • Package width: 503
  • Package depth: 270
  • Package height: 85
  • Package weight: 3000
  • Sustainability compliance: Yes
  • Compliance certificates: CE/RoHS
  • Master (outer) cases per pallet (air): 20
  • Pallet gross length: 800
  • Pallet gross width: 1200
  • Pallet height (air): 1594
  • Master (outer) case net weight: 750
  • Country of origin: China
  • Master (outer) case width: 515
  • Master (outer) case length: 360
  • Master (outer) case height: 290
  • Master (outer) case gross weight: 12750
  • Products per master (outer) case: 4
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01215
  • Unit Calculated Weight: 2.8
Specifications
AC input frequency50 - 60
AC input voltage100 - 240
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlYes
Cables includedAC
Compliance certificatesCE/RoHS
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Country of originChina
Depth190
Flash memory2
Flow control supportYes
Full duplexYes
Gigabit Ethernet (copper) ports quantity16
Heat dissipation81.89
Height44.5
IGMP snoopingYes
Jumbo frames9000
Jumbo frames supportYes
LED indicatorsActivity/Link/PoE/Power/System
Link aggregationYes
MAC address auto-aging supportedYes
MAC address auto-learning supportedYes
MAC address table8000
Master (outer) case gross weight12750
Master (outer) case height290
Master (outer) case length360
Master (outer) case net weight750
Master (outer) case width515
Master (outer) cases per pallet (air)20
Mean time between failures (MTBF)43800
Multicast supportYes
Networking standardsIEEE 802.1p/IEEE 802.1Q/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az
Noise level30
Number of queues4
Number of VLANs32
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 45
Package depth270
Package height85
Package typeBox
Package weight3000
Package width503
Packet buffer memory4.1
Pallet gross length800
Pallet gross width1200
Pallet height (air)1594
Port mirroringYes
Power consumption (max)250
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port30
Power over Ethernet plus (PoE+) ports quantity16
Product colourBlack
Products per master (outer) case4
Quality of Service (QoS) supportYes
Quick start guideYes
Rack mount kitYes
Rack mountingYes
Rate limitingYes
SFP module slots quantity2
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 70
SummaryLevelOne Hilbert 18-Port Gigabit PoE Smart Lite Switch, 16 PoE Outputs, 2 x Gigabit SFP, 802.3at/af PoE, 230W PoE Power Budget. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az. Power over Ethernet (PoE). Rack mounting
Surge protection voltage8
Sustainability complianceYes
Switch layerL2
Total Power over Ethernet (PoE) budget230
Virtual LAN featuresTagged VLAN
VLAN supportYes
Web-based managementYes
Weight2400
Width440
Specs
Category CodeSWI
Description

The LevelOne GES-2118P Hilbert gigabit PoE smart lite switch is a next-generation Ethernet Switch offering powerful better PoE functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GES-2118P delivers 16 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 230W) ports and 2 Gigabit SFP ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne GES-2118P provides high HW performance and environment flexibility for Enterprises. GES-2118P is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

  • 16 PoE-Plus Gigabit Ethernet ports supports PoE Watchdog and 2 Gigabit SFP slots
  • Total PoE power budget: 230W, up to 30W per port
  • IEEE 802.3af/at PoE compliant to simplify deployment and installation
  • Supports 8K MAC address auto-learning and auto-aging
  • 9K jumbo frames to increase data transfer rates
  • IP Multicast Filtering through IGMP Snooping V1 / V2
  • 802.1Q tag-based VLAN allows network segmentation to enhance performance and security
  • IEEE 802.1p QoS with 4 priority queues
  • Supports unknown unicast / broadcast / multicast storm control
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • 4KV surge protection, 6KV contact / 8KV air ESD protection
  • Web-based and smart lite Management
  • Supports LevelOne IP Locator for easier IP management

ModelGES-2118P
NameNET SWITCH 18PORT 16POE 1000M/GES-2118P LEVELONE
PictureUrlhttps://static.elko.cloud/ProductImages/bc004fe0-b037-4995-abc6-92e7ae3d361e.Jpeg
Power sourceAC/PoE
Surge protectionYes
Switch typeManaged
Switching capacity36
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/bc004fe0-b037-4995-abc6-92e7ae3d361e.Jpeg
Unit Calculated Volume0.01215
Unit Calculated Weight2.8
Units per Shipping Box1
Vendor Homepagehttps://www.level1.com/level1_en/ges-2118p-hilbert-18-port-gigabit-poe-smart-lite-switch-16-poe-outputs-2-x-gigabit-sfp-802-3at-af-poe-230w-poe-power-budget-52091003101
