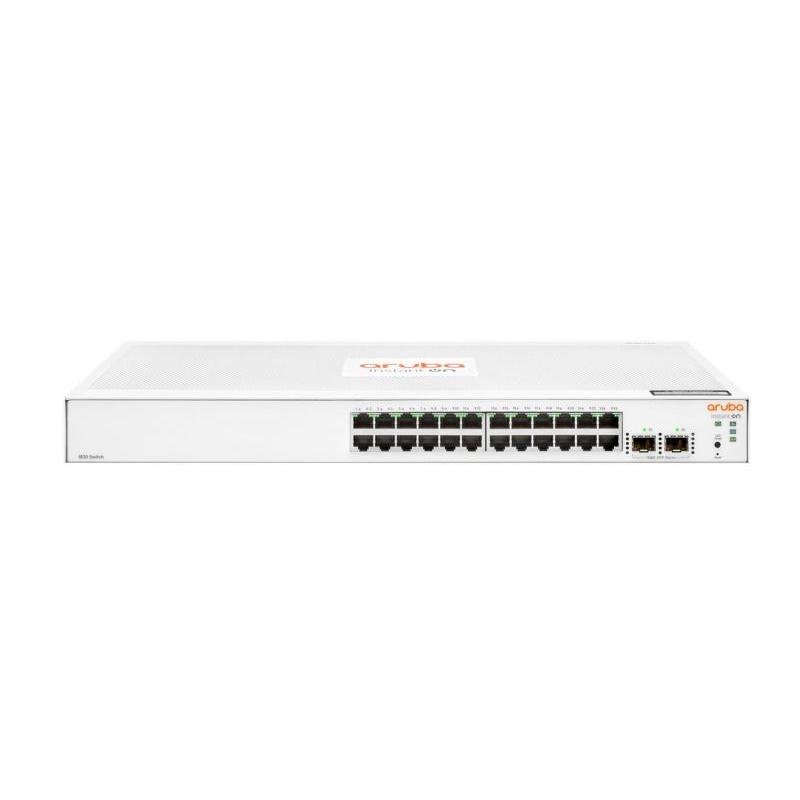

NET SWITCH 24PORT 1000M 1830/24G 2SFP JL812A ARUBA BY HPE

NET SWITCH 24PORT 1000M 1830/24G 2SFP JL812A ARUBA BY HPE
NET SWITCH 24PORT 1000M 1830/24G 2SFP JL812A ARUBA BY HPE
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • SFP module slots quantity: 2
  • Switching capacity: 52
14,010ден.
  • Достапност:
  • Бренд: ARUBA BY HPE
  • Шифра: 431741
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
1

Technical Specifications

  • Summary: HPE Aruba Networking Aruba Instant On 1830 24G 2SFP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting, Form factor: 1U
  • Vendor Homepage: https://buy.hpe.com/uk/en/networking/switches/fixed-port-web-managed-ethernet-switches/aruba-1800-switch-products/aruba-instant-on-1830-switch-series/aruba-instant-on-1830-24g-2sfp-switch/p/JL812A
  • Name: NET SWITCH 24PORT 1000M 1830/24G 2SFP JL812A ARUBA BY HPE
  • Category Code: SWI
  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Cloud-managed: Yes
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 2
  • Networking standards: IEEE 802.1ab/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ac/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  • Port mirroring: Yes
  • Full duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-sensing: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Switching capacity: 52
  • Throughput: 38.68
  • MAC address table: 16000
  • Latency (10-100 Mbps): 5.2
  • Latency (1 Gbps): 2.8
  • Jumbo frames support: Yes
  • Packet buffer memory: 1.5
  • DHCP features: DHCP client
  • IGMP snooping: Yes
  • SSH/SSL support: Yes
  • Rack mounting: Yes
  • Form factor: 1U
  • Built-in processor: Yes
  • Processor model: ARM Cortex-A9
  • Processor frequency: 800
  • Memory type: SDRAM
  • Internal memory: 512
  • Flash memory: 256
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Power consumption (max): 7.8
  • Operating temperature (T-T): 0 - 40
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 15 - 95
  • Storage relative humidity (H-H): 15 - 95
  • Width: 215.9
  • Depth: 443
  • Height: 43.9
  • Weight: 2490
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.02867
  • Unit Calculated Weight: 3
Specifications
AC input frequency50 - 60
AC input voltage100 - 240
Auto MDI/MDI-XYes
Auto-sensingYes
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Built-in processorYes
Cloud-managedYes
Depth443
DHCP featuresDHCP client
Flash memory256
Flow control supportYes
Form factor1U
Full duplexYes
Harmonized System (HS) code85176990
Height43.9
IGMP snoopingYes
Internal memory512
Jumbo frames supportYes
Latency (1 Gbps)2.8
Latency (10-100 Mbps)5.2
Link aggregationYes
MAC address table16000
Memory typeSDRAM
Networking standardsIEEE 802.1ab/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ac/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Operating relative humidity (H-H)15 - 95
Operating temperature (T-T)0 - 40
Packet buffer memory1.5
Port mirroringYes
Power consumption (max)7.8
Power supply includedYes
Processor frequency800
Processor modelARM Cortex-A9
Quality of Service (QoS) supportYes
Rack mountingYes
SFP module slots quantity2
Spanning tree protocolYes
SSH/SSL supportYes
Storage relative humidity (H-H)15 - 95
Storage temperature (T-T)-40 - 70
SummaryHPE Aruba Networking Aruba Instant On 1830 24G 2SFP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting, Form factor: 1U
Switch layerL2
Throughput38.68
VLAN supportYes
Web-based managementYes
Weight2490
Width215.9
Specs
Category CodeSWI
Description

Aruba Instant On 1830 Switch Series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications.
This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands. These entry-level, smart-managed switches offer Layer 2 switching capabilities, Gigabit connectivity, along with flexible management modes - all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets.

Features

Gigabit Connectivity for Small Businesses
- Aruba Instant On 1830 Switch Series is a smart-managed Layer 2 Ethernet switch series ready to deploy in six models comprising of 8-, 24-, 48-port for non-PoE and Classs 4 PoE models.
- Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.
- With PoE models, you get up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port, 24-port and 48-port PoE models come with the power budget of 65W, 195W, and 370W respectively to support latest IoT devices.
- 8-port non-PoE switch can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.

Simplify Network Deployment and Management
- The Aruba Instant On 1830 Switch Series features easy-to-use, out-of-the-box, plug-and-play deployment.
- The switches can be deployed using two management modes - Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
- Class 4 PoE options allow power to devices like IP phones, surveillance cameras, and access points without the cost of additional cabling.

Keep Your Business Protected with Integrated Security Features
- The Aruba Instant On 1830 Switch Series is enhanced with security features such as IEEE 802.1x, Global Storm Control, TPM (Trusted Platform module) based security, and VLANs to guard your network from unwanted or unauthorized access.
- Leverage 802.1X with a RADIUS server to verify only known and authorized users can access your network.
- Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.

Better Energy Efficient Features for Reducing Environmental Footprint
- The Aruba Instant On 1830 Switch Series has Energy Efficient Ethernet (EEE), and is compliant with 802.3az standard requirements to save energy during periods of low data activity.
- Energy-efficient cooling includes variable speed fans operating only at the speed necessary to maintain operating temperature to reduce excess noise and power consumption.
- Features compact and fan-less 8-port and 24-port non-PoE models for acoustically-sensitive environments.
- PoE Scheduling allows users to configure a specific day/time of the week (e.g. business hours) for Instant On switches to supply power to connected devices (e.g. surveillance cameras, access points, etc.).

NameNET SWITCH 24PORT 1000M 1830/24G 2SFP JL812A ARUBA BY HPE
PictureUrlhttps://static.elko.cloud/ProductImages/7a797143-85a0-43ae-bf93-8f29a30913d2.Jpeg
Power sourceAC
Switch typeManaged
Switching capacity52
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/7a797143-85a0-43ae-bf93-8f29a30913d2.Jpeg
Unit Calculated Volume0.02867
Unit Calculated Weight3
Units per Shipping Box1
Vendor Homepagehttps://buy.hpe.com/uk/en/networking/switches/fixed-port-web-managed-ethernet-switches/aruba-1800-switch-products/aruba-instant-on-1830-switch-series/aruba-instant-on-1830-24g-2sfp-switch/p/JL812A
