SWM281

SWM281
достава за 24h
SWM281
  • Switch type: Managed
  • Switch layer: L2+
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • SFP module slots quantity: 4
  • Switching capacity: 56
Врз основа на 0 коментари. - Напиши коментар
14,090ден.
  • Достапност: Има залиха
  • Бренд: TELTONIKA
  • Шифра: 452991
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Teltonika SWM281. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Rack mounting
  • Vendor Homepage: https://www.teltonika-networks.com/products/ethernet-switches/swm281
  • Name: NET SWITCH 24PORT 10/100/1000/L2+ SWM281 TELTONIKA
  • Category Code: SWI
  • Model: SWM281
  • Model name: SWM281
  • Switch type: Managed
  • Switch layer: L2+
  • Cloud-managed: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 4
  • Networking standards: IEEE 802.3ab/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
  • Port mirroring: Yes
  • IP routing: Yes
  • Auto MDI/MDI-X: Yes
  • Ethernet LAN data rates: 10,100,1000
  • Rate limiting: Yes
  • Switching capacity: 56
  • Forwarding rate: 83.33
  • MAC address table: 8
  • Jumbo frames support: Yes
  • Jumbo frames: 10000
  • Packet buffer memory: 0.512
  • DHCP features: DHCP client/DHCP server
  • Rack mounting: Yes
  • Product colour: Black
  • Reset button: Yes
  • LED indicators: Yes
  • International Protection (IP) code: IP30
  • Memory type: DDR3-SDRAM
  • Internal memory: 128
  • Flash memory: 16
  • Power source: AC
  • AC input voltage: 100 - 240
  • AC input frequency: 50/60
  • Power consumption (max): 20
  • Operating temperature (T-T): 0 - 50
  • Operating relative humidity (H-H): 10 - 90
  • Width: 483
  • Depth: 234
  • Height: 44
  • Weight: 1853
  • Certification: CE, UKCA, CB, RCM, FCC, IC
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01142
  • Unit Calculated Weight: 2
Specifications
AC input frequency50/60
AC input voltage100 - 240
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCE, UKCA, CB, RCM, FCC, IC
Cloud-managedYes
Depth234
DHCP featuresDHCP client/DHCP server
Ethernet LAN data rates10,100,1000
Flash memory16
Height44
Internal memory128
International Protection (IP) codeIP30
IP routingYes
Jumbo frames10000
Jumbo frames supportYes
LED indicatorsYes
MAC address table8
Memory typeDDR3-SDRAM
Networking standardsIEEE 802.3ab/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 50
Packet buffer memory0.512
Port mirroringYes
Power consumption (max)20
Product colourBlack
Rack mountingYes
Rate limitingYes
Reset buttonYes
SFP module slots quantity4
SummaryTeltonika SWM281. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Rack mounting
Switch layerL2+
Weight1853
Width483
Specs
Category CodeSWI
Description

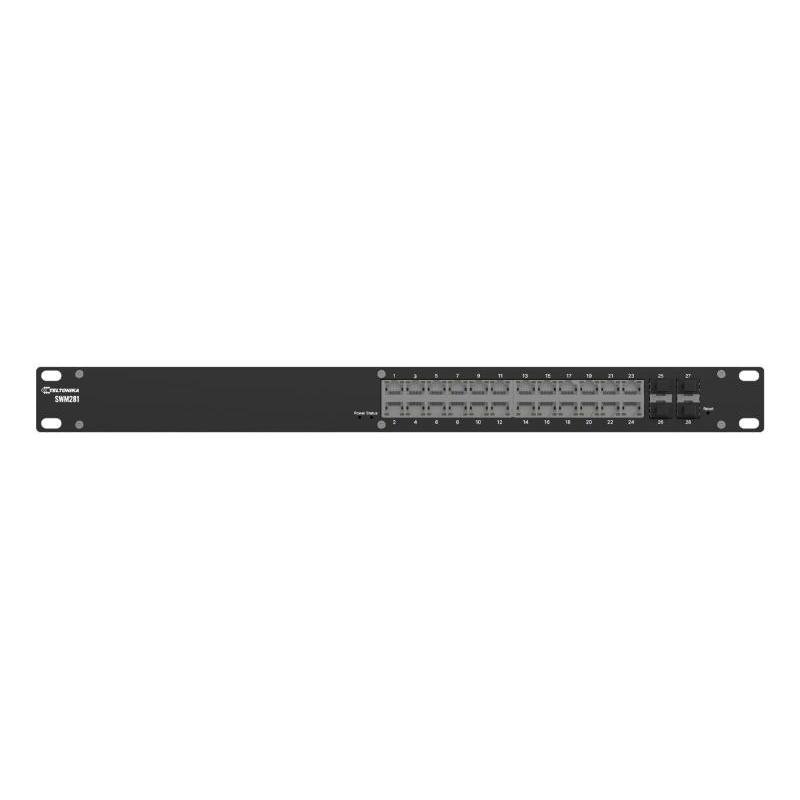

SWM281 Gigabit Ethernet managed switch
The SWM281 is an L2 managed switch with added L3 functionality, tailored for complex networking scenarios. With 24 Gigabit Ethernet ports and 4 dedicated SFP ports, it delivers high-bandwidth performance and reliable fibre optic communication for large-scale deployments. With support of PROFINET & other industrial protocols, this enterprise-grade 24-port switch ensures smooth integration into automated environments.

Forwarding rate83.33
ModelSWM281
Model nameSWM281
NameNET SWITCH 24PORT 10/100/1000/L2+ SWM281 TELTONIKA
PictureUrlhttps://static.elko.cloud/ProductImages/d1ab579b-5670-4291-9a04-22ebcdac98cf.Jpeg
Power sourceAC
Switch typeManaged
Switching capacity56
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/d1ab579b-5670-4291-9a04-22ebcdac98cf.Jpeg
Unit Calculated Volume0.01142
Unit Calculated Weight2
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://www.teltonika-networks.com/products/ethernet-switches/swm281
