USW-Pro-Max-24

USW-Pro-Max-24
USW-Pro-Max-24
  • Switch layer: L3
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Switching capacity: 112
Врз основа на 0 коментари. - Напиши коментар
53,063ден.
  • Достапност:
  • Бренд: UBIQUITI
  • Шифра: 411099
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Ubiquiti Pro Max 24. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 24. Switching capacity: 112 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC/DC. Rack mounting, Form factor: 1U
  • Vendor Homepage: https://eu.store.ui.com/eu/en/pro/products/usw-pro-max-24
  • Name: NET SWITCH 24PORT 2.5GBE/USW-PRO-MAX-24 UBIQUITI
  • Category Code: SWI
  • Model: USW-Pro-Max-24
  • Model name: Pro Max 24
  • Switch layer: L3
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
  • Gigabit Ethernet (copper) ports quantity: 16
  • 2.5G Ethernet (copper) ports quantity: 8
  • SFP+ module slots quantity: 2
  • Power connector: AC/DC
  • Networking standards: IEEE 802.1x
  • 10G support: Yes
  • Port mirroring: Yes
  • Broadcast storm control: Yes
  • Flow control support: Yes
  • Rate limiting: Yes
  • VLAN support: Yes
  • Virtual LAN features: Voice VLAN
  • Switching capacity: 112
  • Throughput: 56
  • Static route: Yes
  • Jumbo frames support: Yes
  • DHCP features: DHCP relay/DHCP snooping
  • IGMP snooping: Yes
  • Loop protection: Yes
  • Rack mounting: Yes
  • Stackable: Yes
  • Form factor: 1U
  • Product colour: Grey
  • Housing material: SGCC
  • Reset button: Yes
  • LED indicators: Link/Network/Speed/Status
  • Display type: LCM
  • Power source: AC/DC
  • Power supply included: Yes
  • Redundant power supply (RPS) support: Yes
  • AC input voltage: 100 - 240
  • AC input frequency: 50/60
  • Power consumption (max): 50
  • Operating temperature (T-T): -5 - 40
  • Operating relative humidity (H-H): 10 - 90
  • Width: 442.4
  • Depth: 325
  • Height: 43.7
  • Weight: 4300
  • Cables included: Power
  • Rack mount kit: Yes
  • Sustainability certificates: CE/Federal Communications Commission (FCC)
  • Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)
  • Units per Pallet: 0
  • Units per Shipping Box: 2
  • Unit Calculated Volume: 0.03225
  • Unit Calculated Weight: 5.85
Specifications
10G supportYes
2.5G Ethernet (copper) ports quantity8
AC input frequency50/60
AC input voltage100 - 240
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
Broadcast storm controlYes
Cables includedPower
Compliance certificatesCE/Federal Communications Commission (FCC)/Industry Canada (IC)
Depth325
DHCP featuresDHCP relay/DHCP snooping
Display typeLCM
Flow control supportYes
Form factor1U
Gigabit Ethernet (copper) ports quantity16
Height43.7
Housing materialSGCC
IGMP snoopingYes
Jumbo frames supportYes
LED indicatorsLink/Network/Speed/Status
Loop protectionYes
Networking standardsIEEE 802.1x
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-5 - 40
Port mirroringYes
Power connectorAC/DC
Power consumption (max)50
Power supply includedYes
Product colourGrey
Rack mount kitYes
Rack mountingYes
Rate limitingYes
Redundant power supply (RPS) supportYes
Reset buttonYes
SFP+ module slots quantity2
StackableYes
Static routeYes
SummaryUbiquiti Pro Max 24. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 24. Switching capacity: 112 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC/DC. Rack mounting, Form factor: 1U
Sustainability certificatesCE/Federal Communications Commission (FCC)
Switch layerL3
Throughput56
Virtual LAN featuresVoice VLAN
VLAN supportYes
Weight4300
Width442.4
Specs
Category CodeSWI
Description

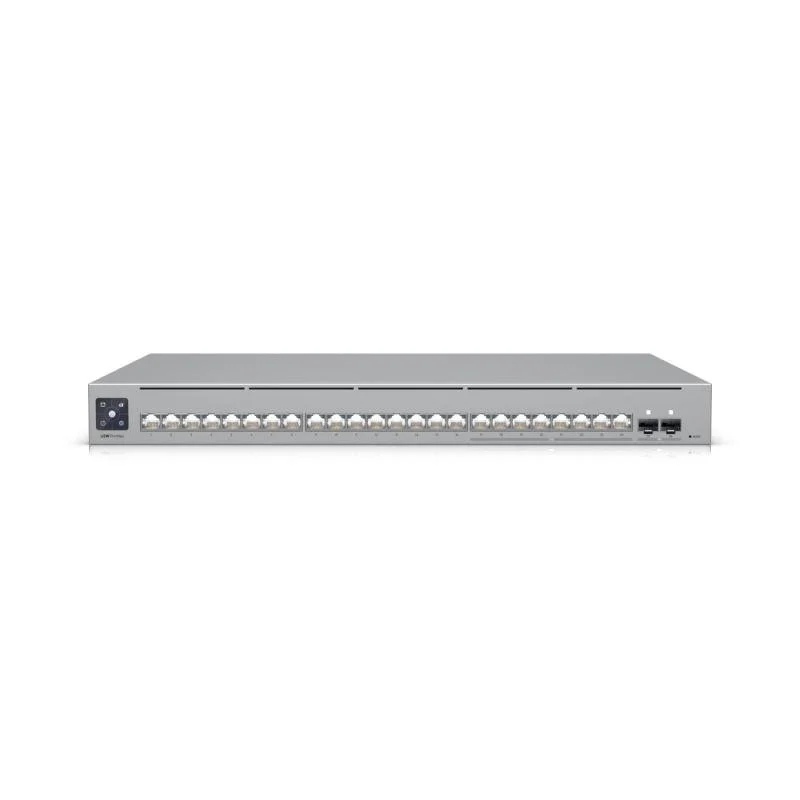

A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE.

  • Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
  • (8) 2.5 GbE RJ45 ports
  • (16) GbE RJ45 ports
  • (2) 10G SFP+ ports
  • DC power backup ready
  • Managed with UniFi Network 8.0.24 and later

ModelUSW-Pro-Max-24
Model namePro Max 24
NameNET SWITCH 24PORT 2.5GBE/USW-PRO-MAX-24 UBIQUITI
PictureUrlhttps://static.elko.cloud/ProductImages/3f6df2c7-b455-42fd-9f7f-87138b412d6b.Jpeg
Power sourceAC/DC
Switching capacity112
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/3f6df2c7-b455-42fd-9f7f-87138b412d6b.Jpeg
Unit Calculated Volume0.03225
Unit Calculated Weight5.85
Units per Pallet0
Units per Shipping Box2
Vendor Homepagehttps://eu.store.ui.com/eu/en/pro/products/usw-pro-max-24
