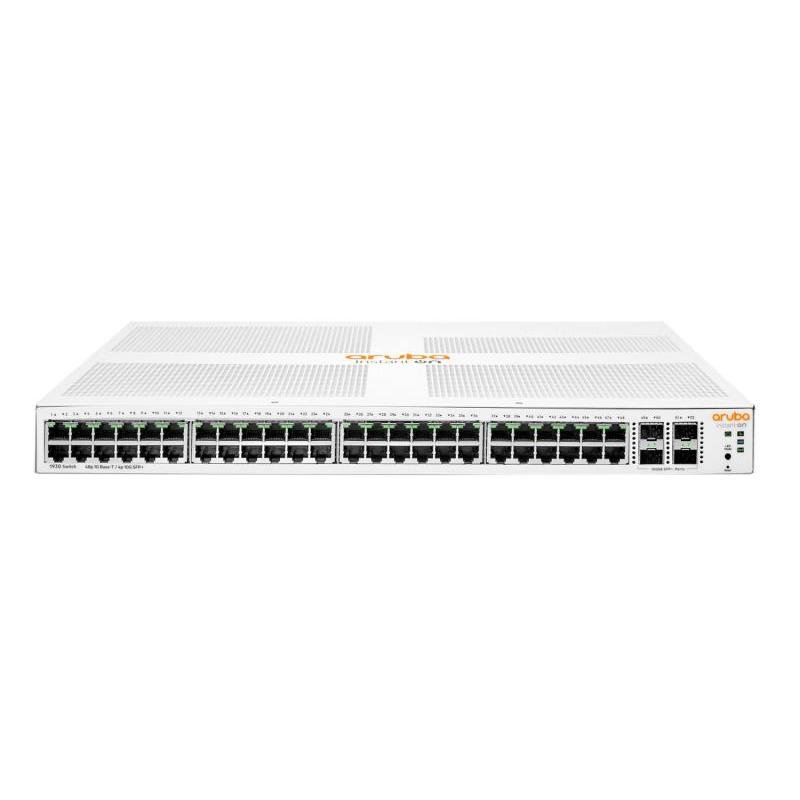

NET SWITCH 48PORT 1000M 4SFP+/ION 1930 JL685A ARUBA BY HPE

NET SWITCH 48PORT 1000M  4SFP+/ION 1930 JL685A ARUBA BY HPE
достава за 24h
NET SWITCH 48PORT 1000M 4SFP+/ION 1930 JL685A ARUBA BY HPE
  • Switch type: Managed
  • Switch layer: L2+
  • Basic switching RJ-45 Ethernet ports quantity: 48
  • Switching capacity: 176
33,509ден.
  • Достапност: Има залиха
  • Бренд: ARUBA BY HPE
  • Шифра: 455298
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
1

Technical Specifications

  • Summary: HPE Aruba Networking Aruba Instant On 1930. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z. Rack mounting, Form factor: 1U
  • Vendor Homepage: https://buy.hpe.com/uk/en/networking/switches/fixed-port-web-managed-ethernet-switches/aruba-1900-switch-products/aruba-instant-on-1930-switch-series/aruba-instant-on-1930-48g-4sfp-sfp-switch/p/JL685A
  • Name: NET SWITCH 48PORT 1000M 4SFP+/ION 1930 JL685A ARUBA BY HPE
  • Category Code: SWI
  • Switch type: Managed
  • Switch layer: L2+
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 48
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP+ module slots quantity: 4
  • Networking standards: IEEE 802.1p/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3x/IEEE 802.3z
  • 10G support: Yes
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-sensing: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Number of VLANs: 256
  • Switching capacity: 176
  • Throughput: 130.95
  • MAC address table: 16000
  • Latency (10-100 Mbps): 4.5
  • Latency (1 Gbps): 2.2
  • Latency (10 Gbps): 1.2
  • Packet buffer memory: 1.5
  • IGMP snooping: Yes
  • SSH/SSL support: Yes
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: White
  • Processor model: ARM Cortex-A9
  • Processor frequency: 800
  • Memory type: SDRAM
  • Internal memory: 512
  • Flash memory: 256
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Power consumption (max): 36.9
  • Operating temperature (T-T): 0 - 40
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 15 - 95
  • Storage relative humidity (H-H): 15 - 95
  • Width: 442.5
  • Depth: 282.4
  • Height: 43.9
  • Weight: 3130
  • Harmonized System (HS) code: 85176990
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0264
  • Unit Calculated Weight: 4
Specifications
10G supportYes
AC input frequency50 - 60
AC input voltage100 - 240
Auto MDI/MDI-XYes
Auto-sensingYes
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Depth282.4
Flash memory256
Flow control supportYes
Form factor1U
Full duplexYes
Harmonized System (HS) code85176990
Height43.9
IGMP snoopingYes
Internal memory512
Latency (1 Gbps)2.2
Latency (10 Gbps)1.2
Latency (10-100 Mbps)4.5
Link aggregationYes
MAC address table16000
Memory typeSDRAM
Networking standardsIEEE 802.1p/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3x/IEEE 802.3z
Number of VLANs256
Operating relative humidity (H-H)15 - 95
Operating temperature (T-T)0 - 40
Packet buffer memory1.5
Port mirroringYes
Power consumption (max)36.9
Power supply includedYes
Processor frequency800
Processor modelARM Cortex-A9
Product colourWhite
Quality of Service (QoS) supportYes
Rack mountingYes
Rate limitingYes
SFP+ module slots quantity4
Spanning tree protocolYes
SSH/SSL supportYes
Storage relative humidity (H-H)15 - 95
Storage temperature (T-T)-40 - 70
SummaryHPE Aruba Networking Aruba Instant On 1930. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z. Rack mounting, Form factor: 1U
Switch layerL2+
Throughput130.95
VLAN supportYes
Web-based managementYes
Weight3130
Width442.5
Specs
Category CodeSWI
Description

The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.

Features

Simplify Network Deployment and Management for Small Organizations
- The Aruba Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment.
- The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8G-, 24G-, and 48G-ports with and without class 4 PoE (i.e. PoE+).
- The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.
- The Aruba Instant On 1930 switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

Keep Your Business Protected with Integrated Security Features
- The Aruba Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
- Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.
- Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
- Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.

Deliver High Perfomance
- The Aruba Instant On 1930 switch series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.
- 8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.
- The 24- and 48-port models include 1G/10G SFP+ ports for reliable fiber connectivity and other connections across longer distances.
- The switch series is covered by the Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.

NameNET SWITCH 48PORT 1000M 4SFP+/ION 1930 JL685A ARUBA BY HPE
PictureUrlhttps://static.elko.cloud/ProductImages/bd28e97c-4e38-4fff-8d4b-03b59047d72f.Jpeg
Power sourceAC
Switch typeManaged
Switching capacity176
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/bd28e97c-4e38-4fff-8d4b-03b59047d72f.Jpeg
Unit Calculated Volume0.0264
Unit Calculated Weight4
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://buy.hpe.com/uk/en/networking/switches/fixed-port-web-managed-ethernet-switches/aruba-1900-switch-products/aruba-instant-on-1930-switch-series/aruba-instant-on-1930-48g-4sfp-sfp-switch/p/JL685A
