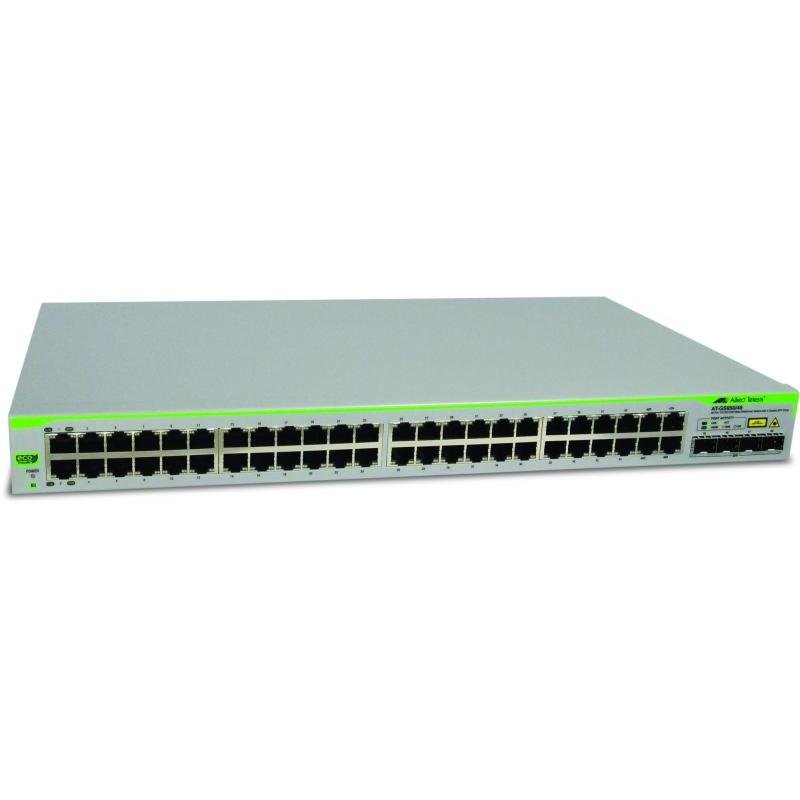

NET SWITCH 48PORT 10/100/1000T/+4SFP AT-GS950/48-50 ALLIED

NET SWITCH 48PORT 10/100/1000T/+4SFP AT-GS950/48-50 ALLIED
NET SWITCH 48PORT 10/100/1000T/+4SFP AT-GS950/48-50 ALLIED
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 48
Врз основа на 0 коментари. - Напиши коментар
53,262ден.
  • Достапност:
  • Бренд: ALLIED
  • Шифра: 164872
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Allied Telesis AT-GS950/48-50. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. MAC address table: 8000 entries. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Power connector: DC-in jack. Rack mounting, Form factor: 1U
  • Vendor Homepage: https://www.alliedtelesis.com/products/gs95048-0
  • Name: NET SWITCH 48PORT 10/100/1000T/+4SFP AT-GS950/48-50 ALLIED
  • Category Code: SWI
  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • MIB support: RFC 1213, RFC 1643, RFC 1493
  • Basic switching RJ-45 Ethernet ports quantity: 48
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Combo SFP ports quantity: 4
  • Console port: RJ-45
  • Power connector: DC-in jack
  • Networking standards: IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-TX
  • Port mirroring: Yes
  • Auto MDI/MDI-X: Yes
  • Broadcast storm control: Yes
  • Flow control support: Yes
  • Head-of-line (HOL) blocking: Yes
  • Link aggregation: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Throughput: 14.88
  • MAC address table: 8000
  • Jumbo frames support: Yes
  • Packet buffer memory: 6
  • DHCP features: DHCP client
  • IGMP snooping: Yes
  • Multicast support: Yes
  • Management protocols: IGMP, SNMP, FTP
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Grey
  • LED indicators: Yes
  • Internal memory: 32
  • Flash memory: 4
  • Mean time between failures (MTBF): 263000
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Operating temperature (T-T): 0 - 40
  • Storage temperature (T-T): -25 - 70
  • Operating relative humidity (H-H): 5 - 90
  • Storage relative humidity (H-H): 5 - 95
  • Width: 444
  • Depth: 322
  • Height: 43.5
  • Weight: 4050
  • Certification: UL 1950, FCC/EN55022, VCCI, C-Tick, EN60950, EN55024, CE, CSA, CUL
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01638
  • Unit Calculated Weight: 4.7
Specifications
AC input frequency50 - 60
AC input voltage100 - 240
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlYes
CertificationUL 1950, FCC/EN55022, VCCI, C-Tick, EN60950, EN55024, CE, CSA, CUL
Combo SFP ports quantity4
Console portRJ-45
Copper ethernet cabling technology1000BASE-T/100BASE-TX
Depth322
DHCP featuresDHCP client
Flash memory4
Flow control supportYes
Form factor1U
Harmonized System (HS) code85176990
Head-of-line (HOL) blockingYes
Height43.5
IGMP snoopingYes
Internal memory32
Jumbo frames supportYes
LED indicatorsYes
Link aggregationYes
MAC address table8000
Management protocolsIGMP, SNMP, FTP
Mean time between failures (MTBF)263000
MIB supportRFC 1213, RFC 1643, RFC 1493
Multicast supportYes
Networking standardsIEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Operating relative humidity (H-H)5 - 90
Operating temperature (T-T)0 - 40
Packet buffer memory6
Port mirroringYes
Power connectorDC-in jack
Product colourGrey
Quality of Service (QoS) supportYes
Rack mountingYes
Rate limitingYes
Spanning tree protocolYes
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-25 - 70
SummaryAllied Telesis AT-GS950/48-50. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. MAC address table: 8000 entries. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Power connector: DC-in jack. Rack mounting, Form factor: 1U
Switch layerL2
Throughput14.88
VLAN supportYes
Web-based managementYes
Weight4050
Width444
Specs
Category CodeSWI
Description

The Allied Telesis AT-GS950/48 eco-friendly WebSmart switch upholds the Allied Telesis commitment to environmentally friendly processes and products. It is designed to minimize power consumption through the use of a high-efficiency power supply and a low power chipset.

The AT-GS950/48 features 48 x 10/100/1000T ports and an additional four Gigabit SFP combo ports. This WebSmart switch integrates the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective solution for users to integrate management at the edge of their network. The AT-GS950/48 provides key features using the simple web-based management function, such as port-based VLANs, IEEE 802.1p QoS, port trunking/link aggregation, port mirroring, priority queues, and IEEE 802.1x security support.

NameNET SWITCH 48PORT 10/100/1000T/+4SFP AT-GS950/48-50 ALLIED
PictureUrlhttps://static.elko.cloud/ProductImages/49c94997-0578-42b4-bf4c-82e5c5e0d322.Jpeg
Switch typeManaged
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/49c94997-0578-42b4-bf4c-82e5c5e0d322.Jpeg
Unit Calculated Volume0.01638
Unit Calculated Weight4.7
Units per Shipping Box1
Vendor Homepagehttps://www.alliedtelesis.com/products/gs95048-0
