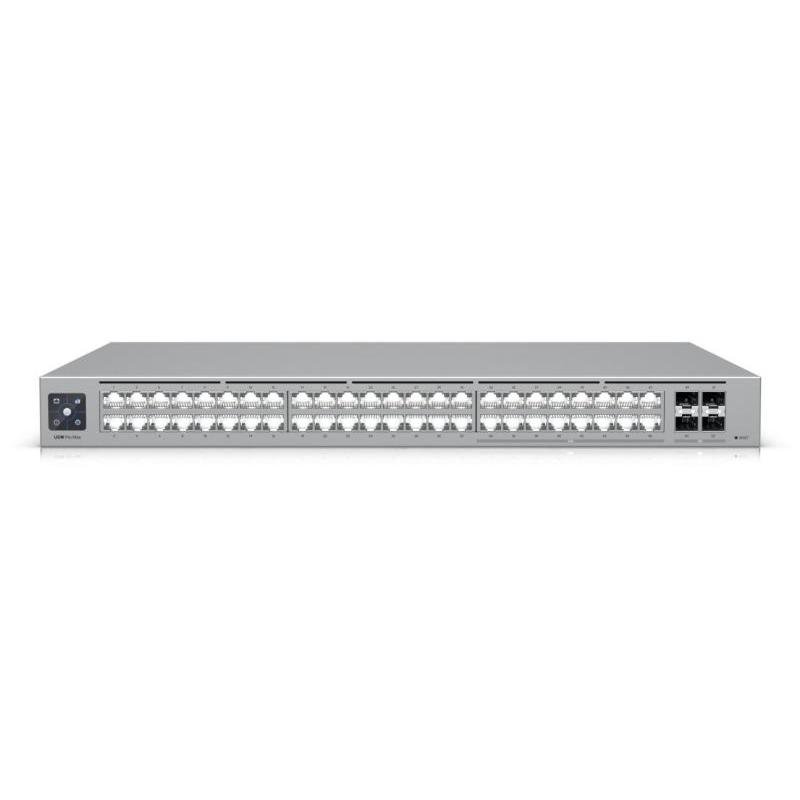

USW-PRO-MAX-48

Technical Specifications

• Summary: Ubiquiti Pro Max 48. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 224 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC/DC. Rack mounting, Form factor: 1U
• Vendor Homepage: https://eu.store.ui.com/eu/en/pro/products/usw-pro-max-48
• Name: NET SWITCH 48PORT 2.5GBE/USW-PRO-MAX-48 UBIQUITI
• Category Code: SWI
• Model: USW-PRO-MAX-48
• Model name: Pro Max 48
• Switch layer: L3
• Basic switching RJ-45 Ethernet ports quantity: 48
• Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
• Gigabit Ethernet (copper) ports quantity: 32
• 2.5G Ethernet (copper) ports quantity: 16
• SFP+ module slots quantity: 4
• Power connector: AC/DC
• Networking standards: IEEE 802.1x
• 10G support: Yes
• Port mirroring: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• Rate limiting: Yes
• VLAN support: Yes
• Virtual LAN features: Voice VLAN
• Switching capacity: 224
• Throughput: 112
• Forwarding rate: 166.656
• Static route: Yes
• Jumbo frames support: Yes
• DHCP features: DHCP relay/DHCP snooping
• IGMP snooping: Yes
• Loop protection: Yes
• Rack mounting: Yes
• Stackable: Yes
• Form factor: 1U
• Product colour: Grey
• Housing material: SGCC
• Reset button: Yes
• LED indicators: Link/Network/Speed/Status
• Display type: LCM
• Power source: AC/DC
• Power supply included: Yes
• Redundant power supply (RPS) support: Yes
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Power consumption (max): 100
• Operating temperature (T-T): -5 - 40
• Operating relative humidity (H-H): 10 - 90
• Width: 442.4
• Depth: 325
• Height: 43.7
• Weight: 4800
• Cables included: Power
• Mounting brackets included: Yes
• Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)
• Units per Shipping Box: 2
• Unit Calculated Volume: 0.03169
• Unit Calculated Weight: 6.58
