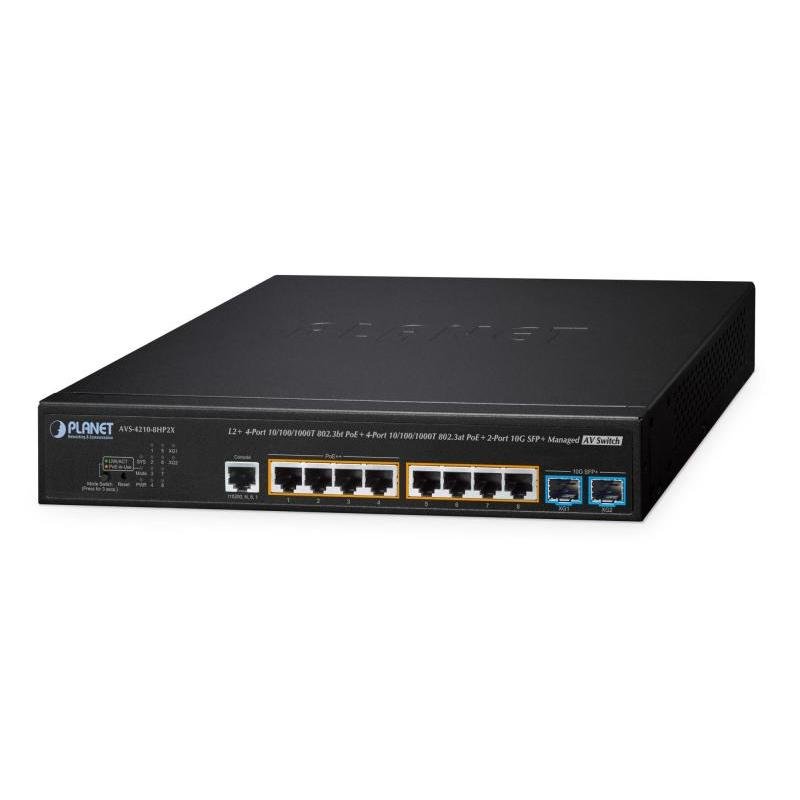

NET SWITCH 4PORT 1000M POE+/AVS-4210-8HP2X PLANET

Optimized Integration for Professional AV Applications

Planet's latest innovation, AVS-4210-8HP2X, is specifically designed for the evolving needs of the Professional AV industry. It provides IPv6/IPv4 dual stack management, a built-in Layer 3 static routing capability, and a powerful L2+/L4 Gigabit switching engine along with 8 10/100/1000BASE-T RJ45 ports and 2 10G SFP+ slots for higher uplink bandwidth. In the realm of Power over Ethernet (PoE), the AVS-4210-8HP2X offers robust IEEE 802.3bt PoE++ output on Ports 1-4, perfect for high-powered AV devices, while simultaneously providing IEEE 802.3at PoE+ support on Ports 5-8, making it versatile for a wide range of applications. The switch boasts a total 240-watt PoE budget, establishing it as a compact yet powerful solution capable of efficiently supplying power to a variety of devices such as cameras, speakers and displays in Pro AV applications.


Compact AV Switch Designed for Flexible Integration

In AV setups where space is limited and clean cable routing matters, the AVS-4210-8HP2X delivers both performance and practicality. Its compact design fits seamlessly on TV stands or media shelves, minimizing clutter while powering devices like PoE speakers or control panels with just a single Ethernet cable. Ideal for home theaters and multimedia installations, this switch helps create a streamlined AV environment without the complexity of traditional racks.


Streamline AV-over-IP Streaming with Simplified, Intuitive Web UI Configuration

Traditional switches typically require advanced networking know-how for AV-over-IP streaming, presenting a significant hurdle. Planet’s innovative AV switch, on the other hand, boasts a simplified, intuitive web interface, facilitating effortless adjustments to basic settings and enabling rapid AV-over-IP system deployment. This reduces the reliance on extensive technical skills, broadening access to AV networking. Additionally, it retains the standard switch setting UI, providing flexibility for users with a strong grasp of networking.


Ready-to-Use Multicast Management

IGMP snooping and MLD snooping are available immediately upon powering up the Pro AV switch. This feature ensures efficient management of multicast traffic, a critical aspect in AV networks where multiple streams of content are often delivered simultaneously. By pre-configuring these settings, the switch can intelligently manage bandwidth and optimize network performance, ensuring high-quality, uninterrupted audiovisual experiences.


Popular Pre-configured Audiovisual IP Networking Protocol

Planet’s Pro AV switch seamlessly integrates key Audio/Video IP Networking Protocols like Dante and NDI, enabling effortless plug-and-play functionality. This eliminates the complexity of configuring protocols, streamlining the setup process.

Dante is widely used in professional audio settings like live sound in residential AV systems, recording studios, broadcast, and commercial installations, allowing for flexible and scalable audio networking without the need for traditional, heavy multi-core audio cables. It supports various audio channels and can handle complex setups with ease, making it a popular choice in the AV industry.

On the other hand, NDI is designed to be easy to use and accessible, supporting multiple video standards and resolutions. It is particularly popular in broadcast and live event production due to its efficiency and flexibility, allowing for the easy setup and reconfiguration of video networks without the need for extensive cabling or specialized infrastructure. Planet’s Pro AV switch is designed to be compatible with NDI protocol.


Power-over-Ethernet for Flexibility and Remote Control

In modern Pro AV setups, using PoE for devices such as microphones, speakers, and displays offers ease of installation and enhanced flexibility. Planet’s intelligent PoE management, including PD Alive Check, can automatically detect and restart non-responsive devices, simplifying maintenance and improving efficiency and convenience.


Link Aggregation & 10G SFP+ Connectivity on High-bandwidth Networks

In Pro AV applications, scenarios often demand high-bandwidth connectivity, such as video streaming or transferring large video files across multiple switches in studio, theater or auditorium setups. Link aggregation plays a vital role in these scenarios, ensuring that networks can manage high traffic loads efficiently without experiencing bottlenecks which is crucial for maintaining the quality and consistency of AV streams. Employing Link Aggregation technology alongside 10G SFP+ connectivity offers an unparalleled, streamlined experience, enhancing efficiency and performance in ways previously unimagined.


Layer 3 IPv4 and IPv6 VLAN Routing for Secure and Flexible Management

The AVS-4210-8HP2X switch not only provides ultra high transmission performance, and excellent Layer 2 and Layer 4 technologies, but also Layer 3 IPv4 and IPv6 VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexibly-managed and simple networking application.


Robust Layer 2 Features

The AVS-4210-8HP2X can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the AVS-4210-8HP2X allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.


Remote Management Solution

PLANET's Universal Network Management System (UNI-NMS) and CloudNMS app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudNMS app, all kinds of businesses can now be speedily and efficiently managed from one platform.


PLANET CloudNMS – Cloud-Based Universal Network Management

PLANET’s CloudNMS platform and mobile app empower IT staff to remotely manage all network devices and Powered Devices (PDs) in real time. Designed for enterprises and industries, CloudNMS minimizes the need for on-site troubleshooting by providing centralized monitoring, fault detection, and instant alerts.

With CloudNMS, businesses can manage diverse network deployments more efficiently, securely, and intelligently—all from a single cloud-based platform.





Learn more: https://www.planet.com1.tw/en/product/avs-4210-8hp2x

• Physical Port
• ．4 10/100/1000BASE-T ports with 95W 802.3bt PoE++ injector function (Ports 1 to 4)
• ．4 10/100/1000BASE-T ports with 32W 802.3at PoE+ injector function (Ports 5 to 8)
• ．2 10GBASE-SR/LR SFP+ slots, compatible with 100/1G/2.5G BASE-X SFP transceivers (Ports XG1 to XG2)
• ．RJ45 to DB9 console interface for switch basic management and setup
• Pro AV Design
• ．Dual UI design features a streamlined Pro AV interface and a conventional Standard UI
• ．Pre-configured IGMP snooping enables instant multicasting functionality upon powering on
• ．Pre-configured Dante and NDI templates simplify the configuration process for immediate plug-and-play capability
• ．Fanless mode eliminates the fan noise, ensuring disturbance-free operation
• Switching
• ．Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
• ．IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• ．16K MAC address table size
• ．12K jumbo frame
• ．Automatic address learning and address aging
• Some of the features listed below are only available in the standard UI
• Power over Ethernet
• ．Compliant with IEEE 802.3bt Power over Ethernet Plus Plus
• ．4 ports supporting IEEE 802.3bt PoE++ , with each offering up to 95 watts (ports 1-4)
• ．4 ports supporting IEEE 802.3at PoE+, with each offering up to 32 watts (ports 5-8)
• ．Total PoE power budget of 240 watts
• ．Fanless mode
• ．Automatic detection of powered devices (PD)
• ．Built-in circuit protection to prevent power interference between ports
• ．Remote power feeding up to 100 meters
• ．Advanced PoE management capabilities:
• ．．Total PoE power budget control
• ．．Per port PoE function enable/disable
• ．．PoE port power feeding priority
• ．．Per PoE port power limitation
• ．．Detection of PD classification
• ．Intelligent PoE features
• ．．PD alive check
• ．．PoE schedule
• ．．Scheduled power recycling
• Layer 3 IP Routing Features
• ．Supports maximum 32 static routes and route summarization
• ．Routing interface provides per VLAN routing mode
• Layer 2 Features
• ．Supports VLAN
• ．Supports Spanning Tree Protocol
• ．Supports Link Aggregation
• ．Supports port mirror (many-to-1)
• ．Loop protection to avoid broadcast loops
• ．Supports ERPS (Ethernet Ring Protection Switching)
• ．Link Layer Discovery Protocol (LLDP)
• Quality of Service
• ．Ingress and egress rate limit per port bandwidth control
• ．Storm control support
• ．．Broadcast/Unknown unicast/Unknown multicast
• ．Traffic classification
• ．Strict priority and Weighted Round Robin (WRR) CoS policies
