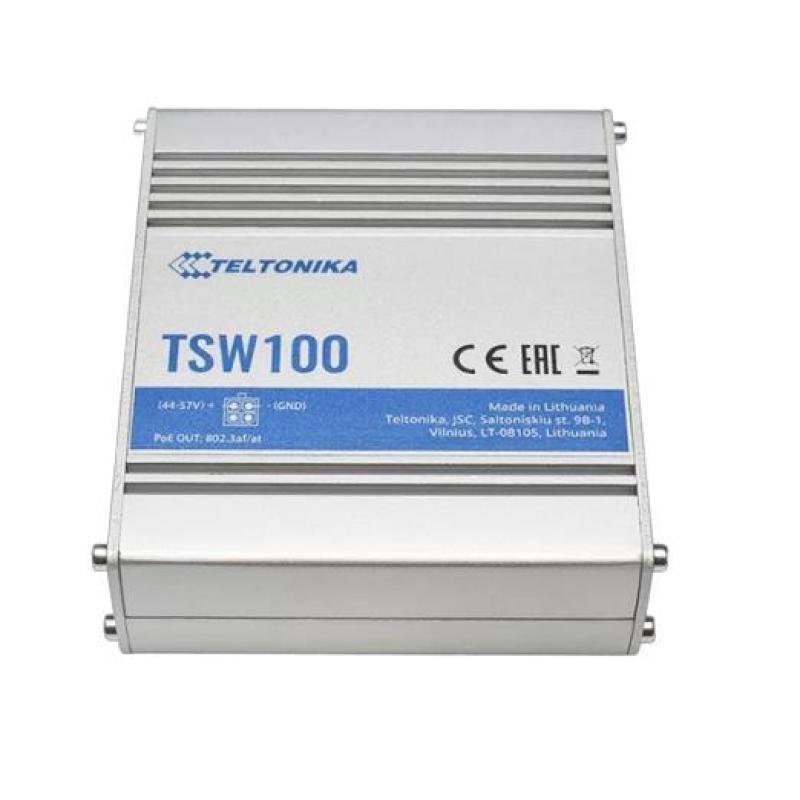

NET SWITCH 5PORT 10/100/1000/POE+ TSW100 TELTONIKA

NET SWITCH 5PORT 10/100/1000/POE+ TSW100 TELTONIKA
достава за 24h
NET SWITCH 5PORT 10/100/1000/POE+ TSW100 TELTONIKA
  • Basic switching RJ-45 Ethernet ports quantity: 5
Врз основа на 0 коментари. - Напиши коментар
5,252ден.
  • Достапност: Има залиха
  • Бренд: TELTONIKA
  • Шифра: 421417
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Teltonika TSW100. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3az. DC input voltage: 7 - 58 V. Power over Ethernet (PoE)
  • Vendor Homepage: https://teltonika-networks.com/product/tsw100/#features
  • Name: NET SWITCH 5PORT 10/100/1000/POE+ TSW100 TELTONIKA
  • Category Code: SWI
  • Model name: TSW100
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Networking standards: IEEE 802.3af/IEEE 802.3at/IEEE 802.3az
  • Auto MDI/MDI-X: Yes
  • MAC address table: 2000
  • Jumbo frames: 9216
  • Packet buffer memory: 0.128
  • Product colour: Blue/Metallic
  • Housing material: Aluminium
  • LED indicators: Power/Status
  • DC input voltage: 7 - 58
  • Power consumption (max): 129
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 4
  • Power over Ethernet (PoE) power per port: 30
  • Total Power over Ethernet (PoE) budget: 120
  • Operating temperature (T-T): -40 - 75
  • Operating relative humidity (H-H): 10 - 90
  • Width: 115
  • Depth: 95
  • Height: 32
  • Certification: CE/RED, EAC, RoHS, WEEE Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 EN 61000-4-2:2009 EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 EN 61000-4-3:2006 +
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00189
  • Unit Calculated Weight: 0.7
Specifications
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCE/RED, EAC, RoHS, WEEE Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 EN 61000-4-2:2009 EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 EN 61000-4-3:2006 +
DC input voltage7 - 58
Depth95
Harmonized System (HS) code85176990
Height32
Housing materialAluminium
Jumbo frames9216
LED indicatorsPower/Status
MAC address table2000
Networking standardsIEEE 802.3af/IEEE 802.3at/IEEE 802.3az
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-40 - 75
Packet buffer memory0.128
Power consumption (max)129
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Power over Ethernet (PoE) power per port30
Product colourBlue/Metallic
SummaryTeltonika TSW100. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3az. DC input voltage: 7 - 58 V. Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget120
Width115
Specs
Category CodeSWI
Description

TSW100 – 5-port, unmanaged full Gigabit Ethernet switch supporting Power-over-Ethernet (802.3af and 802.3at standards). This device is classified as power source equipment (PSE), and when used in this way, TSW100 switch enables centralization of the power supply, providing up to 30 watts of power per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.

Model nameTSW100
NameNET SWITCH 5PORT 10/100/1000/POE+ TSW100 TELTONIKA
PictureUrlhttps://static.elko.cloud/ProductImages/36d6e3be-f5ac-4f73-be8b-1e2d84a261b9.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/36d6e3be-f5ac-4f73-be8b-1e2d84a261b9.Jpeg
Unit Calculated Volume0.00189
Unit Calculated Weight0.7
Units per Shipping Box1
Vendor Homepagehttps://teltonika-networks.com/product/tsw100/#features
