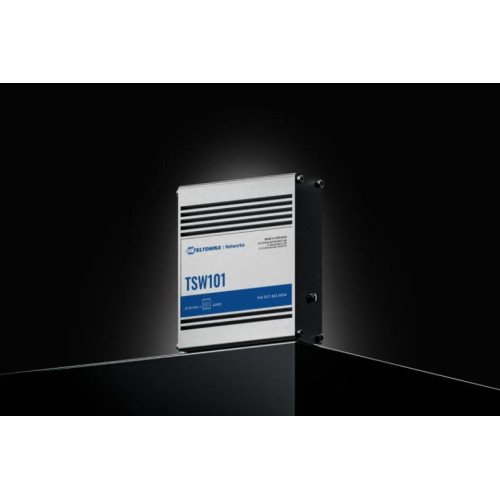

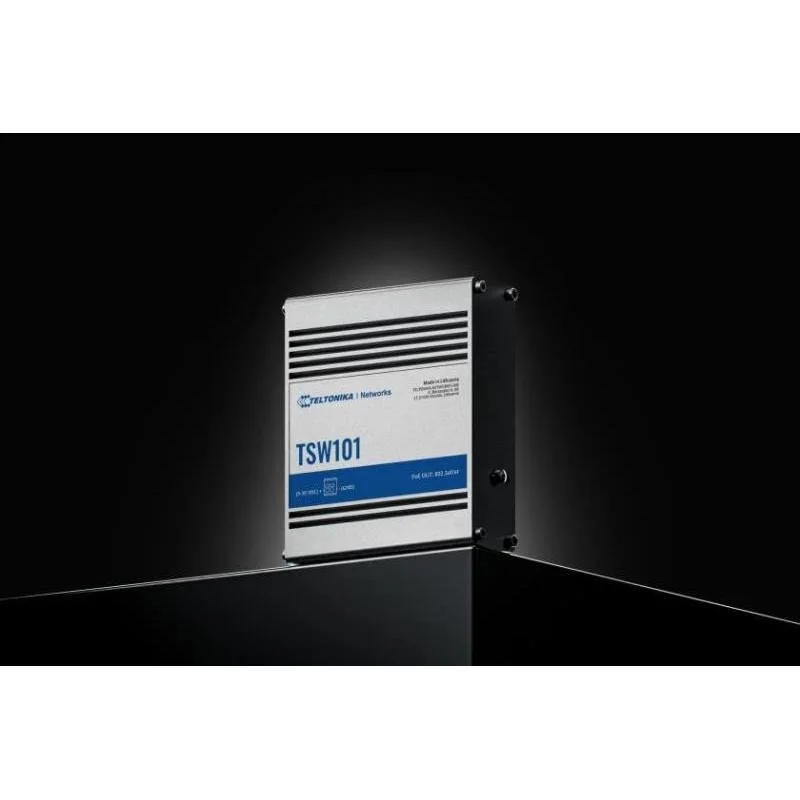

NET SWITCH 5PORT 10/100/1000/POE+ TSW101 TELTONIKA

Technical Specifications

• Summary: Teltonika TSW101. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. Power connector: Terminal block (2-pin). Power over Ethernet (PoE)
• Vendor Homepage: https://teltonika-networks.com/products/switches/tsw101
• Name: NET SWITCH 5PORT 10/100/1000/POE+ TSW101 TELTONIKA
• Category Code: SWI
• Model name: TSW101
• Basic switching RJ-45 Ethernet ports quantity: 5
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Power connector: Terminal block (2-pin)
• Networking standards: IEEE 802.3/IEEE 802.3az/IEEE 802.3u
• Auto MDI/MDI-X: Yes
• Ethernet LAN data rates: 10,100,1000
• Switching capacity: 10
• MAC address table: 2000
• Jumbo frames support: Yes
• Jumbo frames: 9216
• Product colour: Metallic
• Housing material: Aluminium
• LED indicators: Power/Status
• International Protection (IP) code: IP30
• Power source: DC
• Input voltage: 9 - 30
• Power consumption (typical): 0.64
• Power consumption (max): 2.31
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) type supported: Passive PoE
• Power over Ethernet (PoE) ports quantity: 4
• Power over Ethernet (PoE) power per port: 30
• Total Power over Ethernet (PoE) budget: 120
• Operating temperature (T-T): -40 - 75
• Operating relative humidity (H-H): 10 - 90
• Width: 115
• Depth: 32
• Height: 95
• Weight: 354
• Certification: CE, REACH, RoHS, WEEE TSW101 CE TSW101 UKCA TSW101 FCC TSW101 IC TSW101 CB TSW101 RCM E-Mark
• Harmonized System (HS) code: 851762
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00108
• Unit Calculated Weight: 0.4
