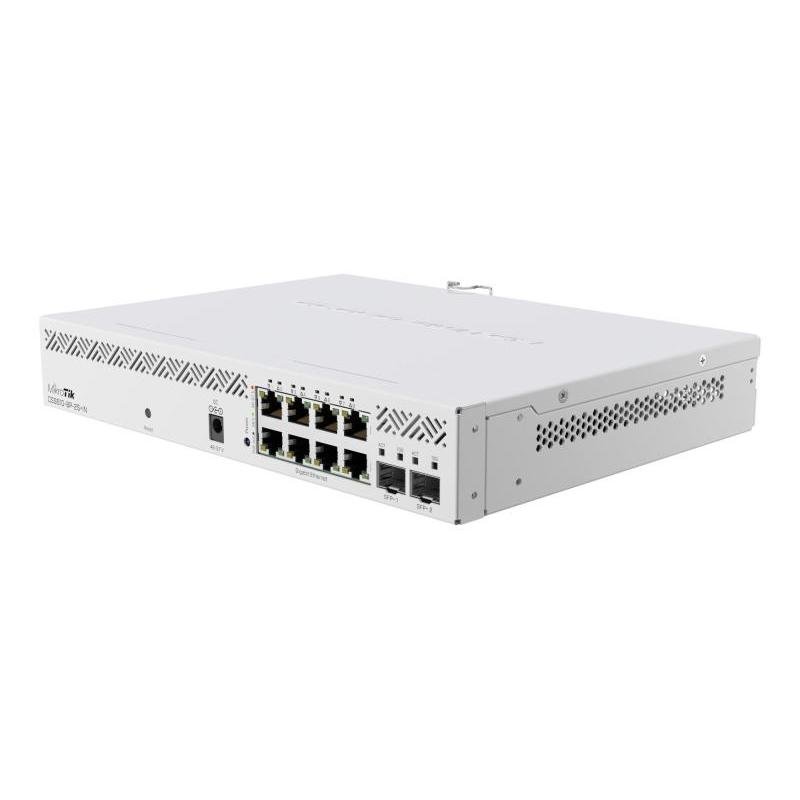

CSS610-8P-2S+IN

CSS610-8P-2S+IN
достава за 24h
CSS610-8P-2S+IN
  • Switch type: Managed
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Switching capacity: 56
Врз основа на 0 коментари. - Напиши коментар
14,845ден.
  • Достапност: Има залиха
  • Бренд: MIKROTIK
  • Шифра: 381200
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Mikrotik CSS610-8P-2S+IN. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP+ modules quantity: 2. Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 48 - 57 V. Power over Ethernet (PoE). Rack mounting
  • Vendor Homepage: https://mikrotik.com/product/css610_8p_2s_in#fndtn-downloads
  • Name: NET SWITCH 8PORT 1000M 2SFP+/CSS610-8P-2S+IN MIKROTIK
  • Category Code: SWI
  • Model: CSS610-8P-2S+IN
  • Switch type: Managed
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Installed SFP+ modules quantity: 2
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • 10G support: Yes
  • Broadcast storm control: Yes
  • VLAN support: Yes
  • Switching capacity: 56
  • MAC address filtering: Yes
  • Rack mounting: Yes
  • Product colour: White
  • Reset button: Yes
  • LED indicators: Yes
  • International Protection (IP) code: IP20
  • Operating system installed: SwitchOS Lite
  • Processor model: Marvell 88E6193X
  • Flash memory: 0.064
  • Fanless: Yes
  • Mean time between failures (MTBF): 200000
  • Power source: AC/DC
  • Power supply included: Yes
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • DC input voltage: 48 - 57
  • Input current: 2.2
  • Power consumption (max): 162
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) type supported: Passive PoE
  • Power over Ethernet (PoE) ports quantity: 8
  • Total Power over Ethernet (PoE) budget: 140
  • Storage temperature (T-T): -40 - 70
  • Width: 272
  • Depth: 216
  • Height: 50
  • Cables included: AC
  • Rack mount kit: Yes
  • Sustainability compliance: Yes
  • Compliance certificates: CE/RoHS
  • Certification: EAC
  • Units per Pallet: 0
  • Units per Shipping Box: 5
  • Unit Calculated Volume: 0.00741
  • Unit Calculated Weight: 2.2
Specifications
10G supportYes
AC input frequency50 - 60
AC input voltage100 - 240
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlYes
Cables includedAC
CertificationEAC
Compliance certificatesCE/RoHS
DC input voltage48 - 57
Depth216
FanlessYes
Flash memory0.064
Height50
Input current2.2
Installed SFP+ modules quantity2
International Protection (IP) codeIP20
LED indicatorsYes
MAC address filteringYes
Mean time between failures (MTBF)200000
Networking standardsIEEE 802.3af/IEEE 802.3at
Operating system installedSwitchOS Lite
Power consumption (max)162
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity8
Power over Ethernet (PoE) type supportedPassive PoE
Power supply includedYes
Processor modelMarvell 88E6193X
Product colourWhite
Rack mount kitYes
Rack mountingYes
Reset buttonYes
Storage temperature (T-T)-40 - 70
SummaryMikrotik CSS610-8P-2S+IN. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP+ modules quantity: 2. Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 48 - 57 V. Power over Ethernet (PoE). Rack mounting
Sustainability complianceYes
Total Power over Ethernet (PoE) budget140
VLAN supportYes
Width272
Specs
Category CodeSWI
Description

CSS610-8P-2S+IN is one of the most well-rounded switches on the market. It is a perfect fit for the most diverse setups: from home networks and small offices to hotels, call centers and so on. The unique combination of size, features, and price offers unbelievable scalability potential.

There are two SFP+ ports for 10 Gigabit fiber connectivity and eight Gigabit Ethernet ports with 802.3af/at PoE-out.

This switch is all about nice and easy setups. The compact form-factor means easier shipping and handling, while the lightweight SwOS means easier configuration. You can even configure this switch from your web browser! It gives you all the core functionality of a managed switch, and even more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitations, and even adjust some MAC and IP header fields.

But the real blessing is the combination of SFP+ and PoE-out Ethernet ports. With this setup, you can do all kinds of things on a tight budget. CSS610 has an impressive total PoE-out budget of 140 W, so you can use even in the most intense scenarios – like hotels, conference halls, or call centers! Use the PoE-out ports to connect the IP-phones while the SFP+ ports connect your primary server to the ISP. Or power a bunch of network cameras and instantly upload the footage to the cloud. And manage a cluster of wireless access points at the same time. Also, scalability is no longer a problem. With our pricing, you can afford a switch on every floor!

Like every toolbox needs screwdrivers and pliers, every network can use a solid PoE switch.

ModelCSS610-8P-2S+IN
NameNET SWITCH 8PORT 1000M 2SFP+/CSS610-8P-2S+IN MIKROTIK
PictureUrlhttps://static.elko.cloud/ProductImages/e99753dc-11a3-49f6-bb03-41420efc7deb.Jpeg
Power sourceAC/DC
Switch typeManaged
Switching capacity56
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/e99753dc-11a3-49f6-bb03-41420efc7deb.Jpeg
Unit Calculated Volume0.00741
Unit Calculated Weight2.2
Units per Pallet0
Units per Shipping Box5
Vendor Homepagehttps://mikrotik.com/product/css610_8p_2s_in#fndtn-downloads
