NET SWITCH 8PORT 1000M 2SFP/UNIFI US-8-150W UBIQUITI

NET SWITCH 8PORT 1000M 2SFP/UNIFI US-8-150W UBIQUITI
NET SWITCH 8PORT 1000M 2SFP/UNIFI US-8-150W UBIQUITI
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • SFP module slots quantity: 2
  • Switching capacity: 20
Врз основа на 0 коментари. - Напиши коментар
15,345ден.
  • Достапност:
  • Бренд: UBIQUITI
  • Шифра: 209725
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Ubiquiti UniFi US-8-150W. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16384 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE)
  • Vendor Homepage: https://ubiquitistore.com.au/product/ubiquiti-unifi-8-port-managed-poe-gigabit-switch-with-sfp-150w-us-8-150w-au/
  • Name: NET SWITCH 8PORT 1000M 2SFP/UNIFI US-8-150W UBIQUITI
  • Category Code: SWI
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 2
  • Networking standards: IEEE 802.1D/IEEE 802.1Q/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-sensing: Yes
  • Broadcast storm control: Yes
  • Ethernet LAN data rates: 10,100,1000
  • Flow control support: Yes
  • Link aggregation: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Number of VLANs: 255
  • Switching capacity: 20
  • Forwarding rate: 14.88
  • MAC address table: 16384
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
  • Authentication: Port-based authentication
  • Authentication type: IEEE 802.1x,RADIUS
  • Product colour: Grey
  • LED indicators: Activity/Link/PoE/Speed/Status
  • Built-in processor: Yes
  • Processor model: ARM Cortex-A9
  • Processor frequency: 400
  • Memory type: DDR3-SDRAM
  • Internal memory: 256
  • Flash memory: 32
  • Fanless: Yes
  • Power supply included: Yes
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Power consumption (max): 150
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) power per port: 34.2
  • Operating temperature (T-T): -5 - 45
  • Operating relative humidity (H-H): 5 - 95
  • Width: 235
  • Depth: 204
  • Height: 43
  • Weight: 1650
  • Certification: ETSI300-019-1.4 CE, FCC, IC
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.006044
  • Unit Calculated Weight: 2.4
Specifications
AC input frequency50 - 60
AC input voltage100 - 240
AuthenticationPort-based authentication
Authentication typeIEEE 802.1x,RADIUS
Auto MDI/MDI-XYes
Auto-sensingYes
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlYes
Built-in processorYes
CertificationETSI300-019-1.4 CE, FCC, IC
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Depth204
Ethernet LAN data rates10,100,1000
FanlessYes
Flash memory32
Flow control supportYes
Full duplexYes
Harmonized System (HS) code85176990
Height43
Internal memory256
Jumbo frames9216
Jumbo frames supportYes
LED indicatorsActivity/Link/PoE/Speed/Status
Link aggregationYes
MAC address table16384
Memory typeDDR3-SDRAM
Networking standardsIEEE 802.1D/IEEE 802.1Q/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Number of VLANs255
Operating relative humidity (H-H)5 - 95
Operating temperature (T-T)-5 - 45
Port mirroringYes
Power consumption (max)150
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port34.2
Power supply includedYes
Processor frequency400
Processor modelARM Cortex-A9
Product colourGrey
SFP module slots quantity2
Spanning tree protocolYes
SummaryUbiquiti UniFi US-8-150W. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16384 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE)
Switch layerL2
VLAN supportYes
Weight1650
Width235
Specs
Category CodeSWI
Description

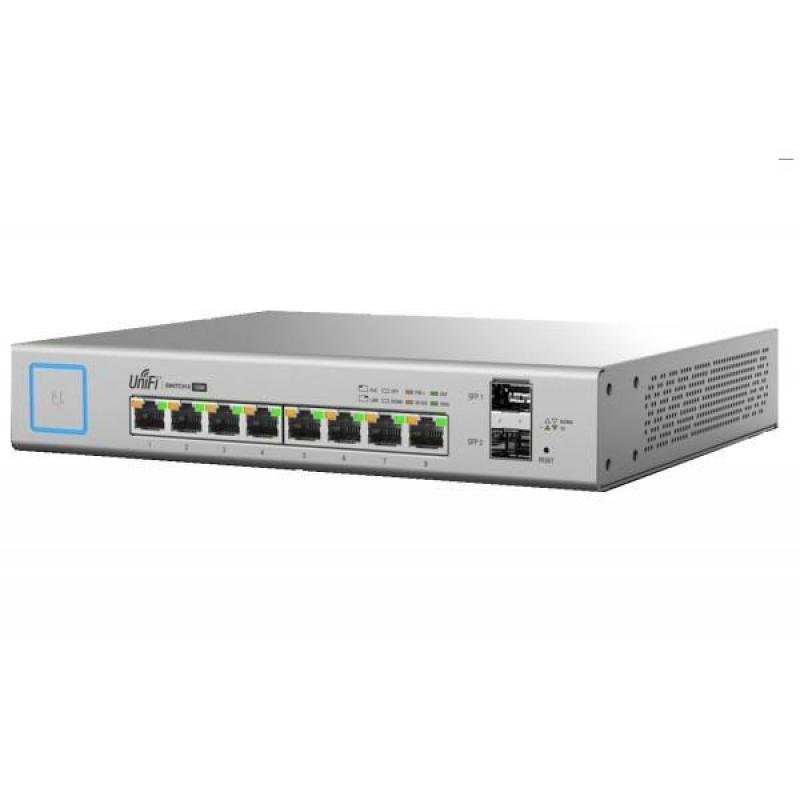

Expand and power your network with the UniFi® Switch 8 150W, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi® Switch 8 150W is a fully managed PoE+ Gigabit switch, delivering robust performance and intelligent switching for enterprise networks. The UniFi® Switch 8 150W offers the flexibility of (8) Gigabit RJ45 ports with auto-sensing PoE+ or 24V Passive PoE to power your UniFi access points and other PoE devices. Additionally, two SFP ports provide uplink and fiber connectivity options capable of delivering speeds of up to 1 Gbps each. The UniFi® Switch 8 150W supports up to 10 Gbps total, non-blocking line rate.

  • (8) Gigabit RJ45 Ethernet Ports
  • (2) 1G SFP Fiber Ports
  • Auto-Sensing IEEE 802.3af/at PoE
  • Configurable 24V Passive PoE
  • 10 Gbps Total, Non-Blocking Line Rate
  • Managed by UniFi Controller

Forwarding rate14.88
NameNET SWITCH 8PORT 1000M 2SFP/UNIFI US-8-150W UBIQUITI
PictureUrlhttps://static.elko.cloud/ProductImages/63da706c-63e3-4e2f-8c26-bd86970cff90.Jpeg
Switch typeManaged
Switching capacity20
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/63da706c-63e3-4e2f-8c26-bd86970cff90.Jpeg
Unit Calculated Volume0.006044
Unit Calculated Weight2.4
Units per Shipping Box1
Vendor Homepagehttps://ubiquitistore.com.au/product/ubiquiti-unifi-8-port-managed-poe-gigabit-switch-with-sfp-150w-us-8-150w-au/
