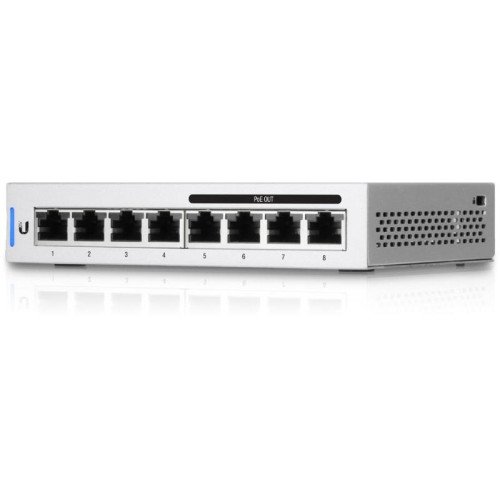

NET SWITCH 8PORT 1000M POE/UNIFI US-8-60W-5 UBIQUITI

NET SWITCH 8PORT 1000M POE/UNIFI US-8-60W-5 UBIQUITI
NET SWITCH 8PORT 1000M POE/UNIFI US-8-60W-5 UBIQUITI
  • Switch type: Managed
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Switching capacity: 16
Врз основа на 0 коментари. - Напиши коментар
42,522ден.
  • Достапност:
  • Бренд: UBIQUITI
  • Шифра: 230119
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Ubiquiti UniFi 5 x Switch 8. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3af. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
  • Vendor Homepage: https://www.ubnt.com/unifi-switching/unifi-switch-8/
  • Name: NET SWITCH 8PORT 1000M POE/UNIFI US-8-60W-5 UBIQUITI
  • Category Code: SWI
  • Switch type: Managed
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Power connector: DC-in jack
  • Networking standards: IEEE 802.1x/IEEE 802.3af
  • Port mirroring: Yes
  • Auto-sensing: Yes
  • Broadcast storm control: Yes
  • Flow control support: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Switching capacity: 16
  • Throughput: 8000
  • Jumbo frames support: Yes
  • Product colour: Grey
  • Housing material: Steel
  • Reset button: Yes
  • LED indicators: Activity/Link/PoE/Speed
  • Wall mountable: Yes
  • Output voltage: 48
  • Output current: 1.25
  • Power consumption (max): 12
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 4
  • Power over Ethernet (PoE) voltage range: 57 - 44
  • Power over Ethernet (PoE) power per port: 15.4
  • Total Power over Ethernet (PoE) budget: 60
  • Operating temperature (T-T): -5 - 45
  • Operating relative humidity (H-H): 5 - 95
  • Width: 148
  • Depth: 99.5
  • Height: 30.7
  • Weight: 432
  • Quick start guide: Yes
  • Certification: ETSI300-019-1.4, CE, FCC, IC
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 4
  • Unit Calculated Volume: 0.01481
  • Unit Calculated Weight: 1.14
Specifications
Auto-sensingYes
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlYes
CertificationETSI300-019-1.4, CE, FCC, IC
Depth99.5
Flow control supportYes
Harmonized System (HS) code85176990
Height30.7
Housing materialSteel
Jumbo frames supportYes
LED indicatorsActivity/Link/PoE/Speed
Networking standardsIEEE 802.1x/IEEE 802.3af
Operating relative humidity (H-H)5 - 95
Operating temperature (T-T)-5 - 45
Output current1.25
Output voltage48
Port mirroringYes
Power connectorDC-in jack
Power consumption (max)12
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Power over Ethernet (PoE) power per port15.4
Power over Ethernet (PoE) voltage range57 - 44
Product colourGrey
Quick start guideYes
Reset buttonYes
Spanning tree protocolYes
SummaryUbiquiti UniFi 5 x Switch 8. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3af. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
Throughput8000
Total Power over Ethernet (PoE) budget60
VLAN supportYes
Wall mountableYes
Web-based managementYes
Weight432
Width148
Specs
Category CodeSWI
Description

The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.

The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.

Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.

Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.

Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
