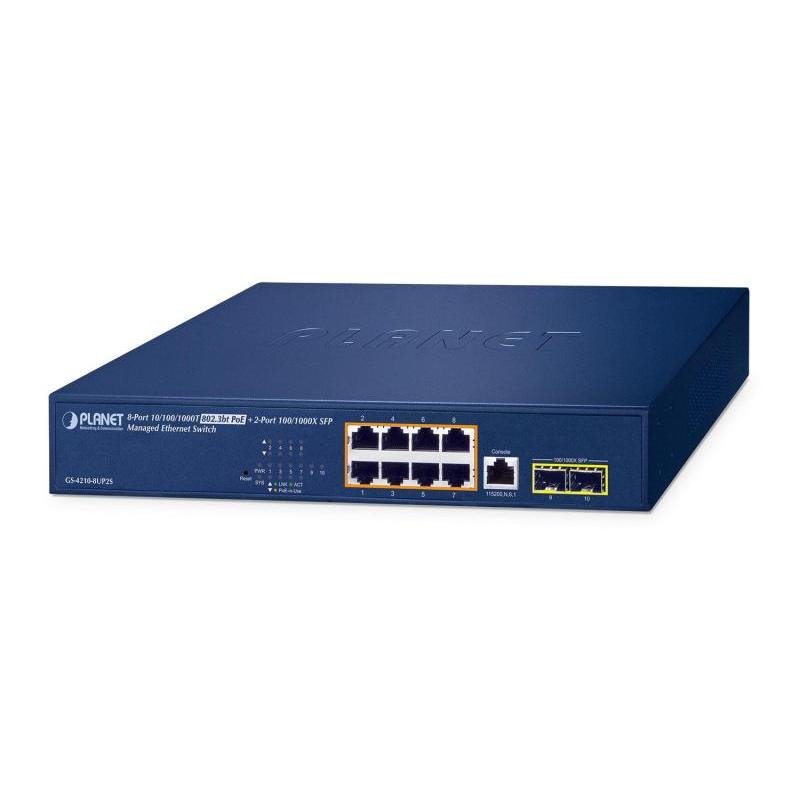

NET SWITCH 8PORT 1000M SFP/GS-4210-8UP2S PLANET

IEEE 802.3bt PoE++ Managed Switch with Advanced L2/L4 Switching and Security

PLANET GS-4210-8UP2S is an architecture-optimized 1U Gigabit IEEE 802.3bt PoE++ Managed Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 8 10/100/1000BASE-T ports featuring 95-watt 802.3bt PoE++ and 2 100/1000BASE-X SFP ports. With a total power budget of up to 180 watts for different kinds of PoE applications, the GS-4210-8UP2S provides a quick, safe and architecture-optimized 802.3bt PoE++ network solution for small businesses and enterprises.


Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. Both SSHv2 and TLSv1.2 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.


Redundant Ring, Fast Recovery for Critical Network Applications

The GS-4210-8UP2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.


IEEE 802.3bt PoE++ Solutions

The GS-4210-8UP2S supports the 802.3bt standard, supplying up to 95 watts per 802.3bt port for increased requirements of devices. It can offer more PoE applications, such as:

- PoE PTZ speed dome cameras
- Any network device that needs higher PoE power to work normally
- Thin-client
- AIO (All-in-One) touch PC
- Remote digital signage display


Built-in Unique PoE Functions for Powered Devices Management

Being the managed PoE switches for surveillance, wireless and VoIP networks, the GS-4210-8UP2S features the following special PoE management functions:

- PD alive check
- Scheduled power recycling
- PoE schedule
- PoE usage monitoring
- PoE extension
 

Intelligent Powered Device Alive Check

The GS-4210-8UP2S can be configured to monitor connected PD (Powered Device) status in real time via ping action. Once the PD stops working and responding, the GS-4210-8UP2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.


Scheduled Power Recycling

The GS-4210-8UP2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.


PoE Schedule for Energy Savings

Under the trend of energy savings worldwide and contributing to environmental protection, the GS-4210-8UP2S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or Enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.


PoE Usage Monitoring

Via the power usage chart in the web management interface, the GS-4210-8UP2S enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.


PoE+ Power and Ethernet Data Transmission Distance Extension

In the “Extend” operation mode, the GS-4210-8UP2S operates on a per-port basis at 10Mbps duplex operation but can support 50-watt PoE power output correspondingly over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the GS-4210-8UP2S provides an additional solution for 802.3at/bt PoE distance extension, thus saving the cost of Ethernet cable installation.


IPv6/IPv4 Dual Stack Management

Supporting both IPv6 and IPv4 protocols, the GS-4210-8UP2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.


Robust Layer 2 Features

The GS-4210-8UP2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the GS-4210-8UP2S allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.


Efficient Traffic Control

The GS-4210-8UP2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice and video solutions. The functionality includes broadcast/multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. It guarantees the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.


Powerful Security

The GS-4210-8UP2S offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based user authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.


Advanced IP Network Protection

The GS-4210-8UP2S also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before.


Efficient Management

For efficient management, the GS-4210-8UP2S is equipped with Command line, Web and SNMP management interfaces.

- With the built-in Web-based management interface, the GS-4210-8UP2S offers an easy-to-use, platform-independent management and configuration facility.
- For text-based management, it can be accessed via Telnet and the console port.
- By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.


Remote Management Solution

PLANET's Universal Network Management System (UNI-NMS) and CloudViewer/CloudViewerPro app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewer/CloudViewerPro app, all kinds of businesses can now be speedily and efficiently managed from one platform.


Flexibility and Extension Solution

The two mini-GBIC slots built in the GS-4210-8UP2S support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to above 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.


Intelligent SFP Diagnosis Mechanism

The GS-4210-8UP2S supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current and transceiver supply voltage.



Learn more: https://www.planet.com.tw/en/product/gs-4210-8up2s

• Physical Port
• ．8-port 10/100/1000BASE-T RJ45 copper with PoE injector function
• ．2 100/1000BASE-X SFP slots
• ．RJ45 console interface for switch basic management and setup
• Switching
• ．Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation, and auto MDI/MDI-X
• ．Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• ．IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• ．10K jumbo frame
• ．Automatic address learning and address aging
• ．Supports CSMA/CD protocol
• Power over Ethernet
• ．Complies with IEEE 802.3bt PoE++ standard PSE
• ．Backward compatible with IEEE 802.3at PoE+ and 802.3af Power over Ethernet
• ．Ports 1 to 8 support up to 95 watts
• ．Each PoE port supports 54V DC power to powered device
• ．180-watt PoE budget
• ．Auto detects powered device
• ．Circuit protection prevents power interference between ports
• ．Remote power feeding up to 100 meters in standard mode and 250m in extended mode
• ．PoE management
• ．Intelligent PoE features
• Layer 2 Features
• ．Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• ．High performance Store and Forward architecture, broadcast storm control, and runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth
• ．Supports VLAN
• ．Supports Spanning Tree Protocol
• ．Supports Link Aggregation
• ．Provides port mirror (many-to-1)
• ．Loop protection to avoid broadcast loops
• ．Supports ERPS (Ethernet Ring Protection Switching)
• Quality of Service
• ．Ingress and egress rate limit per port bandwidth control
• ．Storm control support
• ．．Broadcast/Unknown unicast/Unknown multicast
• ．Traffic classification
• ．．IEEE 802.1p CoS
• ．．TOS/DSCP/IP precedence of IPv4/IPv6 packets
• ．Strict priority and Weighted Round Robin (WRR) CoS policies
• Security
• ．Authentication
• ．．IEEE 802.1X port-based network access authentication
• ．．Built-in RADIUS client to cooperate with the RADIUS servers
• ．．RADIUS/TACACS+ login user access authentication
• ．Access control list
• ．．IPv4/IPv6 IP-based ACL
• ．．MAC-based ACL
• ．MAC security
• ．．Static MAC
• ．．MAC filtering
• ．Port security for source MAC address entries filtering
• ．DHCP snooping to filter distrusted DHCP messages
• ．Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• ．IP source guard prevents IP spoofing attacks
• ．DoS attack prevention
