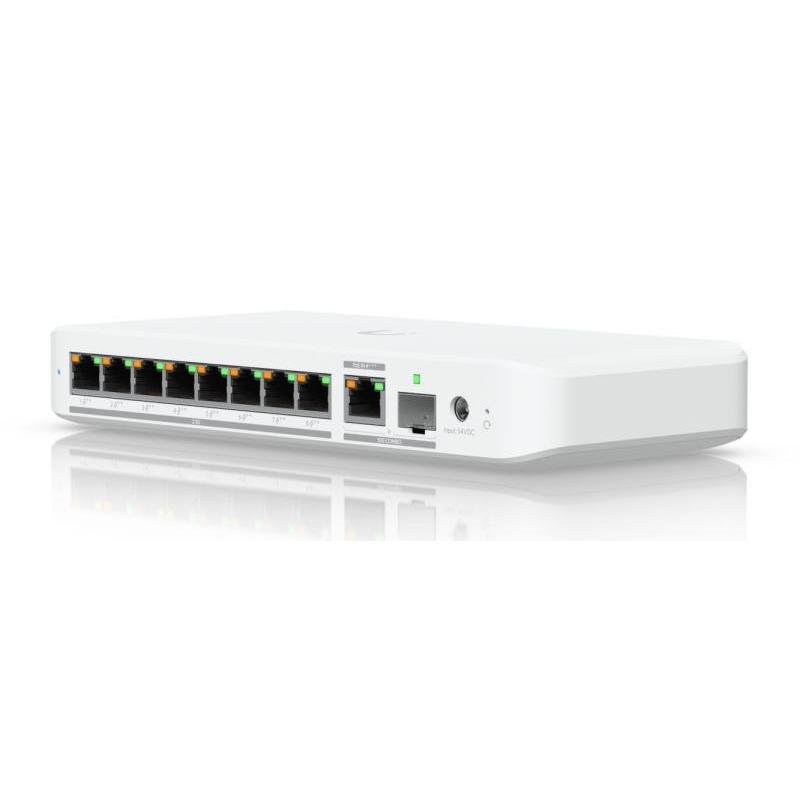

UBIQUITI Flex 2.5G PoE

UBIQUITI Flex 2.5G PoE
UBIQUITI Flex 2.5G PoE
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Switching capacity: 60
Врз основа на 0 коментари. - Напиши коментар
19,769ден.
  • Достапност:
  • Бренд: UBIQUITI
  • Шифра: 432881
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Ubiquiti UniFi Flex 2.5G PoE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Switching capacity: 60 Gbit/s. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable, Form factor: Desktop/Wall-Mounting
  • Vendor Homepage: https://eu.store.ui.com/eu/en/products/usw-flex-2-5g-8-poe
  • Name: NET SWITCH 8PORT 2.5GBE/USW-FLEX-2.5G-8-POE UBIQUITI
  • Category Code: SWI
  • Model: UBIQUITI Flex 2.5G PoE
  • Model name: USW-FLEX-2.5G-8-POE
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
  • 2.5G Ethernet (copper) ports quantity: 8
  • 10G Ethernet (copper) ports quantity: 1
  • SFP+ module slots quantity: 1
  • Power connector: DC-in jack
  • 10G support: Yes
  • Port mirroring: Yes
  • Broadcast storm control: Yes
  • Ethernet LAN data rates: 10,100,1000,2500
  • Flow control support: Yes
  • Rate limiting: Yes
  • Switching capacity: 60
  • Throughput: 30
  • Forwarding rate: 44.64
  • Jumbo frames support: Yes
  • Loop protection: Yes
  • Multicast support: Yes
  • Form factor: Desktop/Wall-Mounting
  • Product colour: White
  • Housing material: Polycarbonate (PC)
  • Reset button: Yes
  • LED indicators: Activity/Link/PoE/Power/Status
  • DIN rail mounting: Yes
  • Wall mountable: Yes
  • Power source: AC/DC/PoE
  • DC input voltage: 54
  • Input current: 3.9
  • Power consumption (max): 17
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • Power over Ethernet 4PPoE (PoE++) ports quantity: 1
  • Power over Ethernet (PoE) voltage: 57
  • Power over Ethernet (PoE) power per port: 15.4
  • Total Power over Ethernet (PoE) budget: 196
  • Operating temperature (T-T): -20 - 45
  • Operating relative humidity (H-H): 10 - 90
  • Width: 212.9
  • Depth: 99.4
  • Height: 33.5
  • Weight: 567
  • Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)
  • Units per Shipping Box: 12
  • Unit Calculated Volume: 0.002471
  • Unit Calculated Weight: 0.825
Specifications
10G Ethernet (copper) ports quantity1
10G supportYes
2.5G Ethernet (copper) ports quantity8
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
Broadcast storm controlYes
Compliance certificatesCE/Federal Communications Commission (FCC)/Industry Canada (IC)
DC input voltage54
Depth99.4
DIN rail mountingYes
Ethernet LAN data rates10,100,1000,2500
Flow control supportYes
Form factorDesktop/Wall-Mounting
Height33.5
Housing materialPolycarbonate (PC)
Input current3.9
Jumbo frames supportYes
LED indicatorsActivity/Link/PoE/Power/Status
Loop protectionYes
Multicast supportYes
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-20 - 45
Port mirroringYes
Power connectorDC-in jack
Power consumption (max)17
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port15.4
Power over Ethernet (PoE) voltage57
Power over Ethernet 4PPoE (PoE++) ports quantity1
Power over Ethernet plus (PoE+) ports quantity8
Product colourWhite
Rate limitingYes
Reset buttonYes
SFP+ module slots quantity1
SummaryUbiquiti UniFi Flex 2.5G PoE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Switching capacity: 60 Gbit/s. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable, Form factor: Desktop/Wall-Mounting
Switch layerL2
Throughput30
Total Power over Ethernet (PoE) budget196
Wall mountableYes
Weight567
Width212.9
Specs
Category CodeSWI
Description

Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter*.

*AC power adapter sold separately.


  • (8) 2.5 GbE PoE++ output ports
  • (1) 10 GbE PoE+++ input port for power / SFP+ port combo (57W PoE availability with PoE+++ input / 37W PoE availability with PoE++ input / 12W PoE availability with PoE+ input)
  • 196W PoE availability with optional AC power adapter

Forwarding rate44.64
ModelUBIQUITI Flex 2.5G PoE
Model nameUSW-FLEX-2.5G-8-POE
NameNET SWITCH 8PORT 2.5GBE/USW-FLEX-2.5G-8-POE UBIQUITI
PictureUrlhttps://static.elko.cloud/ProductImages/3b6fc30f-fd8f-40cc-b651-394f53eb09a5.Jpeg
Power sourceAC/DC/PoE
Switch typeManaged
Switching capacity60
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/3b6fc30f-fd8f-40cc-b651-394f53eb09a5.Jpeg
Unit Calculated Volume0.002471
Unit Calculated Weight0.825
Units per Shipping Box12
Vendor Homepagehttps://eu.store.ui.com/eu/en/products/usw-flex-2-5g-8-poe
