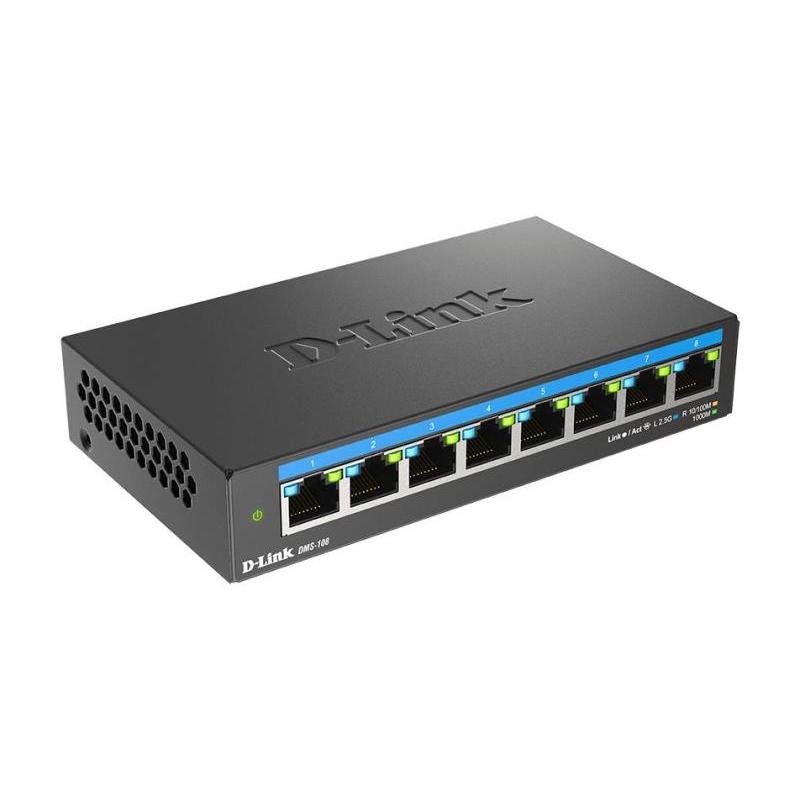

NET SWITCH 8PORT 2.5GE/DMS-108/E D-LINK

NET SWITCH 8PORT 2.5GE/DMS-108/E D-LINK
NET SWITCH 8PORT 2.5GE/DMS-108/E D-LINK
  • Switch type: Unmanaged
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Switching capacity: 40
Врз основа на 0 коментари. - Напиши коментар
17,363ден.
  • Достапност:
  • Бренд: D-LINK
  • Шифра: 436643
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: D-Link 8-Port 2.5G Multi-Gigabit Desktop Switch. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V
  • Vendor Homepage: https://www.dlink.com/en/products/dms-108-8-port-multi-gigabit-unmanaged-switch
  • Name: NET SWITCH 8PORT 2.5GE/DMS-108/E D-LINK
  • Category Code: SWI
  • Model name: DMS-108
  • Switch type: Unmanaged
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
  • 2.5G Ethernet (copper) ports quantity: 8
  • Networking standards: IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3bz/IEEE 802.3u/IEEE 802.3x
  • Auto MDI/MDI-X: Yes
  • Flow control support: Yes
  • MAC address auto-learning supported: Yes
  • Switching capacity: 40
  • Forwarding rate: 29.76
  • MAC address table: 4000
  • Store-and-forward: Yes
  • Number of queues: 8
  • Packet buffer memory: 8.1
  • IGMP snooping: Yes
  • Multicast support: Yes
  • Stackable: Yes
  • Product colour: Black
  • LED indicators: Activity/Link/Power
  • Fanless: Yes
  • Mean time between failures (MTBF): 724033.96
  • Power source: DC
  • Power supply included: Yes
  • DC input voltage: 12
  • Input current: 1
  • Power consumption (typical): 8.586
  • Operating temperature (T-T): 0 - 40
  • Storage temperature (T-T): -10 - 70
  • Operating relative humidity (H-H): 10 - 90
  • Storage relative humidity (H-H): 5 - 90
  • Heat dissipation: 29.3
  • Width: 145
  • Depth: 82
  • Height: 28
  • Weight: 343
  • Sustainability compliance: Yes
  • Compliance certificates: BSMI/CE/Low Voltage Directive (LVD)/RoHS
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00152
  • Unit Calculated Weight: 0.5
Specifications
2.5G Ethernet (copper) ports quantity8
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
Compliance certificatesBSMI/CE/Low Voltage Directive (LVD)/RoHS
DC input voltage12
Depth82
FanlessYes
Flow control supportYes
Heat dissipation29.3
Height28
IGMP snoopingYes
Input current1
LED indicatorsActivity/Link/Power
MAC address auto-learning supportedYes
MAC address table4000
Mean time between failures (MTBF)724033.96
Multicast supportYes
Networking standardsIEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3bz/IEEE 802.3u/IEEE 802.3x
Number of queues8
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 40
Packet buffer memory8.1
Power consumption (typical)8.586
Power supply includedYes
Product colourBlack
Quality of Service (QoS) supportYes
StackableYes
Storage relative humidity (H-H)5 - 90
Storage temperature (T-T)-10 - 70
Store-and-forwardYes
SummaryD-Link 8-Port 2.5G Multi-Gigabit Desktop Switch. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V
Sustainability complianceYes
Switch layerL2
Weight343
Width145
Specs
Category CodeSWI
Description

More ports. Multi-Gigabit Ethernet.
Maximise network throughput with 2.5Gbps Multi-Gigabit Ethernet on each port of this compact 8-port switch. Whether it’s to connect to your core or create a network between devices, now you can easily start sharing an internet connection, files, music, and video, or for gaming without bottlenecks.

2.5 Gigabit Ethernet
Save time transferring large files and improve sharing and productivity

Effortless multi-Gigabit networking
Easily upgrade or extend your home or small business network

Compact Metal Housing
Sturdy, compact metal housing with fanless design for silent operation

Energy Efficient Design
Automatic power saving features to reduce power usage

Plug-and-pay convenience.
The DMS-108 is a plug-and-play device that requires no configuration to get started. Plug-and-play makes it easy to instantly create a network without any technical knowledge.

Effortless traffic optimisation.
With 2.5 Gigabit transfer speeds from every port, you can rapidly transfer files between connected servers and network attached storage (NAS) to computers. The Quality of Service (QoS), and Flow Control features automatically prioritises important data for efficient delivery. And the IGMP Snooping function reduces unwanted multicast traffic so you can enjoy seamless video streaming and IPTV viewing experiences.

Designed for life, built to last.
The DMS-108 has a sturdy and compact metal housing to ensure the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.

Energy Saving.
The DMS-108 is designed with energy efficiency in mind. The fanless design eliminates a common point of failure and means the switch can be placed virtually anywhere and operate silently. The Link Status detection feature of the switch saves power by automatically powering down ports that are inactive or not connected, and it supports the IEEE 802.3az Energy-Efficient Ethernet standard.

Ready for Wi-Fi 6.
You can add a Wi-Fi 6 Access Point to your network to any of the 2.5 Gbps ports to maximise throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, allowing your network to take full advantage of the efficiency and speeds provided by Wi-Fi 6.

  • x8 2.5Gbps Ethernet ports
  • 40 Gbps switching capacity
  • IGMP Snooping
  • QoS & Flow Control
  • Durable metal housing
  • Energy efficient, fanless
  • Plug & play installation
  • Ideal for Wi-Fi 6

Forwarding rate29.76
Model nameDMS-108
NameNET SWITCH 8PORT 2.5GE/DMS-108/E D-LINK
PictureUrlhttps://static.elko.cloud/ProductImages/7c4a9e6f-7ec6-4f21-91a4-3aa30014d07e.Jpeg
Power sourceDC
Switch typeUnmanaged
Switching capacity40
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/7c4a9e6f-7ec6-4f21-91a4-3aa30014d07e.Jpeg
Unit Calculated Volume0.00152
Unit Calculated Weight0.5
Units per Shipping Box1
Vendor Homepagehttps://www.dlink.com/en/products/dms-108-8-port-multi-gigabit-unmanaged-switch
