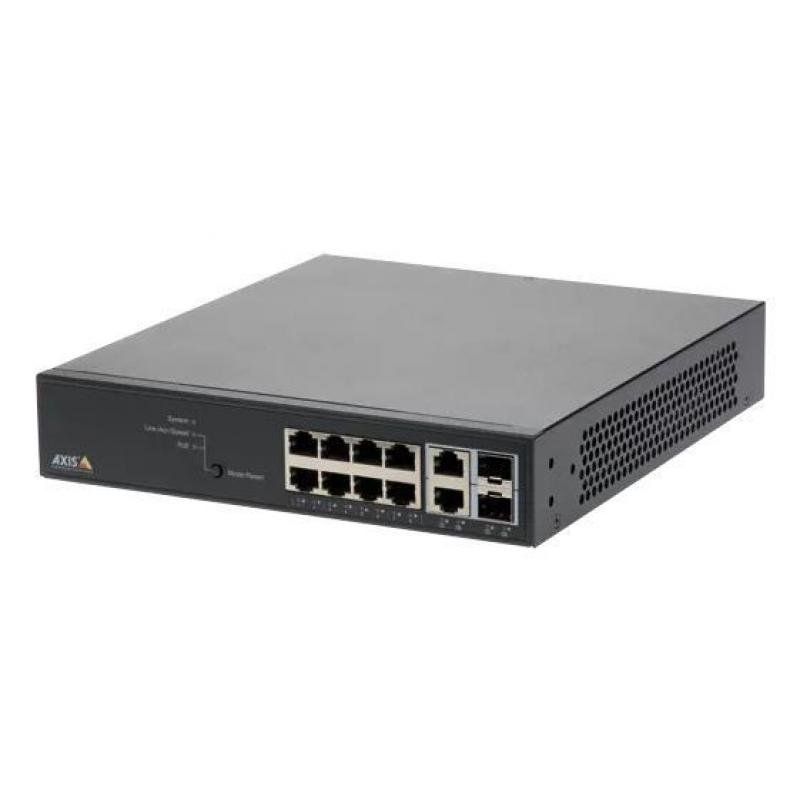

NET SWITCH 8PORT POE+ T8508/01191-002 AXIS

NET SWITCH 8PORT POE+ T8508/01191-002 AXIS
NET SWITCH 8PORT POE+ T8508/01191-002 AXIS
  • Switch type: Managed
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Switching capacity: 20
Врз основа на 0 коментари. - Напиши коментар
33,252ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 232448
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 01191-002. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3at. Power over Ethernet (PoE)
  • Vendor Homepage: https://www.axis.com/products/axis-t8508-poe-network-switch/
  • Name: NET SWITCH 8PORT POE+ T8508/01191-002 AXIS
  • Category Code: SWI
  • Switch type: Managed
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Combo SFP ports quantity: 2
  • Networking standards: IEEE 802.1x/IEEE 802.3at
  • Switching capacity: 20
  • Throughput: 14.9
  • MAC address table: 8000
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
  • DHCP features: DHCP server
  • Product colour: Black
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • Power over Ethernet (PoE) power per port: 30
  • Total Power over Ethernet (PoE) budget: 130
  • Operating temperature (T-T): 0 - 50
  • Storage temperature (T-T): -10 - 70
  • Operating relative humidity (H-H): 10 - 90
  • Storage relative humidity (H-H): 5 - 95
  • Width: 220
  • Depth: 242
  • Height: 44
  • Weight: 2100
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01022
  • Unit Calculated Weight: 2.79
Specifications
AC input frequency50 - 60
AC input voltage100 - 240
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity2
Depth242
DHCP featuresDHCP server
Harmonized System (HS) code85176990
Height44
Jumbo frames9216
Jumbo frames supportYes
MAC address table8000
Networking standardsIEEE 802.1x/IEEE 802.3at
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 50
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port30
Power over Ethernet plus (PoE+) ports quantity8
Product colourBlack
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-10 - 70
SummaryAxis 01191-002. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3at. Power over Ethernet (PoE)
Throughput14.9
Total Power over Ethernet (PoE) budget130
Weight2100
Width220
Specs
Category CodeSWI
Description

AXIS T8508 PoE+ Network Switch is an 8-port managed Gigabit switch with a compact, fan-less design for installation in noise sensitive environments or to be used as an edge switch. AXIS T8508 is a perfect complement to Axis’ recorders to further simplify setup and installation of surveillance systems. The intuitive administrator interface offers a graphic topology for easy overview of all devices in the system with information about connected devices and status. The high PoE power output allows for connection of up to 8 PoE cameras.

  • 2 SFP/RJ45 Combination Ports; 30 W PoE per port, total 130 W; Gigabit switch; Intuitive graphic topology for system overview

NameNET SWITCH 8PORT POE+ T8508/01191-002 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/a04bf464-4eae-4524-b13d-79a9f66da83c.Jpeg
Switch typeManaged
Switching capacity20
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/a04bf464-4eae-4524-b13d-79a9f66da83c.Jpeg
Unit Calculated Volume0.01022
Unit Calculated Weight2.79
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-t8508-poe-network-switch/
