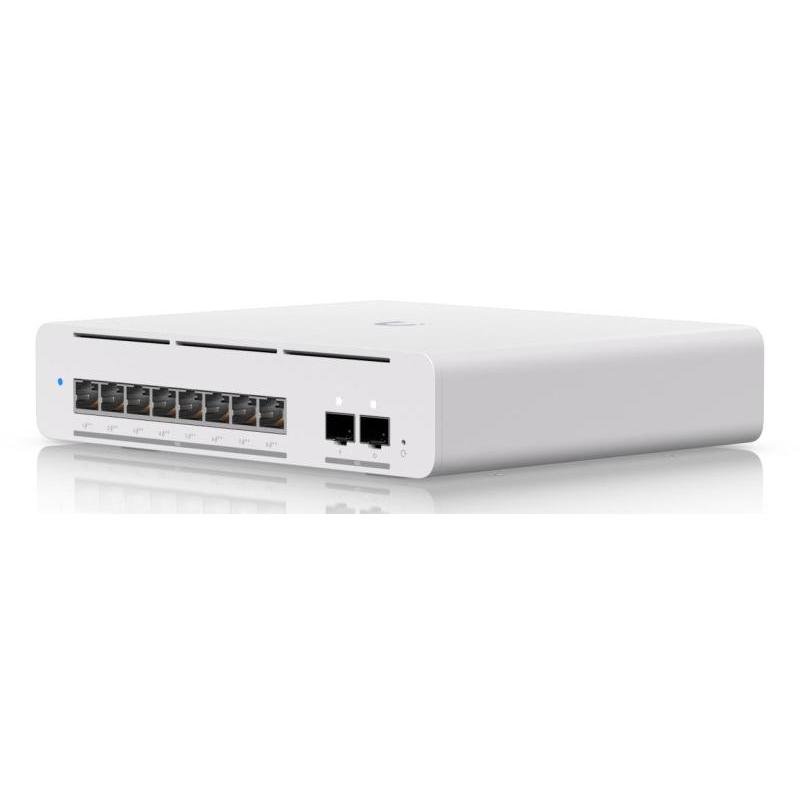

USW-PRO-XG-8-POE

Technical Specifications

• Summary: Ubiquiti UniFi Pro XG 8 PoE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 32000 entries, Switching capacity: 200 Gbit/s. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
• Vendor Homepage: https://eu.store.ui.com/eu/en/category/switching-utility/products/usw-pro-xg-8-poe
• Name: NET SWITCH PRO XG 8 POE/USW-PRO-XG-8-POE UBIQUITI
• Category Code: SWI
• Model: USW-PRO-XG-8-POE
• Model name: Pro XG 8 PoE
• Switch type: Managed
• Switch layer: L2/L3
• Quality of Service (QoS) support: Yes
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
• 10G Ethernet (copper) ports quantity: 8
• SFP+ module slots quantity: 2
• Power connector: DC-in jack
• 10G support: Yes
• Port mirroring: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• IPv4 routes: 12000
• Link aggregation: Yes
• Rate limiting: Yes
• VLAN support: Yes
• Virtual LAN features: Interface-based VLAN/Voice VLAN
• Number of VLANs: 1000
• Switching capacity: 200
• Throughput: 100
• Forwarding rate: 149
• MAC address table: 32000
• Static route: Yes
• Jumbo frames support: Yes
• Packet buffer memory: 2
• DHCP features: DHCP guarding/DHCP relay/DHCP server/DHCPv6 snooping
• IGMP snooping: Yes
• Loop protection: Yes
• Multicast support: Yes
• Product colour: Grey
• Housing material: SGCC
• Reset button: Yes
• LED indicators: System
• Wall mountable: Yes
• Power source: AC/DC
• Power supply included: Yes
• Power consumption (max): 220
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) type supported: PoE++ (4PPoE)
• Power over Ethernet 4PPoE (PoE++) ports quantity: 8
• Power over Ethernet (PoE) power per port: 15.4
• Total Power over Ethernet (PoE) budget: 155
• Operating temperature (T-T): -5 - 40
• Operating relative humidity (H-H): 10 - 90
• Width: 210.4
• Depth: 173.8
• Height: 43.7
• Weight: 1600
• Cables included: Power
• Manual: Yes
• Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)
• Units per Pallet: 0
• Unit Calculated Volume: 0.00225
• Unit Calculated Weight: 1.8
