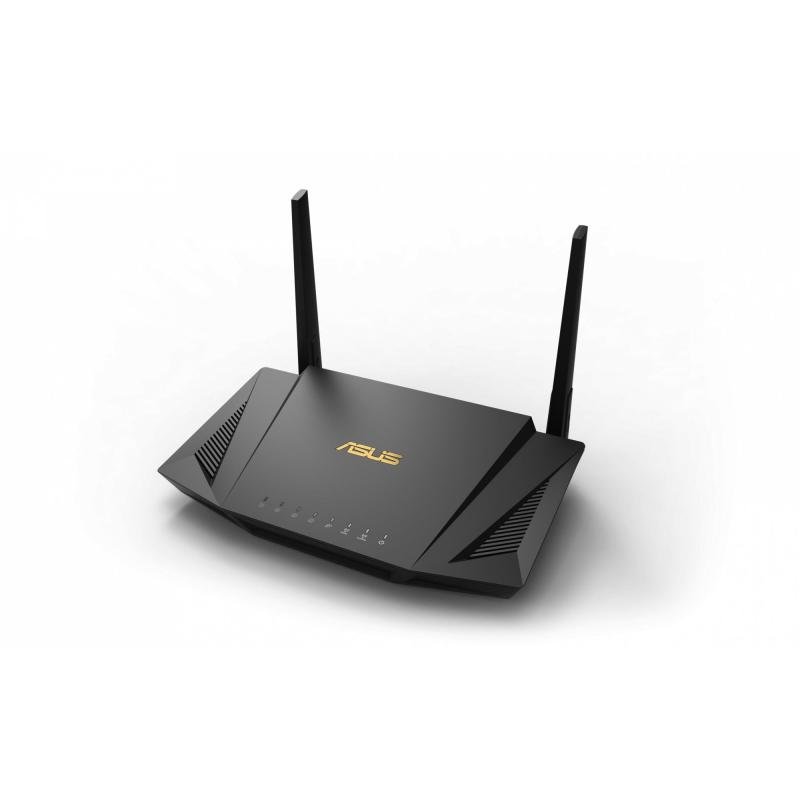

Tabletop router

Technical Specifications

• Summary: ASUS RT-AX56U. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1201 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: IPSec, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPS, Firewall security: SPI intrusion detection, DoS protection. Management protocols: UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System...
• Vendor Homepage: https://www.asus.com/Networking/RT-AX56U/
• Name: WRL ROUTER 1800MBPS 1000M 4P/DUAL BAND RT-AX56U ASUS
• Category Code: WRO
• Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• WLAN data transfer rate (max): 1201
• Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
• WLAN data transfer rate (first band): 574
• WLAN data transfer rate (second band): 1201
• High power: Yes
• Ethernet WAN: Yes
• WAN connection type: RJ-45
• Ethernet LAN: Yes
• Ethernet LAN interface type: Gigabit Ethernet
• Ethernet LAN data rates: 10/100/1000
• Cabling technology: 10/100/1000Base-T(X)
• Networking standards: IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
• Port forwarding: Yes
• Port triggering: Yes
• Dynamic DNS (DDNS): Yes
• Printer server: Yes
• VPN server: PPTP Server, OpenVPN Server, IPSec server
• VPN support: IPSec server PPTP server OpenVPN server PPTP client L2TP client OpenVPN client
• Ethernet LAN (RJ-45) ports: 4
• USB port: Yes
• USB 2.0 ports quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• DC-in jack: Yes
• Web-based management: Yes
• Bandwidth control: Yes
• Quality of Service (QoS) support: Yes
• Reset button: Yes
• WPS push button: Yes
• Security algorithms: IPSEC/WPA/WPA2/WPA2-Enterprise/WPA3/WPA-Enterprise/WPS
• Firewall: Yes
• Firewall security: SPI intrusion detection, DoS protection
• Guest access: Yes
• DoS attack prevention: Yes
• Parental control: Yes
• Filtering: Yes
• URL filtering: Yes
• System event log: Yes
• Universal Plug and Play (UPnP): Yes
• Management protocols: UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log
• Product colour: Black
• LED indicators: LAN,Power,WAN,WLAN
• On/off switch: Yes
• Product type: Tabletop router
• Cables included: LAN (RJ-45)
• AC adapter included: Yes
• Warranty card: Yes
• Quick start guide: Yes
• Antenna design: External
• Antennas quantity: 2
• Built-in processor: Yes
• Processor frequency: 1500
• Processor cores: 4
• Internal memory: 512
• Flash memory: 256
• Firmware upgradeable: Yes
• Power source type: AC,DC
• AC input voltage: 110 - 240
• AC input frequency: 50 - 60
• Output voltage: 12
• Output current: 2
• External power adapter: Yes
• Windows operating systems supported: Windows 10/Windows 7/Windows 8
• Mac operating systems supported: Mac OS X 10.6 Snow Leopard/Mac OS X 10.7 Lion/Mac OS X 10.8 Mountain Lion/Mac OS X 10.9 Mavericks
• Mobile operating systems supported: Android/iOS 10.0/iOS 11.0/iOS 11.4/iOS 12/iOS 13/iOS 9.0/iOS 9.1/iOS 9.2/iOS 9.3
• Mac compatibility: Yes
• Depth: 129.3
• Height: 47.5
• Weight: 456
• Width: 223.5
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.007404
• Unit Calculated Weight: 1.2
