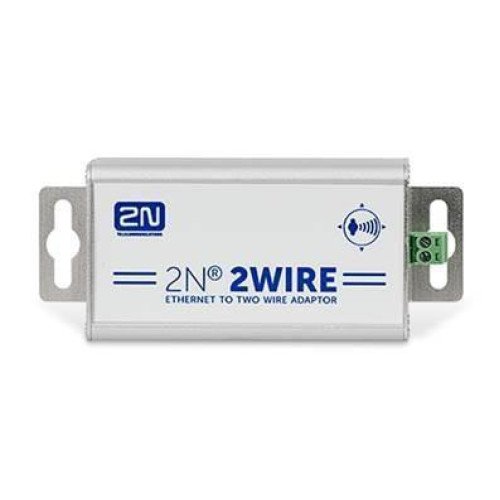

ADAPTER IP OVER 2 WIRES POE/MASONRY HELIOS IP 9159014US 2N

Technical Specifications

• Description:

  2N® 2Wire is a converter that allows you to connect any IP device in places without an IP infrastructure. You only need to use the existing cable wiring from a doorbell or telephone. What’s more, one cable is all you need for both data transfer and power supply. Set of 2 adaptors and power source for US
  Ethernet Connector type:            RJ45
  Speed:                                 10/100 Base T, half-duplex / full-duplex, auto-negotiation, IEEE 802.3af/at 40 W, PoE+ compatible
  Extension cable interface (2-wire/UTP) Cable type:         2-wire, Cat 5e, Cat 6 or similar
  Impedance:                        25 Ω to 100 Ω
  Transfer range:                 max. 220 m (720 ft) with Cat 6
  Access method:                CSMA/CA and TDMA
  Modulation method:      Windowed OFDM
  Frequency band:              1.8 MHz to 30 MHz
  LED indicator lights
  AC input:             100~240 VAC, 50~60 Hz
  DC output:          48 VDC / 0.84 A~1.3 A
  Material:              extruded aluminium


• Vendor Homepage: www.2n.cz/en_GB/products/intercoms/2n-2wire
• Name: ADAPTER IP OVER 2 WIRES POE/MASONRY HELIOS IP 9159014US 2N
• Category Code: NCC
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.002112
• Product Net Weight: 0.55
• Unit Calculated Weight: 0.63
