CABLE ACC CONNECTOR CAT6A/N420.66A AGINODE

Technical Specifications

• Description:

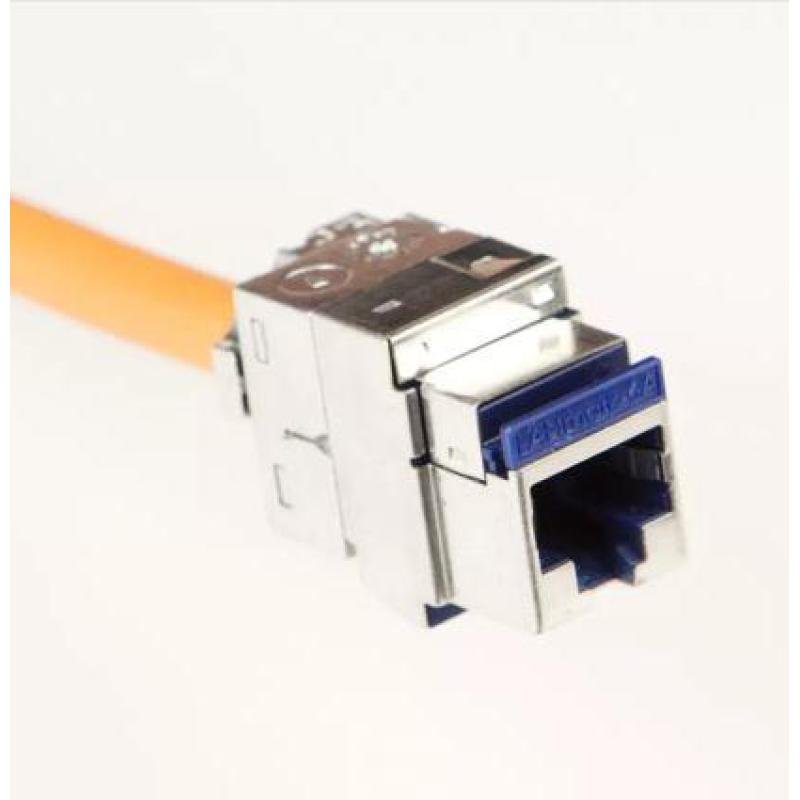

  LANmark-6A Evo Snap-In Connector Category 6A 500MHz Screened

  • High bandwidth RJ45 connector supporting 10 Gigabit Ethernet
  • Fully compliant with TIA and ISO Category 6A cabling and connector standards
  • Supports very short Category 6A channel configurations, often required in Data Centres
  • 360° shielding offering full Alien Crosstalk immunity
  • Fast and easy termination without punch down tool
  • Wiring according to colour code T568B or T568A
  • Accepts solid wire from 24 to 22 AWG
  • Stranded version available for CP to TO links (N420.67A)
  • Reterminable
  • Supports PoE++ Type 4 applications delivering up to 90W/71W (IEEE 802.3bt)
  • An adapter can be added to fit the keystone format
  • UL listed

• Vendor Homepage: www.aginode.net/products/data-network-solutions/copper-lan-systems/connectors/lanmark-6a-snap-connector/lanmark-6a-evo-snap-connector-category-6a-500mhz-screened
• Name: CABLE ACC CONNECTOR CAT6A/N420.66A AGINODE
• Category Code: CBL
• Model: N420.66A
• Dimensions: 36.4 x 23.2 x 16.8 mm
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00252
• Product Net Weight: 0.2
• Unit Calculated Weight: 0.3
