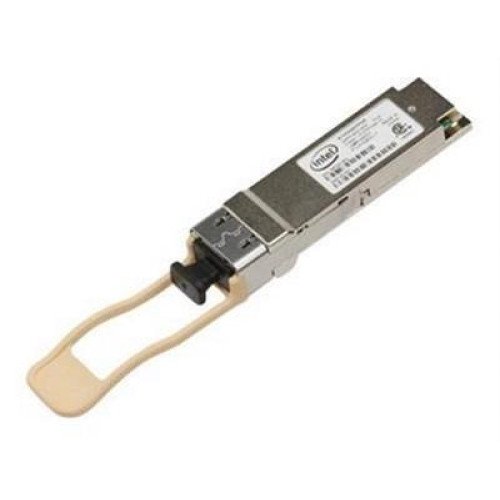

NET ACC TRANSCEIVER QSFP+/E40GQSFPSR 933911 INTEL

Technical Specifications

• Description:

  QSFP+ 40GBASE-SR4 Optics for Intel Ethernet Converged Network Adapters

  • Support for 40GBASE Ethernet
  • Hot-swappable 40 Gb I/O transceiver that plugs into a QSFP+ port
  • Supports the 4x10 GbE mode to connect to four 10GBASE-SR optical interfaces
  • Four channel, full duplex transceiver module
  • Single 1x12 MPO receptacle
  • Maximum power dissipation < 1.5 W
  • RoHS-6 compliant (lead-free)
  • Commercial temperature range 0-70 °C
  • Maximum link length 100m on OM3 MMF and 150m OM4 MMF
  • 1.06 Gb/s to 10.5 Gb/s per channel multi-rate capability
  • Compatible with Intel Ethernet Converged Network Adapters


• Vendor Homepage: http://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/ethernet-qsfp-optics-brief.pdf
• Name: NET ACC TRANSCEIVER QSFP+/E40GQSFPSR 933911 INTEL
• Category Code: MCO
• Unit Calculated Volume: 0.0002
• Product Net Weight: 0.06
• Unit Calculated Weight: 0.08
