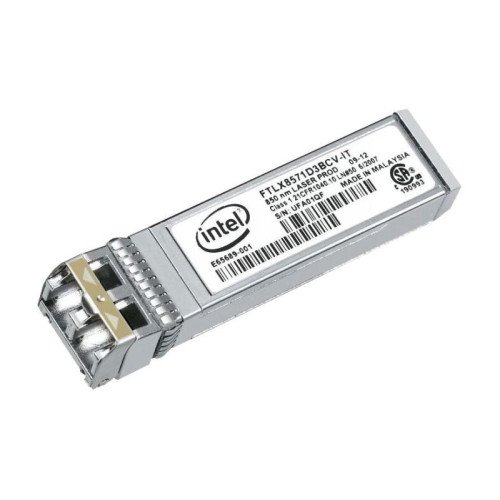

NET ACC TRANSCEIVER SFP+/E10GSFPSR 903239 INTEL

Technical Specifications

• Description:

  Intel Ethernet SFP+ SR Optics.
  • Hot-pluggable SFP+ footprint
  • Supports rate selectable 1.25 Gb/s or 9.95 to 10.3 Gb/s bit rates
  • Power dissipation < 1 W
  • RoHS-6 compliant (lead-free)
  • Commercial temperature range 0 °C to 70 °C
  • Single 3.3 Vdc power supply
  • Max. link length 300 m on 2000 MHZ-km MMF (SR)
  • Uncooled 850 nm VCSEL laser (SR)
  • Receiver limiting electrical interface
  • Duplex LC connector
  • Built-in digital diagnostic functions

• Vendor Homepage: http://www.intel.com/support/network/adapter/pro100/sb/CS-030612.htm
• Name: NET ACC TRANSCEIVER SFP+/E10GSFPSR 903239 INTEL
• Category Code: MCO
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0001625
• Product Net Weight: 0.035
• Unit Calculated Weight: 0.047
