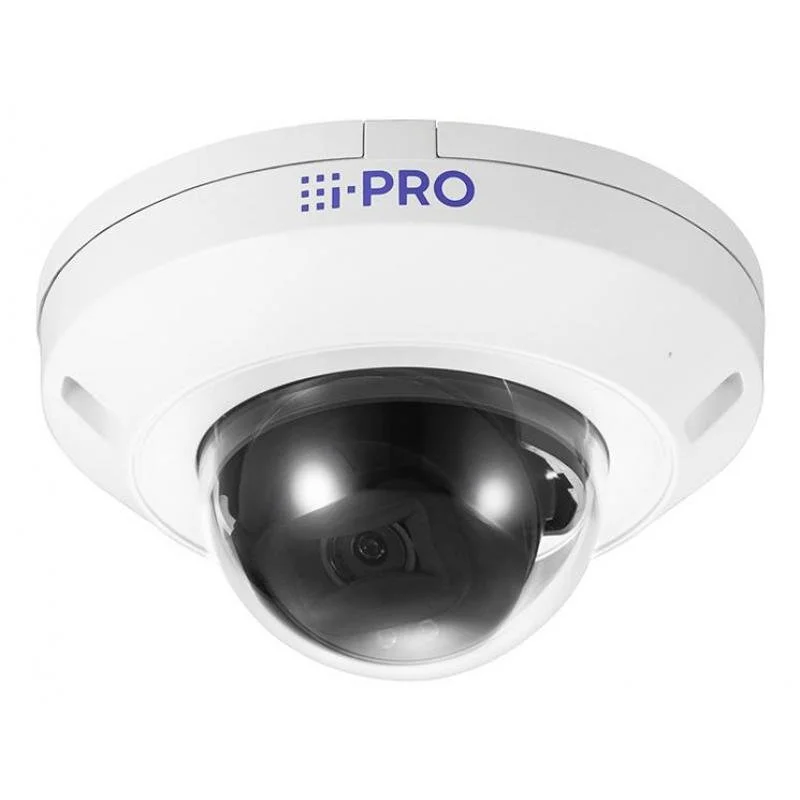

NET CAMERA 2MP DOME AI INDOOR/VANDAL WV-U22350-F3L I-PRO

Technical Specifications

• Summary: i-PRO WV-U22350-F3L. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.07 lx, Tilt angle range: -30 - 80°, Pan range: -175 - 175°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Digital zoom: 3x, Detect distance: 29.5 m, Observe distance: 11.8 m
• Vendor Homepage: https://i-pro.com/products_and_solutions/us-en/surveillance/products/wv-u22350-f3l
• Name: NET CAMERA 2MP DOME AI INDOOR/VANDAL WV-U22350-F3L I-PRO
• Category Code: FNC
• Model: WV-U22350-F3L
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: Black/White
• International Protection (IP) code: IP42
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor
• Alarm input/output: Yes
• Dynamic range: 102
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
• Number of languages: 9
• Certification: UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
• Minimum illumination: 0.07
• Tilt angle range: -30 - 80
• Pan range: -175 - 175
• White balance: ATW/AWC
• Camera shutter speed: 1/10000 - 16/30
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Digital zoom: 3
• Detect distance: 29.5
• Observe distance: 11.8
• Recognize distance: 5.9
• Focal length range: 3.2
• Identify distance: 2.9
• Night vision: Yes
• Night vision distance: 42
• LED type: IR
• Total megapixels: 2
• Video formats supported: H.264/H.265
• Frame rate: 30
• Back Light Compensation (BLC): Yes
• Bit rate control: Variable Bit Rate (VBR)
• Highlight Compensation (HLC): Yes
• Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UP
• Number of users: 14
• Streaming method: Multicast/Unicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Power source type: PoE
• Power consumption: 200
• Power consumption (typical): 9.6
• DC output voltage: 48
• Operating temperature (T-T): -10 - 50
• Operating relative humidity (H-H): 10 - 90
• Width: 109
• Depth: 109
• Height: 62
• Weight: 250
• Compliance certificates: cUL/Federal Communications Commission (FCC)/UL
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001734
• Unit Calculated Weight: 0.4
