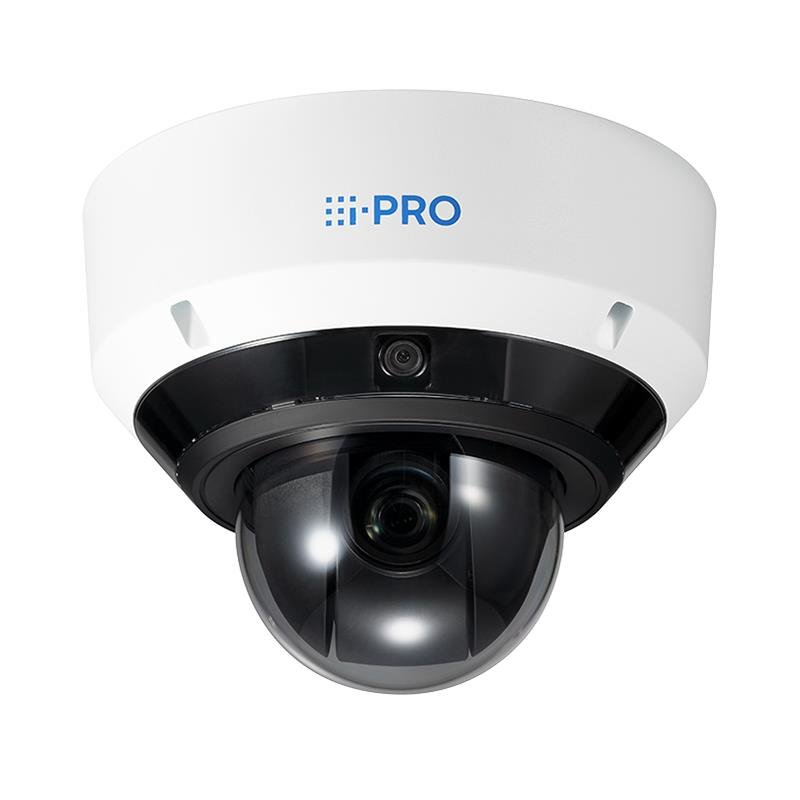

NET CAMERA 5MP DOME AI OUTDOOR/MULTI WV-X86530-Z2 I-PRO

NET CAMERA 5MP DOME AI OUTDOOR/MULTI WV-X86530-Z2 I-PRO
NET CAMERA 5MP DOME AI OUTDOOR/MULTI WV-X86530-Z2 I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
274,375ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 454009
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-X86530-Z2. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 3.7 - 77°, Lens viewing angle, vertical: 2.2 - 44°, Tilt angle range: -15 - 195°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 21x, Focal length range: 4 - 84.6 mm, Focus: Motorized
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-x86530-z2
  • Name: NET CAMERA 5MP DOME AI OUTDOOR/MULTI WV-X86530-Z2 I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • Protection features: Dust resistant/Water resistant
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • PTZ control: Yes
  • PTZ modes: Preset sequence
  • Auto-tracking: Yes
  • Auto pan mode: Yes
  • Auto patrol mode: Yes
  • Alarm input/output: Yes
  • Dynamic range: 144
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
  • Lens viewing angle, horizontal: 3.7 - 77
  • Lens viewing angle, vertical: 2.2 - 44
  • Tilt angle range: -15 - 195
  • Tilt manual speed: 0.065 - 150
  • Tilt preset speed: 500
  • Pan range: 0 - 360
  • Pan manual speed: 0.065 - 150
  • Pan preset speed: 500
  • White balance: AWC
  • Camera shutter speed: 1/4000 - 30
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 21
  • Focal length range: 4 - 84.6
  • Auto focus: Yes
  • Focus: Motorized
  • Detect distance (tele): 1188.9
  • Detect distance (wide): 48.3
  • Identify distance (tele): 118.9
  • Identify distance (wide): 4.8
  • Observe distance (tele): 475.5
  • Observe distance (wide): 19.3
  • Recognize distance (tele): 237.8
  • Recognize distance (wide): 9.7
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Video formats supported: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/320 x 180/640 x 360
  • Frame rate: 60
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Image quality adjustment: Brightness
  • Privacy masking: Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.3bt
  • Supported network protocols: IPv6TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X *5, DiffServ, LLDP, MQTT
  • Number of users: 24
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Video motion detection: Yes
  • Web browser: Yes
  • Power source type: DC,PoE
  • DC output voltage: 54
  • DC output current: 0.66
  • Operating temperature (T-T): -40 - 55
  • Operating relative humidity (H-H): 10 - 100
  • Mobile operating systems supported: Android/iOS
  • Height: 195
  • Diameter: 250
  • Weight: 3800
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00608
  • Unit Calculated Weight: 4.2
Specifications
Alarm input/outputYes
Audio formats supportedAAC-LC/G.711/G.726
Auto focusYes
Auto pan modeYes
Auto patrol modeYes
Auto-trackingYes
Back Light Compensation (BLC)Yes
Camera shutter speed1/4000 - 30
Card reader integratedYes
Compatible memory cardsMicroSDXC
Connectivity technologyWired
DC output current0.66
DC output voltage54
Detect distance (tele)1188.9
Detect distance (wide)48.3
Diameter250
Dynamic range144
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range4 - 84.6
FocusMotorized
Form factorDome
Frame rate60
Height195
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)
Identify distance (tele)118.9
Identify distance (wide)4.8
IK codeIK10
Image quality adjustmentBrightness
International Protection (IP) codeIP66, IP67
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Spanish
Lens viewing angle, horizontal3.7 - 77
Lens viewing angle, vertical2.2 - 44
Maximum memory card size512
Maximum resolution1920 x 1080
Microphone inYes
Mobile operating systems supportedAndroid/iOS
Mounting typeCeiling
Networking standardsIEEE 802.3bt
Number of cameras1
Number of sensors1
Number of users24
Observe distance (tele)475.5
Observe distance (wide)19.3
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 55
Optical sensor size1/2.8
Optical zoom21
Pan manual speed0.065 - 150
Pan preset speed500
Pan range0 - 360
Placement supportedIndoor
Power source typeDC,PoE
Privacy maskingYes
Product colourWhite
Protection featuresDust resistant/Water resistant
PTZ controlYes
PTZ modesPreset sequence
Recognize distance (tele)237.8
Recognize distance (wide)9.7
Sensor typeCMOS
Summaryi-PRO WV-X86530-Z2. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 3.7 - 77°, Lens viewing angle, vertical: 2.2 - 44°, Tilt angle range: -15 - 195°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 21x, Focal length range: 4 - 84.6 mm, Focus: Motorized
Supported graphics resolutions1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/320 x 180/640 x 360
Supported network protocolsIPv6TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X *5, DiffServ, LLDP, MQTT
Tilt angle range-15 - 195
Tilt manual speed0.065 - 150
Tilt preset speed500
Total megapixels2
TypeIP security camera
Video formats supportedH.264/H.265/M-JPEG
Video motion detectionYes
Web browserYes
Weight3800
White balanceAWC
Zoom capabilityYes
Specs
Category CodeFNC
Description

3 x 5MP Outdoor Multi-directional + 2MP(1080p) 21x PTZ Network Camera with AI Engine

  • 3 x 5MP multi-directional camera + 2MP 21x PTZ camera​
  • Discreet design​
  • Up to 6 Edge AI analytic apps​
  • AI auto tracking​
  • No calibration required​
  • Pan/Tilt speed up to 500 deg/s​
  • IP66, IP67, IK10 rated​
  • Bulit-in FIPS 140-2 Level 3 certified SecureElement​
  • NDAA compliant

NameNET CAMERA 5MP DOME AI OUTDOOR/MULTI WV-X86530-Z2 I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/7d5dddcd-4512-4b7d-b51f-bc5d18c85e15.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/7d5dddcd-4512-4b7d-b51f-bc5d18c85e15.Jpeg
Unit Calculated Volume0.00608
Unit Calculated Weight4.2
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/wv-x86530-z2
