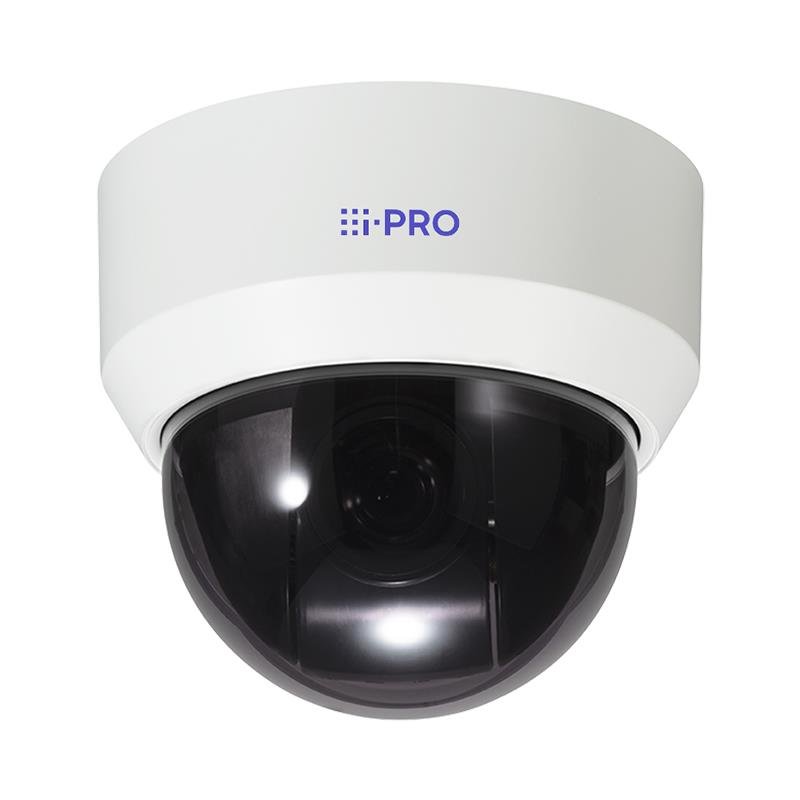

NET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S65302-Z2G I-PRO

Technical Specifications

• Summary: i-PRO WV-S65302-Z2G. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, Form factor: Dome. Minimum illumination: 0.0011 lx, Lens viewing angle, horizontal: 2.9 - 58°, Lens viewing angle, vertical: 2.2 - 44°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 5.57 x 3.13 pixels. Optical zoom: 21x, Focal length range: 4 - 86.4 mm, Focus: Motorized
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s65302-z2g
• Name: NET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S65302-Z2G I-PRO
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: Black
• Housing material: Aluminium/Polycarbonate (PC)/Stainless steel
• Protection features: Wind resistant
• International Protection (IP) code: IP66
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• PTZ modes: Preset point
• Auto-tracking: Yes
• Auto pan mode: Yes
• Auto patrol mode: Yes
• Preset points: Yes
• Alarm input/output: Yes
• Dynamic range: 144
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
• Number of languages: 9
• Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
• Camera tilt control: Yes
• Minimum illumination: 0.0011
• Lens viewing angle, horizontal: 2.9 - 58
• Lens viewing angle, vertical: 2.2 - 44
• Tilt angle range: -15 - 195
• Tilt preset speed: 500
• Tilt speed: 150
• Pan range: 0 - 360
• Pan preset speed: 500
• Pan speed: 150
• White balance: ATW/AWC
• Camera shutter speed: 1/60 - 1/10000
• Number of Privacy masking areas: 32
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Number of effective pixels (H x V): 5.57 x 3.13
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 21
• Number of lenses: 1
• Focal length range: 4 - 86.4
• Auto focus: Yes
• Focus: Motorized
• Maximum aperture number: 2.5
• Minimum aperture number: 1.3
• Closest focusing distance: 1.5
• Detect distance (tele): 1293.8
• Detect distance (wide): 51.9
• Identify distance (tele): 129.4
• Identify distance (wide): 5.2
• Observe distance (tele): 517.5
• Observe distance (wide): 20.8
• Recognize distance (tele): 258.8
• Recognize distance (wide): 10.4
• Night vision: Yes
• Maximum resolution: 2048 x 1536
• Total megapixels: 2
• Video formats supported: H.264/H.265/M-JPEG
• Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/320 x 288 (QVGA)/640 x 360/640 x 480 (VGA)
• Frame rate: 60
• Noise reduction: Yes
• Gain control type: Auto
• Back Light Compensation (BLC): Yes
• Bit rate control: Constant Bit Rate (CBR),Variable Bit Rate (VBR)
• Highlight Compensation (HLC): Yes
• Image stabilizer: Yes
• Privacy masking: Yes
• Text caption overlay: Yes
• Audio formats supported: AAC-LC/G.711/G.726
• Audio detection: Yes
• Bit rate range: 16 - 128
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.3af/IEEE 802.3at
• Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
• Number of users: 14
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Alert notification type: E-mail
• Digest authentication: Yes
• HTTPS encryption: Yes
• Intelligent Video Surveillance (IVS) system features: Face detection/Scene change/Vehicle detection
• Security algorithms: FIPS 140-2
• Video motion detection: Yes
• Web browser: Yes
• Power source type: DC,PoE
• Power consumption: 1300
• Power consumption (max): 15.6
• Power consumption (Power over Ethernet (PoE)): 18.4
• Operating temperature (T-T): -30 - 55
• Operating relative humidity (H-H): 10 - 100
• Mobile operating systems supported: iOS 8.0
• Width: 165
• Depth: 165
• Height: 153
• Weight: 1700
• Compliance certificates: National Defense Authorization Act (NDAA)
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01
• Unit Calculated Weight: 2.4
