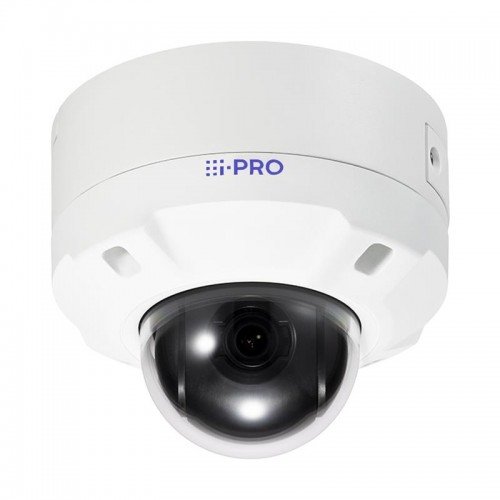

NET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-U65300-ZY I-PRO

Technical Specifications

• Summary: i-PRO U series PTZ camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0003 lx, Lens viewing angle, horizontal: 113°, Lens viewing angle, vertical: 60°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3.1x, Digital zoom: 49.6x, Focal length range: 2.9 - 9 mm
• Vendor Homepage: https://i-pro.com/products_and_solutions/us-en/surveillance/products/wv-u65300-zy
• Name: NET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-U65300-ZY I-PRO
• Category Code: FNC
• Model: WV-U65300-ZY
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)
• Protection features: Dust resistant/Water resistant/Wind resistant
• International Protection (IP) code: IP66
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• PTZ modes: Preset sequence
• Auto pan mode: Yes
• Auto patrol mode: Yes
• Preset points: Yes
• Dynamic range: 144
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.0003
• Lens viewing angle, horizontal: 113
• Lens viewing angle, vertical: 60
• Tilt angle range: 0 - 90
• Tilt manual speed: 0.065 - 150
• Tilt preset speed: 150
• Pan range: 0 - 350
• Pan manual speed: 0.065 - 150
• Pan preset speed: 150
• White balance: ATW/AWC
• Camera shutter speed: 1/4000 - 16/30
• Number of Privacy masking areas: 32
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 3.1
• Digital zoom: 49.6
• Focal length range: 2.9 - 9
• Auto focus: Yes
• Maximum aperture number: 1.3
• Detect distance (tele): 118.2
• Detect distance (wide): 25.4
• Identify distance (tele): 11.8
• Identify distance (wide): 2.5
• Normal focusing range: 0.3
• Observe distance (tele): 47.3
• Observe distance (wide): 10.2
• Recognize distance (tele): 23.6
• Recognize distance (wide): 5.1
• Maximum resolution: 2048 x 1536
• Total megapixels: 2
• Video formats supported: H.264/H.265/M-JPEG
• Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/640 x 360
• Supported video modes: 1080p
• Video recording: Yes
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Image quality adjustment: Brightness
• Audio formats supported: AAC-LC/ADPCM/G.711/G.726
• Audio detection: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.1x
• Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, NMPv1/v2/v3, UPnP
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Fiber optic connector: RJ-45
• Alarm input channels: 3
• Alert notification type: E-mail
• Intelligent Video Surveillance (IVS) system features: Scene change
• Security algorithms: FIPS 140-2/HTTPS
• Video motion detection: Yes
• Web browser: Yes
• Power source type: DC,PoE
• Power consumption: 890
• Power consumption (typical): 10.7
• Power consumption (Power over Ethernet (PoE)): 12
• DC output voltage: 12
• Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
• Operating temperature (T-T): -30 - 55
• Storage temperature (T-T): -30 - 60
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 10 - 95
• Mobile operating systems supported: Android/iOS/iOS 8.0/iPadOS
• Height: 134
• Diameter: 155
• Weight: 1600
• Compliance certificates: cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL
• Number of cameras: 1
• Audio input: 3.5mm
• Audio output: 3.5mm
• Browser supported: Microsoft Edge, Firefox, Google Chrome
• Data transfer rate: 100
• Number of simultaneous users: 14
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001734
• Unit Calculated Weight: 2
