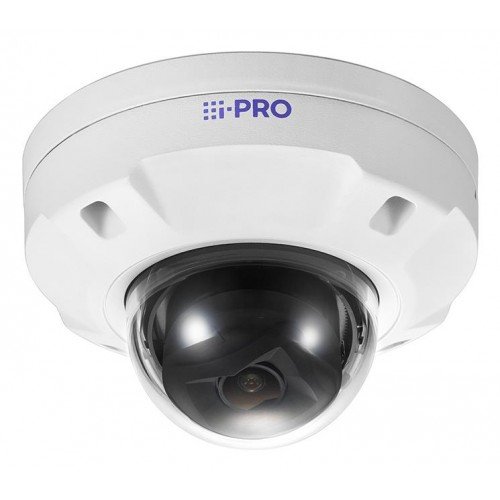

NET CAMERA 5MP DOME AI OUTDOOR/VANDAL WV-U25551-V3L I-PRO

Technical Specifications

• Summary: i-PRO WV-U25551-V3L. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.07 lx, Tilt angle range: -30 - 85°, Pan range: -105 - 255°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3.2x, Digital zoom: 12.8x, Focal length range: 3.2 - 10.2 mm
• Vendor Homepage: https://i-pro.com/products_and_solutions/us-en/surveillance/products/wv-u25551-v3l
• Name: NET CAMERA 5MP DOME AI OUTDOOR/VANDAL WV-U25551-V3L I-PRO
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: Black/White
• Housing material: Aluminium/Polycarbonate (PC)
• Protection features: Corrosion resistant
• International Protection (IP) code: IP66
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Day/night mode: Yes
• Alarm input/output: Yes
• Dynamic range: 120
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
• Number of languages: 9
• Certification: UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
• Minimum illumination: 0.07
• Tilt angle range: -30 - 85
• Pan range: -105 - 255
• White balance: ATW/AWC
• Camera shutter speed: 1/10000 - 1/30
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Optical zoom: 3.2
• Digital zoom: 12.8
• Focal length range: 3.2 - 10.2
• Focus: Motorized
• Maximum aperture number: 3.2
• Minimum aperture number: 1.6
• Detect distance (tele): 205.4
• Detect distance (wide): 43.7
• Identify distance (tele): 20.5
• Identify distance (wide): 4.4
• Normal focusing range: 2
• Observe distance (tele): 82.1
• Observe distance (wide): 17.5
• Recognize distance (tele): 41.1
• Recognize distance (wide): 8.7
• Night vision: Yes
• Night vision distance: 28
• LED type: IR
• Maximum resolution: 2560 x 1440
• Total megapixels: 5
• Video formats supported: H.264/H.265
• Frame rate: 30
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Image quality adjustment: Automatic gain control (AGC)
• Audio formats supported: AAC-LC/G.711/G.726
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UP
• Number of users: 14
• Streaming method: Multicast/Unicast
• Card reader integrated: Yes
• Compatible memory cards: Memory Stick (MS)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Alert notification type: E-mail
• Security algorithms: FIPS 140-3
• Video motion detection: Yes
• Web browser: Yes
• Behavior analysis: Scene change detection
• Power source type: PoE
• Power consumption: 200
• Power consumption (typical): 9.6
• DC output voltage: 48
• Operating temperature (T-T): -30 - 50
• Storage temperature (T-T): -20 - 50
• Operating relative humidity (H-H): 10 - 100
• Mobile operating systems supported: Android/iOS
• Width: 154
• Depth: 154
• Height: 105
• Weight: 1000
• Compliance certificates: cUL/National Defense Authorization Act (NDAA)/UL
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001734
• Unit Calculated Weight: 1.5
