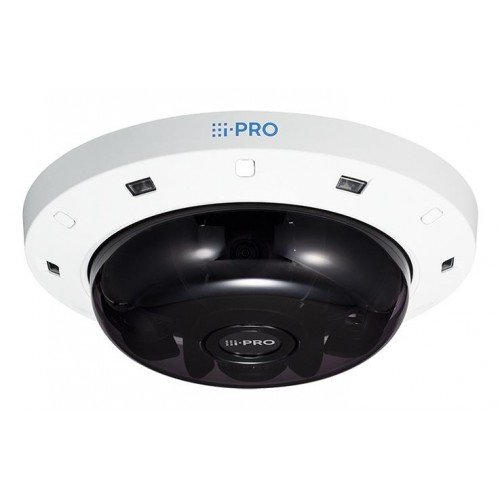

NET CAMERA 4MP DOME AI OUTDOOR/VANDAL WV-S8544LG I-PRO

Technical Specifications

• Summary: i-PRO Industry thinnest multi-directional cameras with AI Engine. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.021 lx, Tilt angle range: 10 - 105°, Pan range: -125 - 125°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Optical zoom: 2.5x, Focal length range: 2.9 - 7.3 mm, Normal focusing range: 1 m
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s8544lg
• Name: NET CAMERA 4MP DOME AI OUTDOOR/VANDAL WV-S8544LG I-PRO
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)/Stainless steel
• Protection features: Corrosion resistant/Wind resistant
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Dynamic range: 108
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.021
• Tilt angle range: 10 - 105
• Pan range: -125 - 125
• White balance: ATW/AWC
• Camera shutter speed: 1/10000 - 16/30
• Number of Privacy masking areas: 8
• Number of sensors: 4
• Optical sensor size: 1/2.7
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 2.5
• Focal length range: 2.9 - 7.3
• Auto focus: Yes
• Detect distance (tele): 136.5
• Detect distance (wide): 45.1
• Identify distance (tele): 13.6
• Identify distance (wide): 4.5
• Normal focusing range: 1
• Observe distance (tele): 54.6
• Observe distance (wide): 18
• Recognize distance (tele): 27.3
• Recognize distance (wide): 9
• Night vision: Yes
• Night vision distance: 15
• LED type: IR
• Maximum resolution: 2688 x 1520
• Total megapixels: 16
• Video formats supported: H.264/H.265/M-JPEG
• Supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2560 x 1440/2688 x 1520/320 x 180/640 x 360
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Image quality adjustment: Brightness
• Image stabilizer: Yes
• Audio detection: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet/Gigabit Ethernet
• Networking standards: IEEE 802.1x/IEEE 802.3at
• Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, MQTT IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGM
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Fiber optic connector: RJ-45
• Alarm input channels: 3
• Intelligent Video Surveillance (IVS) system features: Face detection/Human detection/Scene change/Vehicle detection
• Security algorithms: FIPS 140-2/HTTPS
• Video motion detection: Yes
• Power source type: PoE+
• Power consumption: 320
• Power consumption (Power over Ethernet (PoE)): 17.3
• Operating temperature (T-T): -40 - 60
• Storage temperature (T-T): -30 - 60
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 10 - 95
• Height: 90
• Diameter: 300
• Weight: 3300
• Compliance certificates: CE/cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL
• Number of cameras: 1
• Audio input: 3.5mm
• Audio output: 3.5 mm
• Browser supported: Microsoft Edge, Firefox, Google Chrome
• Compatibility: iPad, iPhone, Android
• Data transfer rate: 1000
• Number of simultaneous users: 24
• Unit Calculated Volume: 0.0219
• Unit Calculated Weight: 4
