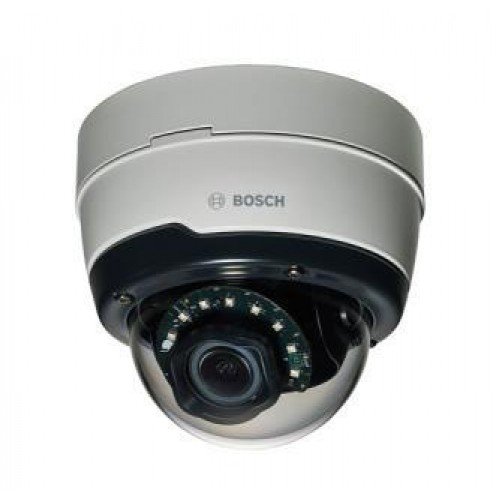

NET CAMERA 5MP IP DOME/NDE-5503-AL BOSCH

Technical Specifications

• Summary: Bosch FLEXIDOME IP 5000i IR. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 330°, Lens viewing angle, horizontal: 92°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Focus: Motorized
• Vendor Homepage: https://www.boschsecurity.com/
• Name: NET CAMERA 5MP IP DOME/NDE-5503-AL BOSCH
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: Black/White
• Housing material: Aluminium
• Protection features: Impact resistant
• International Protection (IP) code: IP66
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Alarm input/output: Yes
• Certification: IEC 62471, EN 60950-1, UL 60950-1, UL 60950-22, CAN/CSA-C22.2 NO. 60950-1-03, CAN/CSA-C22.2 NO. 60950-22, EN 50130-4, EN 50130-5, EMC, EN 55032 class B, EN 55024, AS/NZS CISPR 32, ICES-003 Class B, VCCI J55022 V2/V3, EN 50121-4, EN 60950-22, EN 50132-5-2,
• Minimum illumination: 0.03
• Angle of rotation: 330
• Lens viewing angle, horizontal: 92
• Lens viewing angle, vertical: 50
• Tilt angle range: 0 - 130
• Pan range: 0 - 350
• White balance: Manual/Sodium lamp
• Optical sensor size: 1/2.9
• Sensor type: CMOS
• Zoom capability: Yes
• Focus: Motorized
• Night vision: Yes
• Night vision distance: 30
• LED type: IR
• Number of illumination LEDs: 10
• Maximum resolution: 3072 x 1728
• Total megapixels: 5
• Video compression formats: H.264/H.265/HEVC/M-JPEG
• Supported graphics resolutions: 1280 x 1024 (SXGA)/1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2304 x 1296/2688 x 1512/3072 x 1728/320 x 240/640 x 480 (VGA)
• Frame rate: 30
• Analog signal format system: NTSC
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Flip & mirror: Yes
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
• Privacy masking: Yes
• Region of Interest (ROI) encoding: Yes
• Audio formats supported: G.711/LC-AAC
• Sample rate: 16
• Signal-to-Noise Ratio (SNR): 55
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u
• Supported network protocols: NDE-5503-A Festst. Domek. 5MP HDR 3-10mm auto IP66 - Einfache Montage mit Autozoom-/Autofokus-Objektiv, Assistenten und vorkonfigurierten Modi - Vollständig konfigurierbares H.265-Multi-Streaming - 5 MP Auflösung mit einer Bildqualität von bis zu 30
• Card reader integrated: Yes
• Compatible memory cards: MicroSDHC/MicroSDXC
• Ethernet LAN (RJ-45) ports: 1
• Digital watermark: Yes
• Security algorithms: 128-bit AES/256-bit AES
• Web-based management: Yes
• Web browser: Yes
• Firmware upgradeable: Yes
• Power source type: PoE
• Power consumption (max): 7.15
• Power consumption (Power over Ethernet (PoE)): 7
• DC output voltage: 30
• Operating temperature (T-T): -40 - 50
• Storage temperature (T-T): -40 - 70
• Height: 131
• Diameter: 145
• Weight: 1102
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.008106
• Unit Calculated Weight: 1.6
