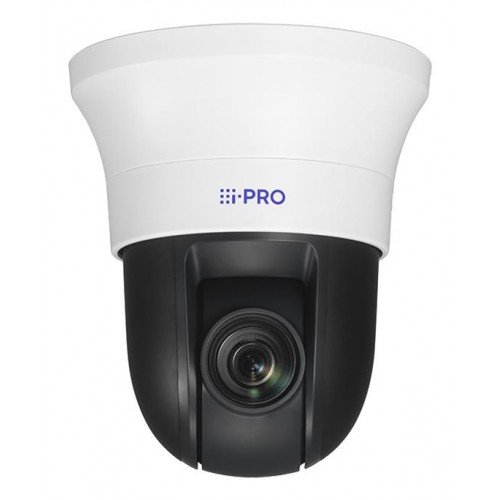

NET CAMERA 6MP PTZ AI INDOOR/WV-S61602-Z3 I-PRO

Technical Specifications

• Summary: i-PRO WV-S61602-Z3. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.1 lx, Lens viewing angle, horizontal: 2.5 - 62°, Lens viewing angle, vertical: 1.4 - 37°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 30x, Digital zoom: 480x, Focal length range: 4.5 - 135 mm
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s61602-z3
• Name: NET CAMERA 6MP PTZ AI INDOOR/WV-S61602-Z3 I-PRO
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: Black/White
• Housing material: Acrylonitrile butadiene styrene (ABS)/Aluminium
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor
• PTZ control: Yes
• Auto-tracking: Yes
• Auto pan mode: Yes
• Auto patrol mode: Yes
• Dynamic range: 132
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish/Traditional Chinese
• Minimum illumination: 0.1
• Lens viewing angle, horizontal: 2.5 - 62
• Lens viewing angle, vertical: 1.4 - 37
• Tilt angle range: -25 - 90
• Tilt manual speed: 0.065 - 150
• Tilt preset speed: 350
• Pan range: 0 - 350
• Pan manual speed: 0.065 - 150
• Pan preset speed: 500
• White balance: ATW/AWC
• Camera shutter speed: 1/4000
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Optical zoom: 30
• Digital zoom: 480
• Number of lenses: 1
• Focal length range: 4.5 - 135
• Detect distance (tele): 3050.4
• Detect distance (wide): 110.8
• Identify distance (tele): 305
• Identify distance (wide): 11.1
• Normal focusing range: 3
• Observe distance (tele): 1220.2
• Observe distance (wide): 44.3
• Recognize distance (tele): 610.1
• Recognize distance (wide): 22.2
• Maximum resolution: 3328 x 1872
• Total megapixels: 6
• Video compression formats: H.264/H.265
• Frame rate: 30
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Image stabilizer: Yes
• Audio detection: Yes
• Ethernet LAN: Yes
• Number of users: 14
• Compatible memory cards: MicroSD (TransFlash)/SDHC/SDXC
• Ethernet LAN (RJ-45) ports: 1
• HTTPS encryption: Yes
• Video motion detection: Yes
• Behavior analysis: Scene change detection
• Power source type: PoE+,DC
• Operating temperature (T-T): -10 - 50
• Operating relative humidity (H-H): 10 - 90
• Height: 214
• Diameter: 185
• Weight: 1800
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01
• Unit Calculated Weight: 2.3
