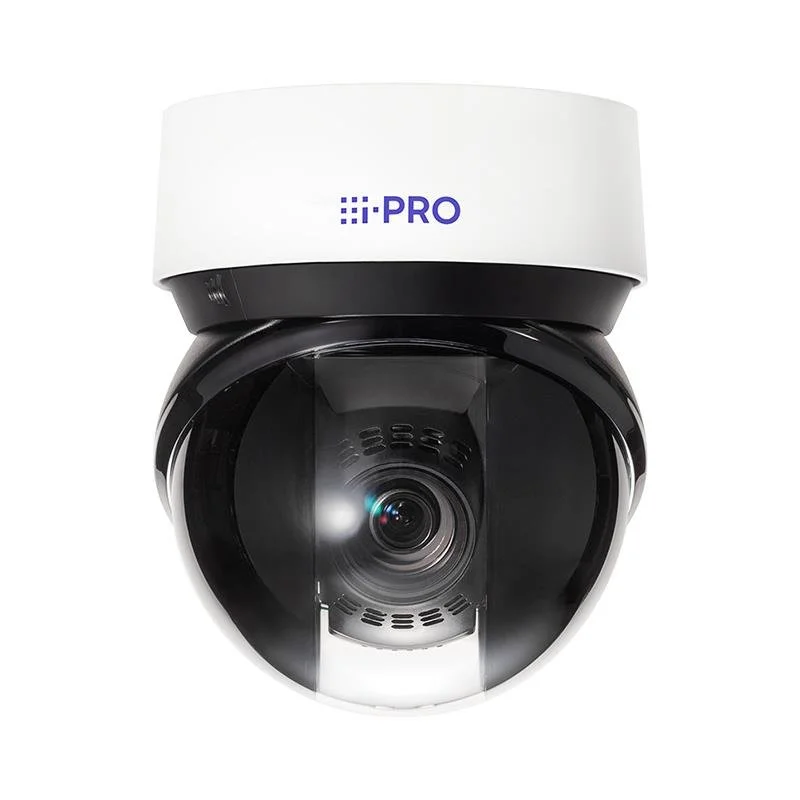

NET CAMERA 6MP PTZ AI OUTDOOR/VANDAL WV-S66600-Z3 I-PRO

Technical Specifications

• Summary: i-PRO WV-S66600-Z3. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Spherical. Angle of rotation: 360°, Tilt angle range: -20 - 90°, Tilt speed: 150 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 30x, Focal length range: 4.5 - 135 mm, Detect distance (wide): 110.8 m
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s66600-z3
• Name: NET CAMERA 6MP PTZ AI OUTDOOR/VANDAL WV-S66600-Z3 I-PRO
• Category Code: FNC
• Form factor: Spherical
• Mounting type: Ceiling
• Product colour: Black/White
• Housing material: Aluminium/Polycarbonate (PC)
• International Protection (IP) code: IP66
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• PTZ modes: Auto pan/Preset point
• Auto-tracking: Yes
• Auto pan mode: Yes
• Auto patrol mode: Yes
• Preset points: Yes
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
• Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035 NEMA-TS2
• Camera pan control: Yes
• Camera tilt control: Yes
• Angle of rotation: 360
• Tilt angle range: -20 - 90
• Tilt preset speed: 500
• Tilt speed: 150
• Pan preset speed: 700
• Pan speed: 150
• White balance: ATW/AWC
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Optical zoom: 30
• Focal length range: 4.5 - 135
• Detect distance (tele): 3050.4
• Detect distance (wide): 110.8
• Identify distance (tele): 305
• Identify distance (wide): 11.1
• Observe distance (tele): 1220.2
• Observe distance (wide): 44.3
• Recognize distance (tele): 610.1
• Recognize distance (wide): 22.2
• Maximum resolution: 3328 x 1872
• Total megapixels: 6
• Video formats supported: H.264/H.265
• Frame rate: 30
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Image stabilizer: Yes
• Audio formats supported: AAC-LC/G.711/G.726
• Built-in microphone: Yes
• Audio detection: Yes
• Ethernet LAN: Yes
• Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP
• Number of users: 14
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Alarm input channels: 3
• Intelligent Video Surveillance (IVS) system features: Face detection/Vehicle detection
• Security algorithms: FIPS 140-2
• Video motion detection: Yes
• Web browser: Yes
• Power source type: DC,PoE
• Power consumption: 700
• Power consumption (Power over Ethernet (PoE)): 37.8
• DC output voltage: 54
• Operating temperature (T-T): -50 - 60
• Operating relative humidity (H-H): 10 - 100
• Height: 205
• Diameter: 167
• Weight: 3000
• Compliance certificates: National Defense Authorization Act (NDAA)
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.015
• Unit Calculated Weight: 4
